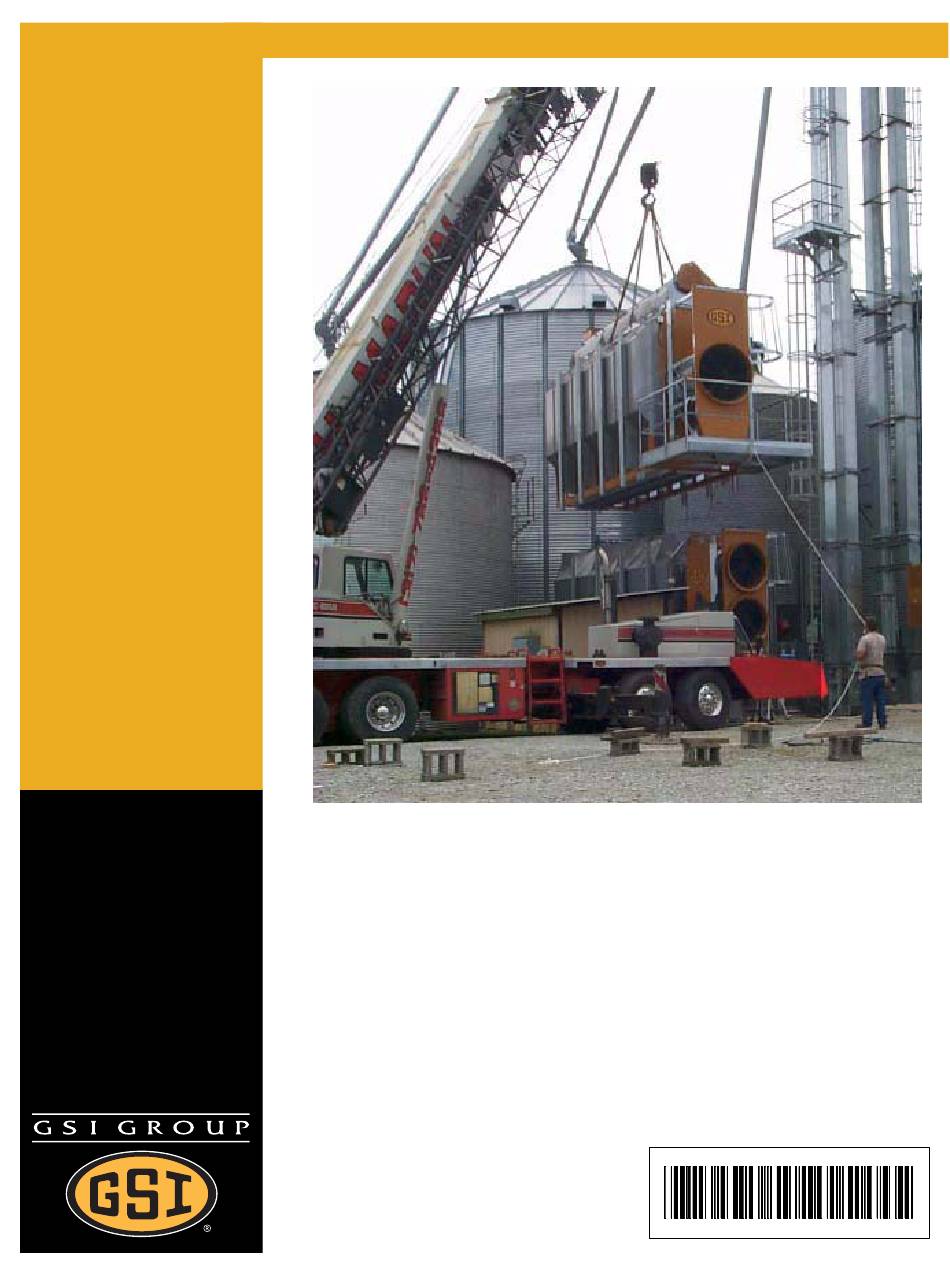

- Page 1 Multi - Module Dryer Stacking (Review of Stacking a Dryer) Installation Manual PNEG-902 Date: 07-26-07 PNEG-902...
- Page 2 PNEG-902 Multi - Module Dryer Stacking...
-
Page 3: Table Of Contents
Lifting Upper Module ........................13 Setting Upper Module in Place ......................14 Securing Upper Module ........................15 Chapter 4 Module Finishing ..........................16 Chapter 5 Ladder Cage Installation ......................... 17 Chapter 6 Warranty ............................19 PNEG-902 Multi - Module Dryer Stacking... -
Page 4: Chapter 1 Safety
CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage. NOTE indicates information about the equipment that you should pay special attention to. PNEG-902 Multi - Module Dryer Stacking... -
Page 5: Safety Instructions
Prepare for Emergencies Be prepared if fire starts. Keep a first aid kit and fire extinguisher handy. Keep emergency numbers for doctors, ambulance service, hospital, and fire department near your telephone. Keep Emergency Equipment Quickly Accessible PNEG-902 Multi - Module Dryer Stacking... - Page 6 Stay Clear of Hoisted Equipment Always use proper lifting/hoisting equipment when assembling or disassembling equipment. Do not walk or stand under hoisted equipment. Always use sturdy and stable supports when needed Crush Hazard for installation. PNEG-902 Multi - Module Dryer Stacking...
-
Page 7: Chapter 2 Stack Dryer Component Callout
2. Stack Dryer Component Callout Stacking a Network Dryer The following information is intended to help outline the steps required in stacking a Network Dryer. Figure 2A PNEG-902 Multi - Module Dryer Stacking... -
Page 8: Chapter 3 Module Preparation And Installation
• Assemble the service platform onto the top module and/or the middle module. • Attach all of the stiffener supports to each module. • Double check to see if all parts are installed as needed. PNEG-902 Multi - Module Dryer Stacking... -
Page 9: Crane Bracket Placement
The module should remain parallel to the earth as it is lifted. A crane with sufficient lifting capability must be used. Loads of 5,000 to 15,000 pounds should be expected. Crane brackets installed Figure 3B PNEG-902 Multi - Module Dryer Stacking... -
Page 10: Setting Lower Module On Pedestals
Make sure all nuts and bolts used so far have splice been tightened. Pedestal When splicing pedestal to stiffener use 3/8"-16 x 1-1/2" bolts (S-7928) where circled Figure 3F. Use 3/8"-16 x 1" (S-7927) in all other holes. Figure 3D Figure 3F PNEG-902 Multi - Module Dryer Stacking... -
Page 11: Anchoring Lower Module To Foundation
Figure 3J 6. Attach front (BLK-10058) and back (BLK-10057) leg anchor plates to legs using 5/16"-18 x 3/4" bolts Leg stand (S-6606) and 5/16"-18 nuts (S-3611) as shown in Figure BLK-10058 BLK-10057 Figure 3K PNEG-902 Multi - Module Dryer Stacking... -
Page 12: Installing Support Legs
8. Use 1/2"-13 x 1-3/4" bolts (S-3883) and 1/2"- 13 lock nuts (S-6493) to attach support legs to hitch weldment as shown in Figure 3M. Once installed, anchor the support legs to the foundation. Support legs may also be installed here. Support leg Figure 3M PNEG-902 Multi - Module Dryer Stacking... -
Page 13: Lifting Upper Module
Always use sturdy and stable supports when needed for installation. 10.Lift upper module and move into place over lower module. Use a guide line to keep module steady while it is being moved. (See Figure 3O.) Figure 3O PNEG-902 Multi - Module Dryer Stacking... -
Page 14: Setting Upper Module In Place
(D61-0089) on the module support pads. It may be necessary to raise the upper module slightly to place these shims. (See Figure 3Q.) Shim here (If required) Tab of connecting section end Plenum end panel Figure 3Q PNEG-902 Multi - Module Dryer Stacking... -
Page 15: Securing Upper Module
16. If you are stacking a three module dryer perform Steps 9 for placing the third module. Splice all stiffeners Figure 3R Frame tie down Frame tie channel Module support pad Top angle bracket Figure 3T Figure 3S PNEG-902 Multi - Module Dryer Stacking... -
Page 16: Chapter 4 Module Finishing
This should be installed as indicated in the enclosed installation instructions. • Connect fuel connections between modules making sure all connections are secure and no leaks are present. • Contact the fuel service provider to connect fuel supply. PNEG-902 Multi - Module Dryer Stacking... -
Page 17: Chapter 5 Ladder Cage Installation
Use 5/16"-18 x 3/4" bin bolts (S-275) and 5/16"-18 nuts (S-3611) to install safety cage onto the ladder. Safety cage bolt holes Figure 5A Figure 5B LS-4351 LS-4349 (Small bell hoop halves) (Safety cage brackets) Figure 5C PNEG-902 Multi - Module Dryer Stacking... - Page 18 (5) 34" vertical supports (D61-0110) and ten (10) 44" vertical supports (LS-4353) to make the cage assembly for the upper module rear ladder. (See Figure 5E.) LS-4353 Figure 5D D61-0110 Figure 5E PNEG-902 Multi - Module Dryer Stacking...
-
Page 19: Chapter 6 Warranty
6. Warranty The GSI Group, Inc. Warranty THE GSI GROUP, INC. (GSI) WARRANTS ALL PRODUCTS WHICH IT MANUFACTURES TO BE FREE OF DEFECTS IN MATERIAL AND WORKMANSHIP UNDER NORMAL USAGE AND CONDITIONS FOR A PERIOD OF 12 MONTHS AFTER RETAIL SALE TO THE ORIGINAL END USER. - Page 20 Authorities having jurisdiction should be consulted before installations are made. GSI Group 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.grainsystems.com Copyright © 2007 by GSI Group Printed in the USA...
