Summary of Contents for Welch Allyn CareTemp

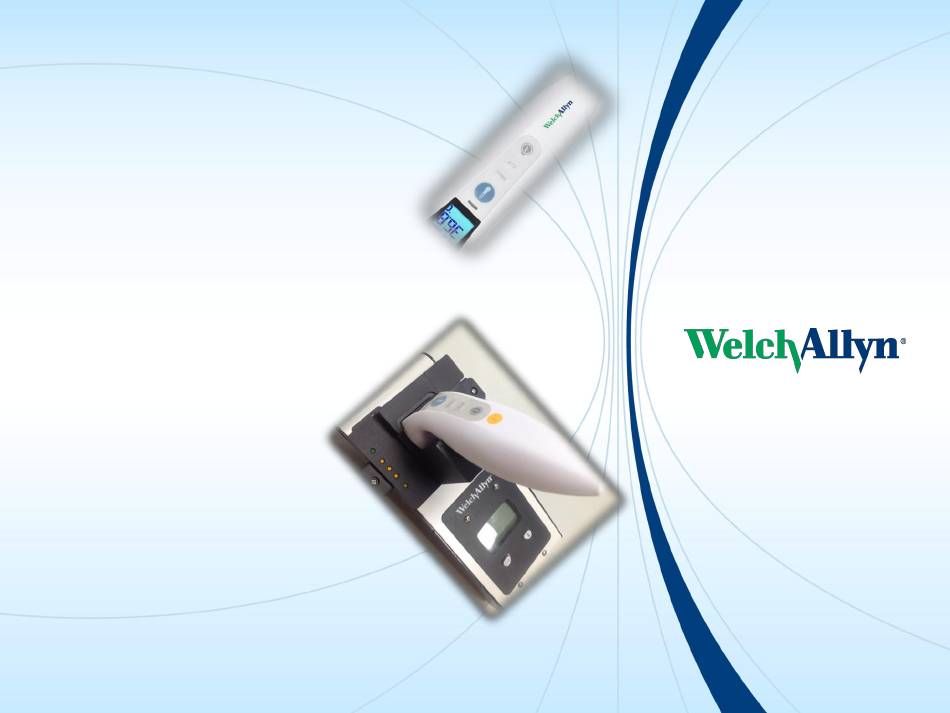

  • Page 1 CareTemp Touch Free Thermometer Service training...
  • Page 2 Topics We’ll Cover • Product and Accessories • Reference documents • Error messages • Device – Calibration Check • Repair and technical...
  • Page 3: Product And Accessories

    Part 105801 410670 CareTemp Touch Free Thermometer (all regions) 106091 410552 CareTemp No Touch Thermometer- China 106090 410551 CareTemp DFU CD (multi-language) – Replacement Part 105802 410670 CareTemp Battery Door – Replacement Part 106224 722755 QRC CareTemp Thermometer 106330 411083...
  • Page 4: Reference Materials

    Reference materials • 701754 9600 Plus Calibration Tester Manual – Installation, setup and operation instructions for CareTemp Adapter – Evaluation procedure for CareTemp thermometer • 80018998 CareTemp™ Touch Free Thermometer DFU – 106090 (410551) CareTemp DFU CD (multi-language) – Covers: •...
  • Page 5 System errors and Reading errors Operating range Cause: Battery less than The measurement The measurement The thermometer Cause : Cause : Cause : Cause : of 60.8 °F to 104 °F is lower than 93.2 °F is higher than 109.4°F distance to the patient is (16 °C to 40 °C) (34 °C)
  • Page 6 DEVICE MAINTENANCE CALIBRATION CHECK...
  • Page 7 Checking Functional Calibration Accuracy • The CareTemp 9600 Plus adapter allows calibration testing with the 9600 plus calibration tester at all three set point levels across the temperature range • The adapter is attached externally to the 9600 plus allowing customers to install without voiding the warranty •...
  • Page 8 CareTemp 9600 Plus Adapter Parts To assemble the CareTemp 9600 Plus Adapter you will need the following:  9600 plus calibration tester  9600 power supply  9600 Plus CareTemp Adapter  Power cable  Mounting bracket  Two screws...
  • Page 9 CareTemp 9600 Plus Adapter Installation Open the dust cover and attach the CareTemp adapter to the 9600 plus calibration tester using the mounting bracket and screws. Use the power cable to connect the adapters DC out connection to the 9600 plus power connector.
  • Page 10 CareTemp 9600 Plus Adapter Setup Power up the 9600 plus and adjust the set point. The adapters temperature LED turn on, and the Ready LED flashes until the temperature stabilizes within +/- .05 ºC of the set point...
  • Page 11 CareTemp 9600 Plus Adapter - Startup Wait for the temperature to stabilize as indicated by: • 9600 Plus LCD stops flashing • Adapters Ready LED stops flashing (+/- 0.25⁰ C of Set Point)
  • Page 12 CareTemp 9600 Plus Adapter Test Procedure 1. Place the CareTemp thermometer into “calibration mode” using the following steps: With the thermometer off, press “MEM” button (4) and “timer” button (6) at the same time and hold for 3 seconds. The display...
  • Page 13 CareTemp 9600 Plus Adapter Test Procedure 2. Remove the dust cover from the adapter and place the CareTemp thermometer in the adapter with the lens pointing down and press the measure button. 3. Remove the CareTemp Thermometer from the 9600 Plus Calibration Tester and read the temperature in the thermometer's display.
  • Page 14 CareTemp 9600 Plus Adapter Test Procedure When the 9600 plus and adapter temperature is stable, put the CareTemp thermometer in calibration mode. Place the CareTemp in the adapter and press the measure button. When the green LED flashes remove the CareTemp thermometer from adapter and read thermometers temperature.
  • Page 15 1 to 3. Wait at least 1 minute between temperature measurements. Measurements performed too  frequently could result in incorrect temperature readings. To return to normal mode wait for 60 seconds for the CareTemp thermometer to shut off...
  • Page 16 • Rica, Dominican Republic, Ecuador, Panama, Paraguay, Peru and Venezuela. • Brazil is through Authorized Service Provider • Welch Allyn Mexico, supporting Mexico Welch Allyn Tilburg, Netherlands • Supporting: Europe and India Welch Allyn UAE • Supporting the Middle East •...
  • Page 17 • Customer facing instructions for use 9600 Plus manual* • CareTemp 9600 Plus Adapter installation • CareTemp 9600 Plus Adapter setup • CareTemp 9600 Plus Adapter test procedure WA website • Product page • Link to technical support *The 9600 Plus calibration tester manual will detail the procedure for verifying the proper...
  • Page 18: Warranty

    No repair service is offered. If after troubleshooting, the device is determined to be defective, a warranty replacement unit will be provided by Welch Allyn Shipping cost to return a defective device to nearest Welch Allyn center is not •...
  • Page 19 RETURNED DEVICE EVALUATION • Thermometers returned under warranty shall be evaluated to determine if the device has failed using the procedure detailed in the 9600 Plus calibration tester manual • The original warranty will remain in effect from the date of original purchase to the end of the warranty period.
  • Page 20 QUESTIONS AND DISCUSSION...
