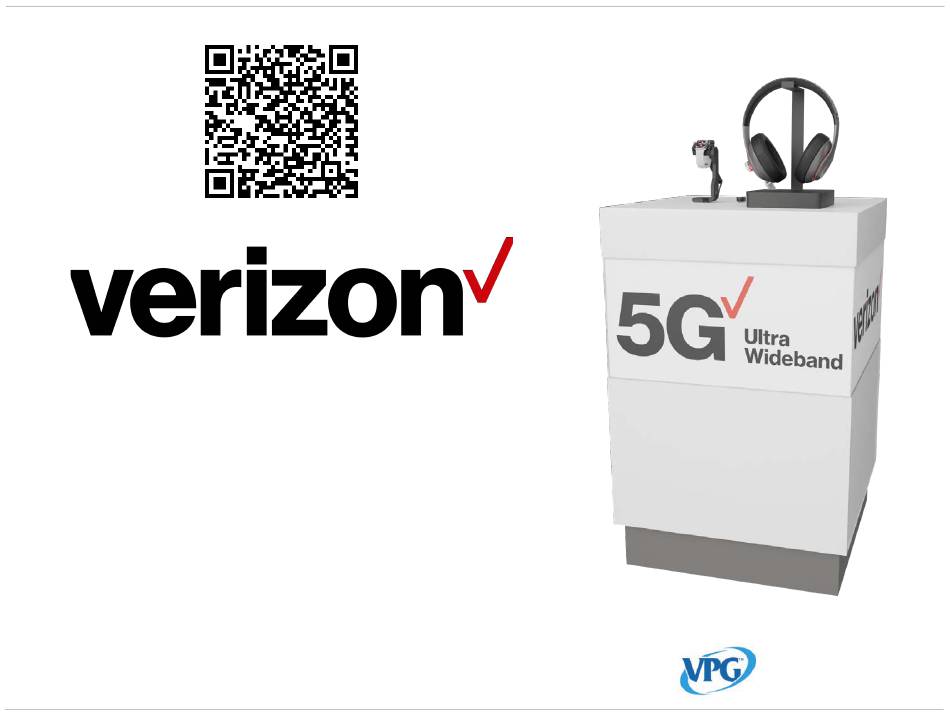

- Page 1 Q U I C K S T A R T G U I D E S M A R T C U B E For ALL videos and guides, visit our directory: Customer Care: (877) 477-4 874 www.vanguardprotexglobal.com/verizon-directory...
- Page 2 Smart Cube T A B L E O F C O N T E N TS EnCore Installation IR Keyfob Troubleshooting Spare Parts...
-
Page 3: Power Supply
EnCore - Accessory Security The EnCore alarms are to be placed inside the front panel on Ensure the tamper the side walls of the Smart Cube. switch is depressed prior to securing the EnCore in place. EnCore Underside View... - Page 4 SMART CUBE EnCore VP-1397W IR Extender Cable - Accessory Security (KF-1102) The IR extender cable is used to extend the EnCore receiver. Feed the cable up through the fixture slot and adhere the dome to the top shelf close to the edge of the slot.
- Page 5 EnCore click or scan QR code for installation video Installation Tools & Parts Needed Remove the cover of the EnCore (VP-1397) with the V-T900 security driver or V-900-T Allen wrench. Remove the 3M VP-1397W V-T900 adhesive liner. Set the security code by changing V-900-T the DIP switch...
- Page 6 IR KEYFOB (KF-1106) Troubleshooting Arming and Disarming Use the red “lock” button to arm the system, and the green “unlock” Disarm button to disarm the system. IMPORTANT: Ensure the button pads IR Emission are not installed upside down. Ensure you hold the keyfob in the proper orientation.
-
Page 7: Spare Parts
SPARE PARTS Maintenance Alarm EnCore VP-1397W Sensors USB-C PAS Sensor Micro USB PAS Sensor X-Sensor Slim Wearable Sensor VP-1439W VP-1349WXL VP-1350WXL VP-1626 Tools 1/8” Allen Security Screwdriver Allen Security Wrench V-T900 V-900-T Adhesives EnCore Adhesive X-Sensor Adhesive AD-139-20 AD-131-50 Misc. IR Receiver IR Keyfob X-Sensor Flex Cover...
