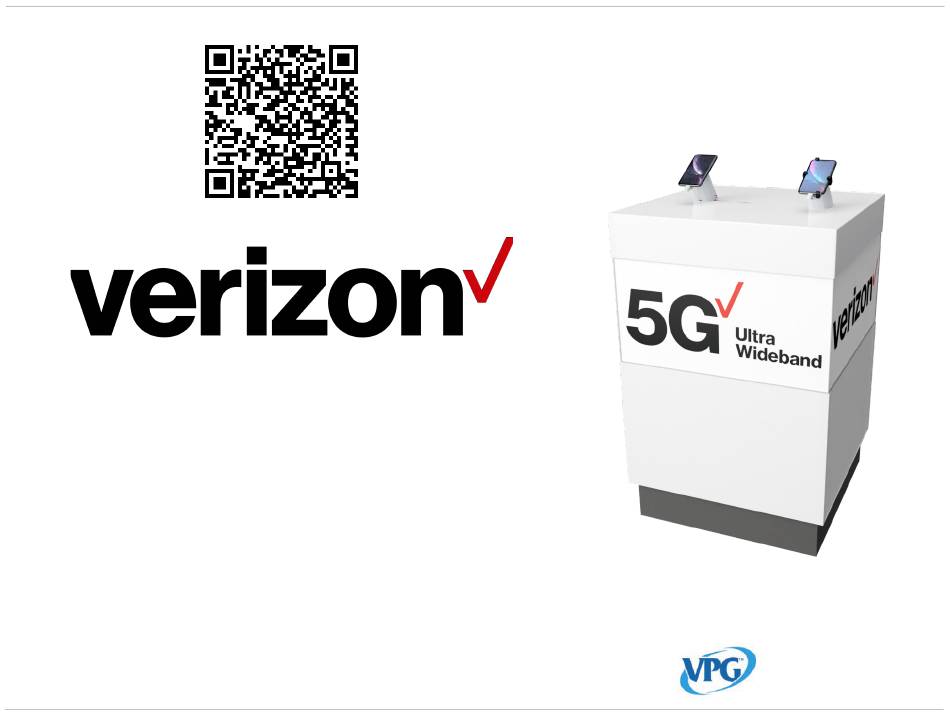

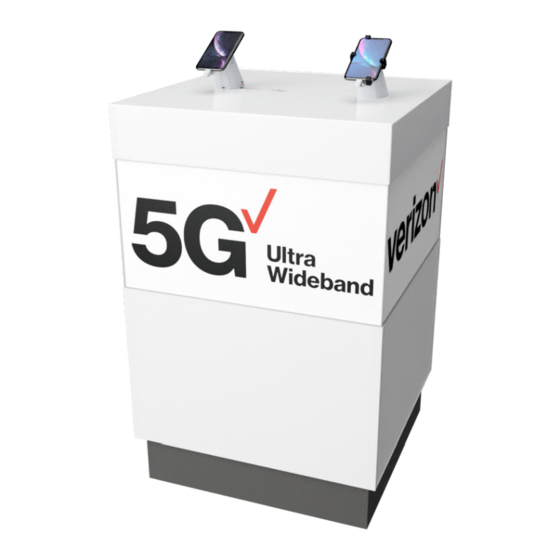

- Page 1 Q U I C K S T A R T G U I D E S M A R T C U B E For ALL videos and guides, visit our directory: Customer Care: (877) 477-4 874 www.vanguardprotexglobal.com/verizon-directory...
- Page 2 Smart Cube CR338 Installation T A B L E O F C O N T E N TS Adhesive Resistant Devices CR338 Removal IR Keyfob Troubleshooting Spare Parts...
- Page 3 CR338 Side View CR338 - Phone & Tablet Security CR338 positions will adhere to the top of the Smart Cube. CORRECT INCORRECT Underside View Ensure the tamper switch is depressed and properly aligned prior to securing the pedestal in place.
- Page 4 CR338 click or scan QR code for installation video Installation Tools & Parts Needed Make sure the tamper switch is fully Clean fixture surface and wipe dry. depressed and properly aligned Remove the adhesive liner on the before mounting. base of the pedestal and adhere the pedestal to the fixture.
- Page 5 ADHESIVE RESISTANT DEVICES Merchandising Requirements | All Glass Back Phones AD-218 - Clear Adhesive Any device that has a glass back requires the AD-218 to make sure VPG sensors properly adhere to the product. 1) Clean the back of the device with an alcohol pad and wipe dry immediately.
- Page 6 Do NOT try to pull up on the CR338 base. It can damage the pedestal and/or the fixture. To remove a CR338 pedestal that’s adhered Pedestal Removal to Verizon fixtures, follow the steps below. click or scan QR code for video Tools & Parts Needed Disarm the system by pressing the green “unlock”...
- Page 7 IR KEYFOB (KF-1106) Troubleshooting Arming and Disarming Use the red “lock” button to arm the system, and the green “unlock” Disarm button to disarm the system. IMPORTANT: Ensure the button pads IR Emission are not installed upside down. Ensure you hold the keyfob in the proper orientation.
- Page 8 SPARE PARTS Maintenance CR338 Kit K-CR338-02W CR338 Pedestal CR338 Sensor Mounting Kit Power Supply VP-1751W VP-1707W K-1106 V-39 Micro USB PAS PAS Bracket Clear PAS Bracket Type-C PAS Sensor Sensor VP-1431C-5 VP-1202C-5 VP-1439 VP-1603 Power Couplers Micro USB Coupler USB-C Coupler Lightning Coupler P21001 P21005...
