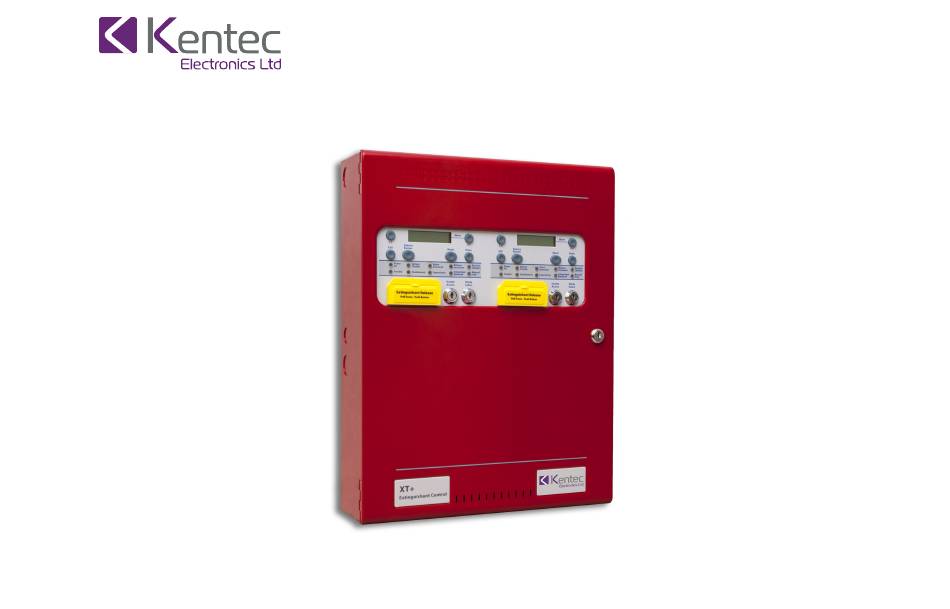

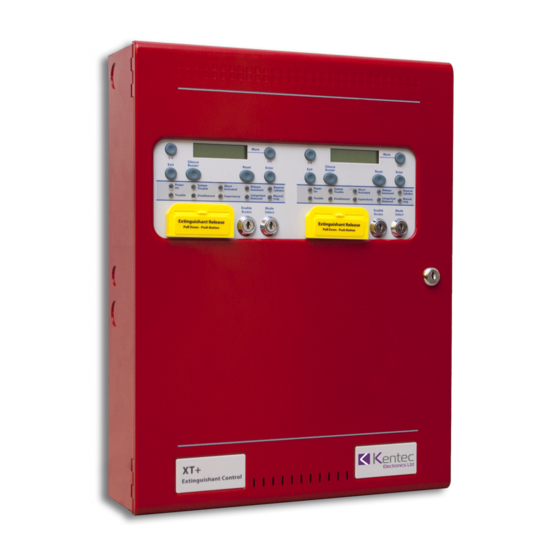

- Page 1 XT+ Releasing Control Unit Operating Instructions Version 1.00 | December 2018 | MAN-1253KE...
-
Page 2: Table Of Contents
Contents | 2 Contents Contents User Access Levels Standby Mode Access Level 2 Access Level 3 Unit Tests General Information Operating Instructions Inspecting Batteries Replacing Standby Batteries Related Documentation Contact Information Emergency Contact Service Contact Version 1.00 | December 2018 | MAN-1253KE... - Page 3 Contents | 3 Version 1.00 | December 2018 | MAN-1253KE...
-
Page 4: User Access Levels
User Access Levels | 4 USER ACCESS LEVELS Standby Mode Standby mode indicates that they Enable Keyswitch has not be activated. The LCD screen will display the following: Specific functions are restricted when operating the unit in the standby, however this level allows users to perform simple tests. -
Page 5: Access Level 2
User Access Levels | 5 Access Level 2 Insert the key in the Enable Access keyswitch and turn it to the right to obtain Access Level 2. XT+ releasing modules will ignore Enable Access commands from the Elite RS panel and will enter access level 2 only when their own Enable Access switch is operated. - Page 6 User Access Levels | 6 Press Enter to re-enable the output and restore the Disablement condition. Press Enter to disable the 2nd stage relay output. The Disablement LED will illuminate and the buzzers will sound on the XT+ module and the Elite RS FACP. The display will show: Press Enter to re-enable the output and restore the Disablement condition.
- Page 7 User Access Levels | 7 Press Enter to re-enable the output and restore the Disablement condition. Press Enter to turn on the extract output. The buzzer will sound on the Elite RS FACP. The display will show: Press Enter to re-enable the output and restore the Disablement condition. Press Enter to select the Reserve output.
-
Page 8: Access Level 3
User Access Levels | 8 Access Level 3 To enter Access Level 3, turn the Enable Access keyswitch and turn the Write Enable switch to the on (left) position. The following actions are available in Access Level 3: Set the extinguishing monitoring level. Display the number of updates to the module's configuration Change the monitoring level of the extinguishing outputs it is necessary to enter access level 3. - Page 9 User Access Levels | 9 The XXX shown here is the CURRENT monitoring level detected on the extinguishing output. Press Enter to store that level. The circuit characteristics are then learned by the unit and a trouble will occur if these change. Press (+) to display and set the monitoring level for output 2 in the same way as output 1.
-
Page 10: Unit Tests
Unit Tests | 10 UNIT TESTS To perform a lamp, display, and buzzer test from Standby Mode or Access Level 2, press and hold the Exit button. After several seconds, the following should occur: all LEDs will illuminate the buzzer buzzes steadily the LCD will display the following: Version 1.00 | December 2018 | MAN-1253KE... - Page 11 Unit Tests | 11 Version 1.00 | December 2018 | MAN-1253KE...
-
Page 12: General Information
General Information | 12 GENERAL INFORMATION Operating Instructions These operating instructions shall be placed near the panel. Inspecting Batteries Inspect the standby batteries annually to determine the connection integrity to the XT+ Releasing Control Unit. The fire control panel contains sealed lead acid batteries to provide standby power in the event of power failure. The standby batteries have a life expectancy of 3 to 5 years. - Page 13 General Information | 13 XT+ Releasing Control Unit Installation Guide (MAN-1252KE) XT+ Releasing Control Unit Wiring Diagram (MAN-1255KE) Version 1.00 | December 2018 | MAN-1253KE...
-
Page 14: Contact Information
Contact Information | 14 CONTACT INFORMATION Emergency Contact Contact the company or individual responsible for providing assistance in the event of an emergency. In the event of an emergency, notify: Name Company Primary Telephone Secondary Telephone Cell Phone Address City State Version 1.00 | December 2018 | MAN-1253KE... -
Page 15: Service Contact
Contact Information | 15 Service Contact Contact the company or individual responsible for providing service: Name Company Primary Telephone Secondary Telephone Cell Phone Address City State Version 1.00 | December 2018 | MAN-1253KE...
