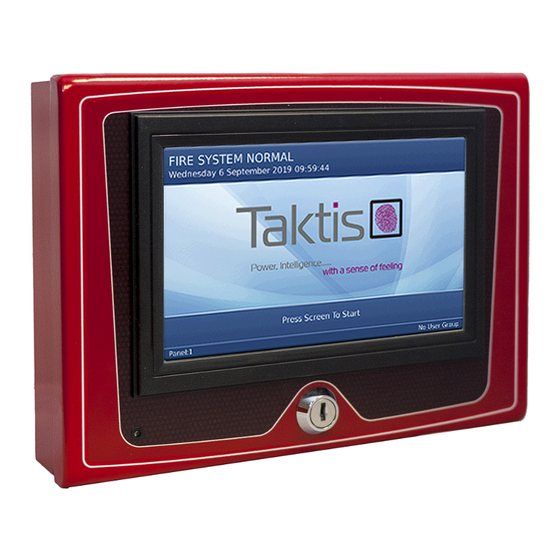

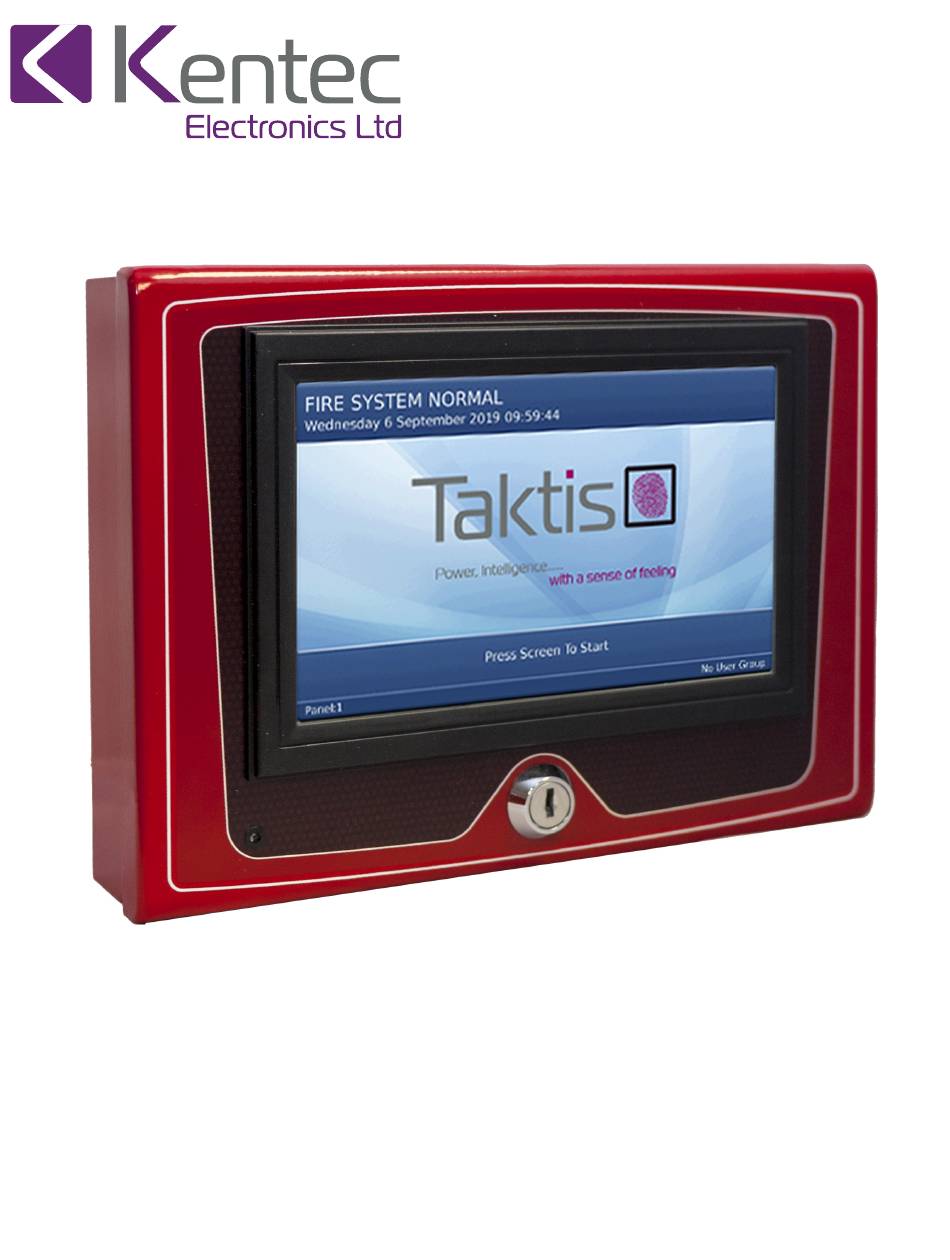

Taktis Network Vision Annunciator
Information Guide
UL Version 1.04 |   May 2019 |   MAN-1434KE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Taktis TRC00NC-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Kentec Electronics Taktis TRC00NC-10

  • Page 1 Taktis Network Vision Annunciator Information Guide UL Version 1.04 |   May 2019 |   MAN-1434KE...
  • Page 2: Table Of Contents

    Warranty Service Advanced Replacements Overview Fascia Internal Components Installation Before You Begin Mounting the Vision Annunciator Trim Ring Wiring Specifications Cabling Index Glossary Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 2...
  • Page 3: Compliance

    Any changes or modifications not expressly approved by Kentec Electronics Ltd could void the user's authority to operate this equipment under the rules and regulations of the FCC.
  • Page 4: Introduction

    Taktis Network Vision Annunciator Information Guide INTRODUCTION Technical Support For technical support, contact Kentec Electronics, Ltd at +44 (0)1322 222121 or techsupport@kentec.co.uk. Prior to contacting technical support, have the following information available: Product part number Purchase order or order number...
  • Page 5: Warranty Service

    Products returned using the advanced replacement process must be received within 30 days of the RMA issue date. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 6: Overview

    Taktis Fire Alarm Control Panels connected to the same network. The Annunciator connects via the network interface, and any number of repeaters can be connected up to the maximum number of nodes allowed by the network. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 7 The Annunciator can be configured to display events from any combination of nodes on the network. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 8: Fascia

    Taktis Network Vision Annunciator Information Guide Fascia Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 8...
  • Page 9: Internal Components

    Taktis Network Vision Annunciator Information Guide Internal Components Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 9...
  • Page 10: Installation

    Before you begin the installation, take a few minutes to review the installation information, gather the required items, and complete the tasks listed to make the installation as quick and easy as possible. Acquire the following Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE...
  • Page 11 Mounting Hardware - Without Optional Trim Ring: 4 #10 screws, appropriate for mounting location With Optional Trim Ring: 4 M4 x 8mm machine screws and 4 M4 plain washers Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 12: Mounting The Vision Annunciator

    2. Using the enclosure as a template, mark the position of the holes. 3. Mount the enclosure using appropriate hardware. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 13: Trim Ring

    The optional trim ring allows a semi-flush mounting of the surface enclosure back box. The diagram below shows the trim ring external and advised wall cut-out dimensions. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 14 Taktis Network Vision Annunciator Information Guide Trim Ring Fitting Options Trim Ring Fold Tabs Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 14...
  • Page 15 Taktis Network Vision Annunciator Information Guide Use four, M4 x 8mm machine screws and M4 plain washers to mount the enclosure to the trim ring. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 16: Wiring

    Taktis Network Vision Annunciator Information Guide Wiring The diagram below shows power and network connections when using a dedicated power supply. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 16...
  • Page 17 PF is required. Power is supervised by the Taktis panel. Do not insert more than one conductor per terminal. Use wire nuts or other suitable splice connectors to connect the 24V DC cables to both the AUX 24V OUT and RTN terminals. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 18 Taktis Network Vision Annunciator Information Guide The diagram below shows an example network wiring scheme featuring two panels and two annunciators. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 18...
  • Page 19: Specifications

    Gray (BS 00 A 05) Black (RAL9005) Weight 4.4 lbs (2 kg) maximum Environmental Temperature Range 23°F (-5°C) - 120°F (49°C) Relative Humidity Up to 95%, non-condensing Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 19...
  • Page 20: Cabling

    The length of CABLE C + CABLE D cannot exceed 3900 feet (1200 meters). The length of CABLE D + CABLE A cannot exceed 3900 feet (1200 meters). Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide...
  • Page 21: Index

    18 AWG 19 24V 17, 19 AUX 24V 17 Buzzer 19 Cabling 19 Class A 3 Fascia 8, 10 Network 6, 10, 19 Terminals 17 Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 21...
  • Page 22: Glossary

    DIP Switch A group of two-position electrical contacts mounted in a Dual Inline Package (DIP), typically used to set address or function information. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 22...
  • Page 23 Supervision Monitoring the integrity of a circuit or device to detect a fault condition that would prevent nor- mal operation. Kentec Electronics Ltd UL Version 1.04 |   May 2019 |   MAN-1434KE Taktis Network Vision Annunciator Information Guide Page 23...
