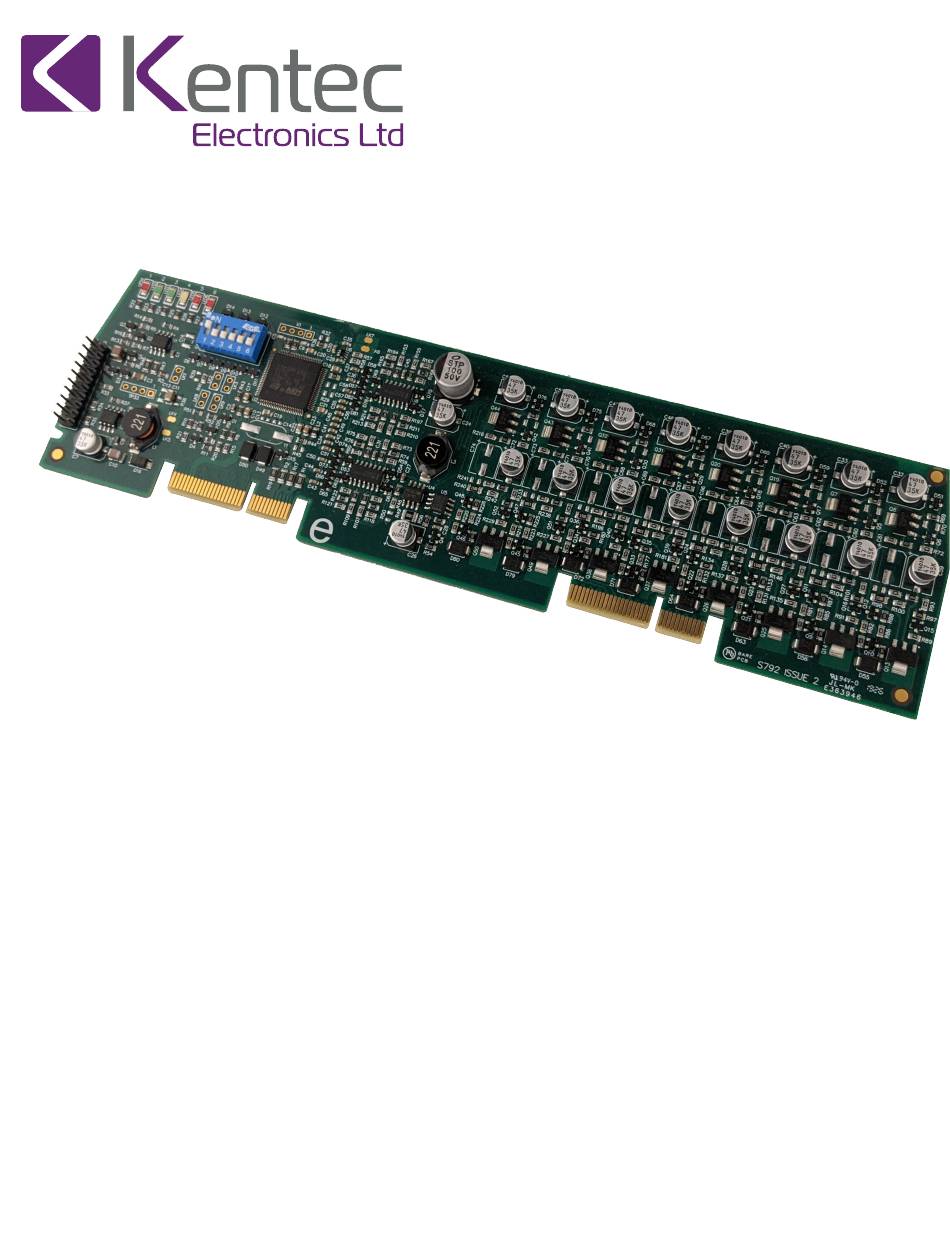

- Page 1 8 Channel Conventional Zone Module (S792) Information Guide UL Version 1.00 | March 2021 | MAN-1441KE...
- Page 2 8 Channel Conventional Zone Module (S792) Information Guide Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE 8 Channel Conventional Zone Module (S792) Information Guide Page 2...
-
Page 3: Table Of Contents
8 Channel Conventional Zone Module (S792) Information Guide CONTENTS Contents Compliance Underwriters Laboratories (UL) Installation Introduction Technical Support Return Material Authorization (RMA) Warranty Service Advanced Replacements Overview Package Contents Installation Before You Begin Setting the Address Placement Wiring Circuit Activation... - Page 4 8 Channel Conventional Zone Module (S792) Information Guide Specifications Electrical Overall Module Electrical Ratings Initiating Circuit Characteristics Operating Environment Physical Specifications Compatible Devices Apollo System Sensor Hochiki Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE 8 Channel Conventional Zone Module (S792) Information Guide...
-
Page 5: Compliance
Any changes or modifications not expressly approved by Kentec Electronics Ltd could void the user's authority to operate this equipment under the rules and regulations of the FCC. -
Page 6: Introduction
8 Channel Conventional Zone Module (S792) Information Guide INTRODUCTION Technical Support For technical support, contact Kentec Electronics, Ltd at +44 (0)1322 222121 or techsupport@kentec.co.uk. Prior to contacting technical support, have the following information available: Product part number Purchase order or order number... -
Page 7: Warranty Service
8 Channel Conventional Zone Module (S792) Information Guide Attention: RMA # _____________ Kentec Electronics, Ltd Units 25-27 Fawkes Avenue Questor, Dartford Kent. DA1 1JQ United Kingdom Warranty Service Technical Support can replace or repair a defective product when the original purchase is within the warranty period defined in the sales contract. -
Page 8: Overview

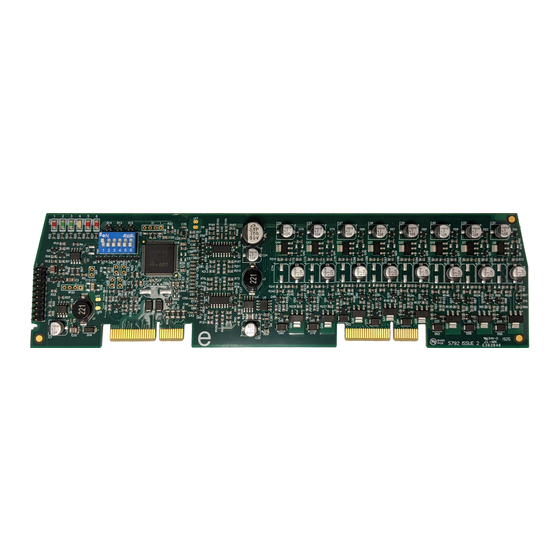

8 Channel Conventional Zone Module (S792) Information Guide OVERVIEW 8 Channel Conventional Zone Panel Module (S792) The 8 Channel Conventional Zone Panel Module has 8 supervised detection circuits (Class B). If Class A circuits are needed, they can be made from Class B circuit pairs (1 & 2, 3 & 4, 5 & 6, 7 & 8). Each circuit, regardless of class, can support up to 20 conventional detectors and approved devices. - Page 9 8 Channel Conventional Zone Module (S792) Information Guide NOTE Activation device: 470 Ohm resistor (S2051) is not included, but can be purchased separately. Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE 8 Channel Conventional Zone Module (S792) Information Guide...
-
Page 10: Installation
8 Channel Conventional Zone Module (S792) Information Guide INSTALLATION This section provides instructions for connecting cables, mounting, and testing the 8 Channel Conventional Zone Panel Module for installation. Using Loop Explorer 2, add the panel module to the existing configuration and configure it as required for the system. -
Page 11: Before You Begin
8 Channel Conventional Zone Module (S792) Information Guide Replace the black plastic cover. Install this product in accordance with NFPA 72, the National Electrical Code, and all local codes. IMPORTANT! The module must be installed by personnel familiar with electronic components. Electronic components within the module are vulnerable to damage from electrostatic discharge. - Page 12 8 Channel Conventional Zone Module (S792) Information Guide 1. Disconnect AC power and standby batteries prior to performing the module installation. 2. Remove the retaining screw and plastic cover. 3. Remove the panel module from the protective packaging using adequate electrostatic protection.
-
Page 13: Wiring
8 Channel Conventional Zone Module (S792) Information Guide The photo above is an example of panel module placement and may not be representative of the specific module and slot placement described in this guide. Refer to the checklist above for details on placement. - Page 14 8 Channel Conventional Zone Module (S792) Information Guide Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE 8 Channel Conventional Zone Module (S792) Information Guide Page 14...
-
Page 15: Circuit Activation
8 Channel Conventional Zone Module (S792) Information Guide Circuit Activation Circuit activation should be achieved with the use of trigger resistors. This enables the panel to report a trouble in the event of a short circuit in the wiring. When trigger resistors are not used, Short Circuit Activation must be enabled in the panel programming. -
Page 16: Testing The Installation
8 Channel Conventional Zone Module (S792) Information Guide NOTE Each trigger resistor must be in the same enclosure (or a close-nippled enclosure) as its normally-open volt- free contact. Testing the Installation 1. Confirm communication from the panel via the LED status indicators. LED indicators provide functional and diagnostic information as shown below. -
Page 17: Configuration
8 Channel Conventional Zone Module (S792) Information Guide CONFIGURATION The 8 Channel Conventional Zone Panel Module can be configured via LE2 or the Panel GUI. The following instructions detail configuration via LE2. NOTE The panel module must be added to the configuration via Loop Explorer 2 or an Autolearn on the panel. -
Page 18: Ul Compliance Limitations
8 Channel Conventional Zone Module (S792) Information Guide 9. Set the Location Text, up to 80 characters. This text is displayed when the circuit is activated. 10. Use the Map to Zone field to set the zone number for the circuit. Allowable values are 0-2000. -
Page 19: Device Settings / Input Actions
8 Channel Conventional Zone Module (S792) Information Guide Device Settings / Input Actions Each input of the 8 Channel Conventional Zone module has a Device Setting and an Input Action. The Device Setting field describes the type of device that is connected to the input and determines the detailed response to the activation. - Page 20 8 Channel Conventional Zone Module (S792) Information Guide This chart shows an example of the signals sent from the Media Gateway to an off-premises monitoring station for the Device Setting of Detector (default) and the three possible Input Actions (Fire, Supervisory, and Carbon Monoxide).
- Page 21 8 Channel Conventional Zone Module (S792) Information Guide A Device Setting of Water Flow Alarm Non Silence restricts the operation of the Alarm Silence function. It will also cause the event type being transmitted to an off-premises monitoring station to indicate a more specific fire event type of Waterflow.
-
Page 22: Troubleshooting
8 Channel Conventional Zone Module (S792) Information Guide TROUBLESHOOTING Problem Solution(s) Investigate the wiring problem and correct any interruptions in the Open Circuit. A break in the wiring pathway exists and circuit. When the wiring issue is resolved, the trouble on the panel causes a trouble event: "Channel # has a full open... -
Page 23: Specifications
8 Channel Conventional Zone Module (S792) Information Guide SPECIFICATIONS This appendix provides electrical and environmental specifications for the 8 Channel Conventional Zone Panel Module. Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE 8 Channel Conventional Zone Module (S792) Information Guide... -
Page 24: Electrical
Quiescent Current 70 mA Initiating Circuit Characteristics The 8 Channel Conventional Zone Panel Module compatibility identifier is ZI-S792. NOTE All initiating device circuits are power-limited with a maximum output voltage of 20V and a maximum short circuit current of 50mA. -
Page 25: Operating Environment
8 Channel Conventional Zone Module (S792) Information Guide Operating Environment Dry indoor use only. Temperature Range C – 49 C or 23 F – 120 Up to 95%, non-condensing Relative Humidity Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE... -
Page 26: Physical Specifications
8 Channel Conventional Zone Module (S792) Information Guide Physical Specifications Dimensions 234.6mm x 62.8mm or 9¼" x 2½" Compatible Devices Apollo All detectors listed below are compatible with the following Bases: Apollo 45681-200 / VES VF5695-00 Apollo 45681-255 There is a maximum number of 13 devices per circuit. - Page 27 8 Channel Conventional Zone Module (S792) Information Guide Hochiki Detector Models VES Detector Models DCD-135 VF2020-00 DCD-190 VF2021-00 SOC-24V VF2042-00 SOC-24VW VF2043-00 SOC-24VN VF2044-00 SIJ24 SLR-24H VF2041-00 SLR-24V VF5026-00 SLR-24VN SLR-835 VF2030-00 SLR-835H SLV-24 SLV-24V VF2032-00 SLV-24N Kentec Electronics Ltd UL Version 1.00 | March 2021 | MAN-1441KE...
