Summary of Contents for Lifetime 90144

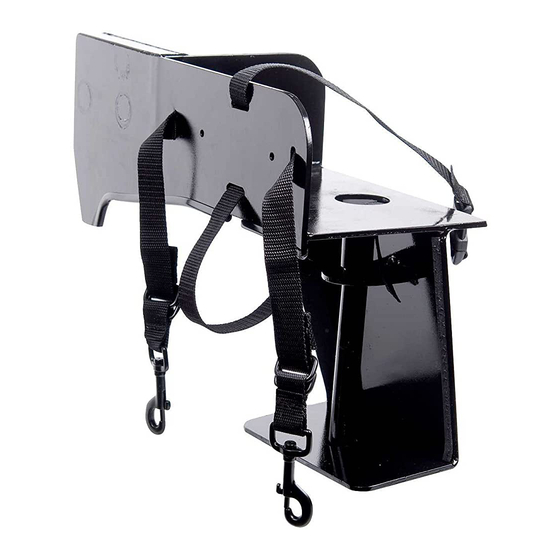

- Page 1 MODEL N° 90144 OWNER’S MANUAL Keep this Identification Number in case you must contact our Customer Service Department.
-
Page 2: Before Beginning Assembly
BEFORE BEGINNING ASSEMBLY Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department at 1.800.424.3865. TOOLS REQUIRED FOR THIS ASSEMBLY Safety Glasses (1 pair for each person) Instruction #1085745 B 6/01/2011... -
Page 3: Parts List
PARTS LIST Description Motor Mount Kit Parts Box Motor Mount Battery Bag Motor Mount Strap Clasp Motor Mount Strap Battery Strap Motor Mount Pin Battery Strap Clasp PARTS IDENTIFIER MOTOR MOUNT KIT PARTS BOX [CYX] Parts shown at 10% of actual size CXS (x1) Battery Bag CXW (x1) - Page 4 TOOLS AND PARTS REQUIRED FOR THIS PAGE CXV (x1) CYW (x1) CXR (x1) Thread the Battery Strap (CXV) through the slots in the Motor Mount (CXR) as shown. Finally connect the Battery Strap Clasp (CYW) to the Battery Strap as shown.
- Page 5 TOOLS AND PARTS REQUIRED FOR THIS PAGE CXU (x1) Thread the Motor Mount Strap (CXU) through the slots in the Motor Mount as shown...
- Page 6 TOOLS AND PARTS REQUIRED FOR THIS PAGE CXT (x2) Connect one (1) Motor Mount Strap Clasp (CXT) to each end of the Motor Mount Strap as shown. CXT (x2)
- Page 7 TOOLS AND PARTS REQUIRED FOR THIS PAGE CXW (x1) Slide the Motor Mount over the rear end of the Kayak, and attach the Mount to the Kayak using the Motor Mount Pin (CXW) as shown. Note: The Motor Mount Pin will be held in place by the battery, attached later in the assembly.
- Page 8 TOOLS AND PARTS REQUIRED FOR THIS PAGE CXS (x1) Help secure the Motor Mount to the Kayak by connecting the Motor Mount Strap Clasps to the two pad eyes as shown. Tighten Strap securely. Attach the Motor Mount Strap Clasp to this pad eye. Attach the Motor Mount Strap Clasp to this pad eye.
- Page 9 TOOLS AND PARTS REQUIRED FOR THIS PAGE Secure the Battery and Battery Bag to the Motor Mount using the Battery Strap. Thread the Battery Strap through the two loops on the Battery Bag. Tighten Strap securely. Attach the electric motor to the Motor Mount and the battery cables to the battery according to the instructions that came with your motor.
-
Page 10: Cleaning And Care
CLEANING & CARE ® Congratulations on your Lifetime product purchase. By following the instructions below, your new Lifetime product should provide you with years of service and enjoyment. Cleaning and Care The Kayaks are stain- and solvent-resistant. Most stains can be removed, using a mild soap and a soft-bristled brush. - Page 11 5. This warranty is in lieu of all other warranties expressed or implied, including warranties of merchantability or fi tness for use to the extent permitted by Federal and state law. Neither Lifetime Products, Inc. nor any representative assumes any other liability in connection with this product. This warranty gives you specifi c legal rights, and you may also have other rights which vary from state to state.
- Page 12 ENHANCE YOUR LIFETIME ® PURCHASE BY ADDING ACCESSORIES OR OTHER GREAT PRODUCTS To purchase accessories or other Lifetime Products, visit us at: www.lifetime.com Or call: 1-800-424-3865...
