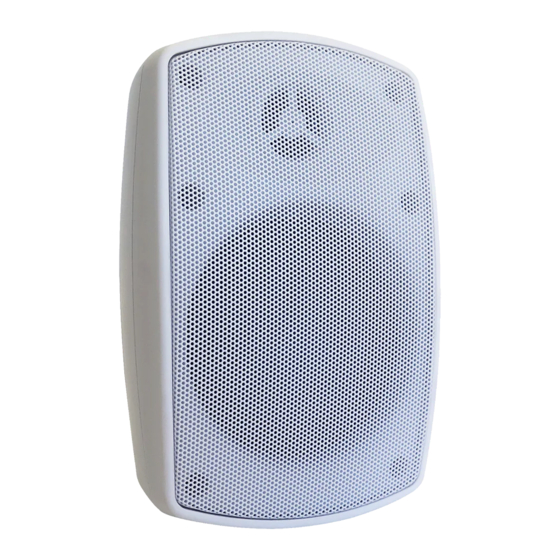

- Page 1 INSTALLATION AND OPERATION MANUAL FLEX SERIES INDOOR & OUTDOOR IP65 RATED WALL MOUNT SPEAKERS FLEX 15 / FLEX 30 / FLEX 50...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION READ these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 3 Rear Panel and stylish design. Mounting Featuring aluminium grills and IP 65 rating FLEX speakers are suitable for indoor and outdoor use. The FLEX series Specifications are perfect for speech or background music applications. Revision 2.0: November 2021 Available in 15, 30 and 50 Watt variants, the FLEX range is available in black or white and are supplied with pan and tilt wall brackets.
-
Page 4: Front Panel
1 inch Tweeter Aluminium powder-coated grille feature on all FLEX30 1 inch Tweeter FLEX models FLEX50 1 inch Tweeter LOW FREQUENCY DRIVER FLEX15 4 inch Woofer FLEX30 5¼ inch Woofer FLEX50 6½ inch Woofer INSTALLATION AND OPERATION MANUAL FLEX SERIES... -
Page 5: Rear Panel
(+), the black terminal is negative (-). Care should be taken when connecting multiple speakers that they are wired in the same polarity. MOUNTING POINT The included pan and tilt wall mount brackets are fitted to these points. INSTALLATION AND OPERATION MANUAL FLEX SERIES... -
Page 6: Wall Mount Brackets
• Using the screws provided fasten the U bracket to the wall mounting plate. • Install the speaker to the U bracket with the U bracket provided plastic screw fasteners. Plastic screw fasteners INSTALLATION AND OPERATION MANUAL FLEX SERIES... -
Page 7: Specifications
191 x 182 x 304 mm SHIPPING DIMENSIONS W x D x H 330 x 154 x 217 mm 420 x 195 x 275 mm 502 x 233 x 329 mm SHIPPING WEIGHT 4.0 Kg 5.5 Kg 7.3 Kg INSTALLATION AND OPERATION MANUAL FLEX SERIES... - Page 8 ENGINEERED BY AUSTRALIAN MONITOR Address: Unit 1, 2 Daydream Street, Warriewood NSW 2102 Australia Website: www.australianmonitor.com.au International enquiries email: international@australianmonitor.com.au ABN 86 003 231 187...
