Improper erection, dismantling or use of Pro-Jax utility scaffold may result in serious injury or death!! Erectors, dismantlers and users of Pro-Jax utility scaffold must read and fully understand these Safety Rules and Instructions as well as all federal OSHA, state, and local regulations pertaining to this equipment prior to its use.
Page 3
Pre-planning and study are essential for the proper and safe use of any scaffold equipment. You must first determine whether or not Pro-Jax utility scaffold is the best equipment for your particular job. You should discuss the following questions as well as any other questions you may have with your scaffold dealer or other qualified person: •...

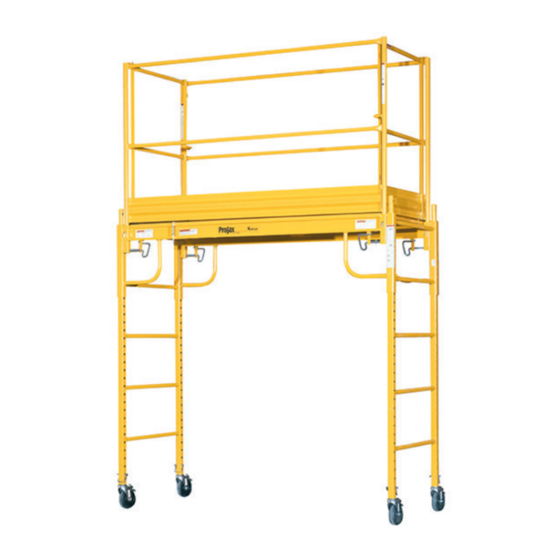

ASSEMBLY INSTRUCTIONS BUILDING A ONE FRAME HIGH SCAFFOLD For proper assembly, your basic Pro-Jax Utility Scaffold must be comprised of 13 individual parts (plus guard rail panels when required). Letter Part Qty. End Frame Side Brace Platform 5" Caster 2" Snap Pin —...
Page 5
— — STEP THREE STEP FOUR Install platform C on side Rotate the platform clips braces B so that platform is fully seated within into the engaged position. inner channel on top of side braces. PLATFORM ENGAGED CHANNEL DISENGAGED SIDE BRACE PUSH —...
*Federal OSHA allows a maximum platform height of 4 times the narrowest base dimension. However, bil-jax recommends that the maximum height be limited to 3 times the narrowest base dimension on all Pro-Jax utility scaffolds. When additional platform height is required on a free standing scaffold, outriggers may be used to extend the base dimensions.
ADDITIONAL COMPONENT AVAILABLE — INSTALLATION OF WIDE BASE EXTENSION Install by inserting base frame into vertical channels of wide base extension. Pin into place with snap pins. 71" WIDE BASE EXTENSION DISMANTLING NOTES AS ADAPTED FROM THE SCAFFOLDING, SHORING & FORMING INSTITUTE (SSFI) The work of dismantling scaffolding should be under the supervision of an individual with proper experience and aptitude (competent person).
The following recommendations for maintenance are generalized and not intended to cover every specific situation or component. Safe Practices and common sense should be followed at all times. In case of doubt as to the best maintenance procedures to follow, please contact your bil-jax scaffold supplier. IMPORTANT 1.
Page 9
MAINTENANCE PROCEDURES (CONTINUED) REMEDIES AND REPAIRS A. Bent or distorted members may be cold areas will usually rust more quickly than the straightened only - NEVER USE HEAT TO surrounding painted areas. Worn or old STRAIGHTEN SCAFFOLDING paint still provides some protection. COMPONENTS.
Never allow any installation accompanying them or separately available or use of scaffolds until this is done. from bil-jax scaffold upon request. REFER TO AND COMPLY WITH ALLOWABLE LOAD DATA SHOWN ON PAGE 3. - Page 11 -...
Page 11
Do not attempt to move rolling scaffolds specific scaffold installations that do not fall without sufficient help and roll on level within this data, consult your bil-jax supplier. surfaces only. Watch out for holes or floor 11. BECAUSE OF DIFFERENCES IN DESIGN...
