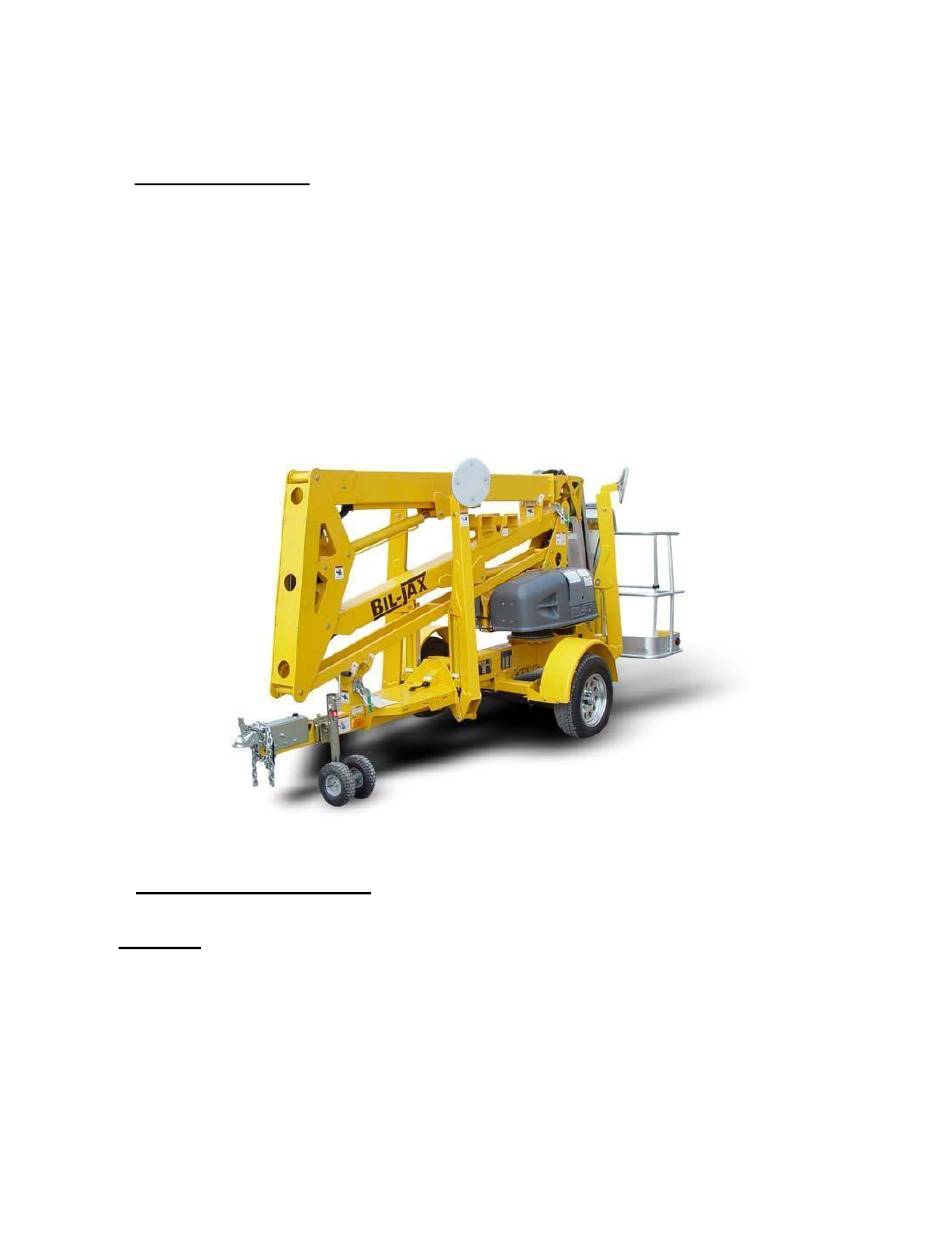

Bil-Jax XLB-3522A Quick Start Manual

43’ boomlift-dc

Advertisement

SPECIFICATIONS:

24 Volt –DC Electric
Work Height: 43'2"
Platform Height: 37'2"
Maximum Outreach: 22'6"
Outreach from Outrigger Edge: 17'5"
Boom Rotation: 700°
110 Volt Battery Charger
Hydraulic Pressure: 2756 psi
Hydraulic Capacity: 9.75 Gal.
* SAFETY CHECKLIST:
T
OWING
• Check hitch coupler condition and be sure it secures to the ball hitch.
• Check safety chains.
• Check brake cable.
• Check tires for proper inflation.
• Check all trailer lights.
• Make sure the booms and basket are locked in transit.
43' BOOMLIFT-DC
Bil-Jax XLB-3522A
Brakes: Mechanical Surge
Platform Dimesions: 43" x 30' x 48"
Platform Capacity: 500 lbs.
Outrigger Footprint: 12' x 10'
Stowed Dimension: 77"H x 16'6"L x 5'6"W
Weight: 3150 lbs.
33-090
1
33-090

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XLB-3522A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bil-Jax XLB-3522A

  • Page 1 33-090 43’ BOOMLIFT-DC Bil-Jax XLB-3522A SPECIFICATIONS: 24 Volt –DC Electric Brakes: Mechanical Surge Work Height: 43’2” Platform Dimesions: 43” x 30’ x 48” Platform Height: 37’2” Platform Capacity: 500 lbs. Outrigger Footprint: 12’ x 10’ Maximum Outreach: 22’6” Outreach from Outrigger Edge: 17’5”...
  • Page 2 PERATING 1. D O NOT USE LIFT IN AREAS WHERE USER OR UNIT CAN COME IN CONTACT WITH LIVE POWER (Maintain and assure a proper safety clearance) SOURCE 2. While moving the boom lift into position, make your self aware of obstructions or dangers. Watch for overhead wires and maintain a large zone of safety from the wires.
