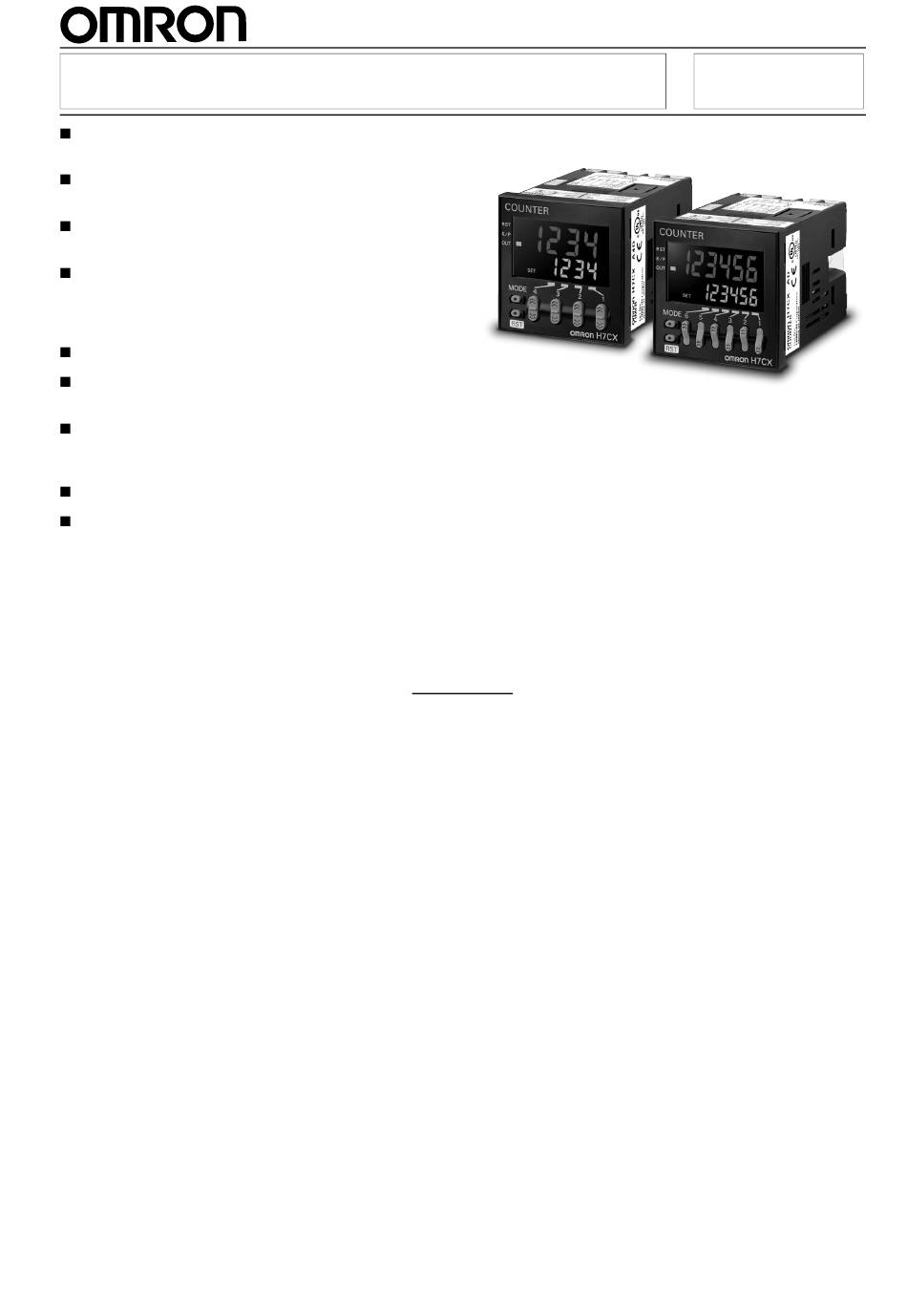

Multifunction Preset Counter
Highly visible display with backlit negative trans-
missive LCD.
Programmable PV color to visually alert when out-
put status changes (screw terminal block models).
Intuitive setting enabled using ergonomic up/down
digit keys (4-digit models) and DIP switch.
Configurable as 1-stage counter, 2-stage counter,
total and preset counter, batch counter, dual
counter, or tachometer. (Configurability varies with
model.)
PNP/NPN switchable input.
Finger-safe terminals (screw terminal block mod-
els).
Meets a variety of mounting requirements:
Screw terminal block models, and pin-style termi-
nal models.
NEMA4/IP66 compliance.
Six-language instruction manual.
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Setting Procedure Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Operation (Counter Function) . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operation (Tachometer Function) . . . . . . . . . . . . . . . . . . . . . . . 25
Operation in Configuration Selection Mode. . . . . . . . . . . . . . . . 31
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Accessories (Order Separately) . . . . . . . . . . . . . . . . . . . . . . . . 37
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4
Contents
H7CX
Advertisement
Table of Contents
Related Manuals for Omron H7CX Series
Summary of Contents for Omron H7CX Series
-
Page 1: Table Of Contents
Multifunction Preset Counter H7CX Highly visible display with backlit negative trans- missive LCD. Programmable PV color to visually alert when out- put status changes (screw terminal block models). Intuitive setting enabled using ergonomic up/down digit keys (4-digit models) and DIP switch. Configurable as 1-stage counter, 2-stage counter, total and preset counter, batch counter, dual counter, or tachometer. -
Page 2: Ordering Information
H7CX H7CX Ordering Information Supported configurations • 1-stage counter • 1-stage counter • 1-stage counter • 1-stage counter with total counter • 2-stage counter • 2-stage counter • 1-stage counter with total • 1-stage counter counter with total counter • 1-stage counter with batch •... -
Page 3: Specifications
H7CX H7CX Specifications Ratings Item H7CX-A4@ H7CX-A@ H7CX-A114@ H7CX-A11@ Classification Preset counter Supported 1-stage counter, 1-stage counter with total counter (selectable) configurations Rated supply voltage 100 to 240 VAC (50/60 Hz), 12 to 24 VDC 100 to 240 VAC (50/60 Hz) (See note 1.) 24 VAC (50/60 Hz)/12 to 24 VDC Operating voltage... - Page 4 H7CX H7CX Ratings (contd.) Item H7CX-A4W@ H7CX-AW@ H7CX-AU@ Classification Preset counter Preset counter/tachometer Supported configurations 1-stage counter, 2-stage counter, 1- 1-stage counter, 2-stage counter, 1-stage counter with total counter, 1-stage counter stage counter with total counter, 1- with batch counter, dual counter, tachometer (selectable) stage counter with batch counter, dual counter (selectable) Rated supply voltage (See note 1.)
