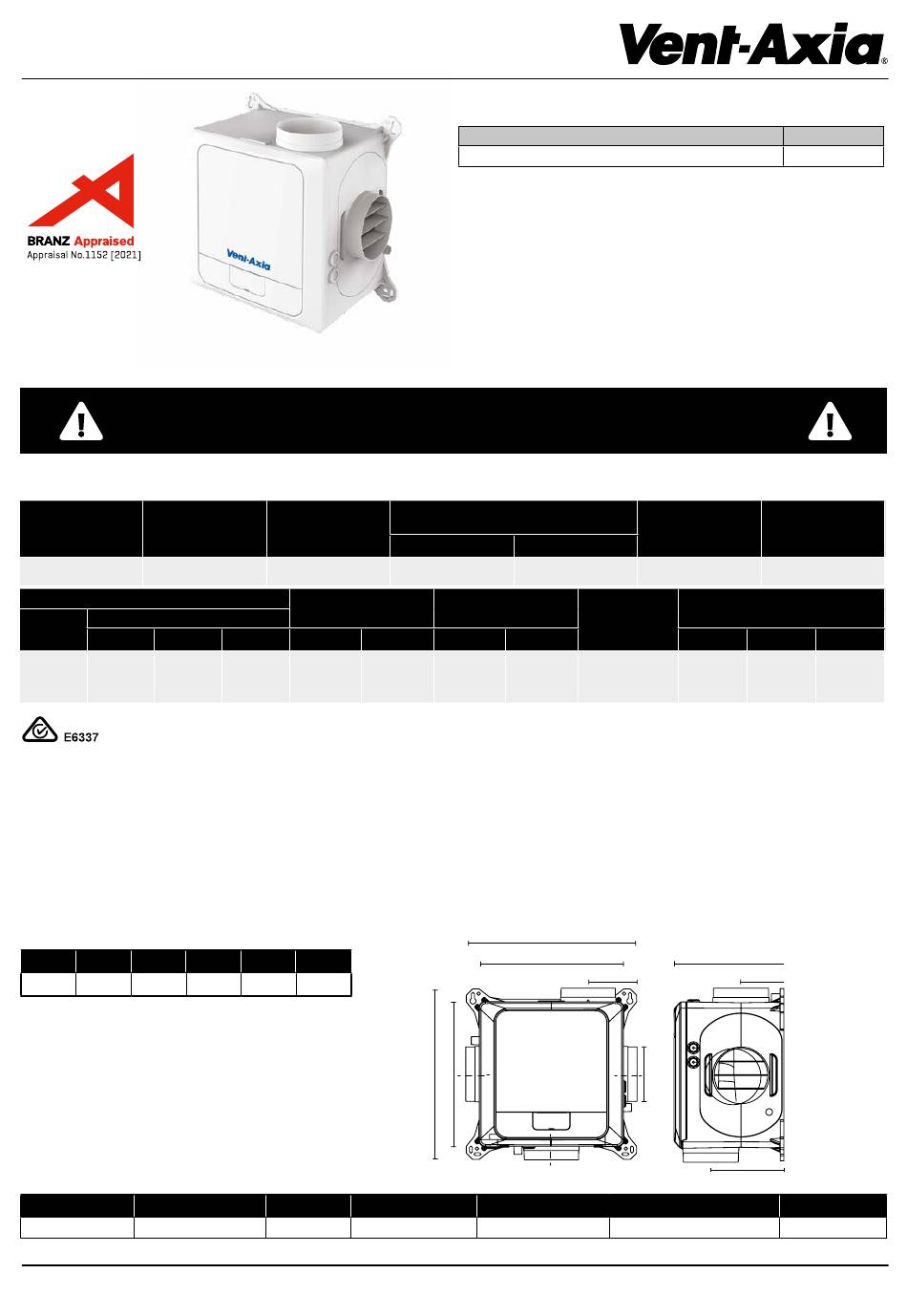

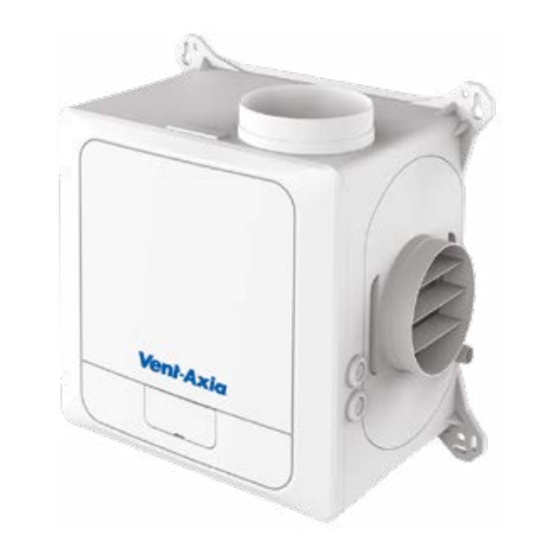

MultiVent Continuous Extract Ventilation
Thank you for purchasing this quality MultiVent continuous extract ventilation system.
To ensure correct function and safety, please read all instructions before using the product and keep all instructions for future reference.
SPECIFICATIONS
Duct
Fan Watts
(mm)
125mm & 150mm
SEC
Value
Class
Average
Warm
B
-26.9
-11.4
Compliance:
AS/NZS60335-2.80:2016
TYPICAL EXTRACTION LOCATIONS - BATHROOMS, TOILETS, LAUNDRIES, KITCHENS
The unit uses a highly efficient backward curved centrifugal motor impeller set and is designed for continuous 24 hour use. Four settable speeds
can be configured to change these speeds based on an integrated sensor or separate switch inputs (not supplied). The unit will run at a normal
flow rate until the humidity sensor or external switch input trigger a speed change. In the case of the switched live and digital inputs, the units
will perform a step change in speed to the appropriate level. In the case of the analog inputs and humidity sensor, the unit can be programmed
to give a proportional response to the change in conditions.
DIMENSIONS (mm)
A
B
C
362
391
111
TECHNICAL
Supply
Max. Operating Temp
220-240V AC, 50Hz
40°C
enquiry@manrose.co.nz | www.manrose.co.nz
When using electrical appliances, basic safety precautions should always
be followed to reduce the risk of fire, electrical shock and personal injury.
Max.
Max.
Fan Pressure
(W)
(Pa)
85
206
Control
Cold
Factor
-54.0
0.65
D
E
F
248
165
97
IP Rating
IPX2
Specifications are subject to change without notice.
Description
MultiVent Continuous Extract Ventilation System
The MultiVent continuous extract ventilation is designed for the simultaneous
ventilation of separate areas in the home and as a multipoint extraction
system for a wide range of commercial applications. The units can be wall,
ceiling or loft mounted. Where the ambient air has a high humidity content
Free Air Fan Performance
(l/s)
98
Max.
Leakage Rates
Typology
Internal %
External %
Local
Demand
<5
<5
Control
B
A
Motor Housing
Impeller & Outer Rotor
Die Cast Aluminium
PBT Plastic
condensate drains are provided.
Specific
Fan Power
(W/l/s)
(m
3
/hr)
505
0.90
Annual Electricity
Consumption
(kWh/a)
Average
0.6
28.3
B
A
C
Ø F
Weatherproof Cowl
150mm Stainless Steel
Product Code
FAN7200
Sound
dB(A)
52
Annual Heating Saved
(kWh/a)
Warm
Cold
12.8
55.4
D
F
E
Ducting
Aluminium Foil
Page 1
Distributed by Simx Limited
Advertisement
Table of Contents
Related Manuals for Vent-Axia FAN7200
Summary of Contents for Vent-Axia FAN7200
- Page 1 Description Product Code MultiVent Continuous Extract Ventilation System FAN7200 The MultiVent continuous extract ventilation is designed for the simultaneous ventilation of separate areas in the home and as a multipoint extraction system for a wide range of commercial applications. The units can be wall, ceiling or loft mounted.
- Page 2 MultiVent Continuous Extract Ventilation MultiVent Continuous Extract Ventilation INSTALLATION MULTIVENT CONTINUOUS EXTRACT VENTILATION SYSTEM INSTALLATION AND ELECTRICAL CONNECTION MUST BE CARRIED OUT BY A REGISTERED ELECTRICIAN Position the unit, taking into consideration the position of the rooms to be ventilated, the exhaust position and the electrical services. Ensure there is adequate access for installation and maintenance.
- Page 3 MultiVent Continuous Extract Ventilation MultiVent Continuous Extract Ventilation INSTALLATION INSTALLATION • Mount the 125mm duct joiner (DCT0037) to the exhaust port of the MultiVent. • Fit the 150mm to 125mm reducer (DCT3239) to the 125mm duct joiner and tape both joints using the supplied duct tape. •...
- Page 4 MultiVent Continuous Extract Ventilation MultiVent Continuous Extract Ventilation ELECTRICAL CONNECTIONS LOW VOLTAGE CONNECTIONS 1. To remove the cover, use a coin or similar; depress the retaining tabs via the slots in the side of the unit. 1. Important: Use 4-core, low voltage, twisted pair, telecoms type cable for accessories. Accessories are connected via the IO (Input Output) PCB; see the Low Voltage Connections diagram in the Main fitting and wiring guide.
- Page 5 MultiVent Continuous Extract Ventilation MultiVent Continuous Extract Ventilation FEATURE DESCRIPTIONS UNIT ADJUSTMENT 1. Commissioning and configuration on all products is supported by the 3 digit user interface Comfort Mode and associated push buttons. If Comfort mode is enabled the unit will behave as follows to all LS inputs 2.
- Page 6 MultiVent Continuous Extract Ventilation MultiVent Continuous Extract Ventilation COMMISSIONING – TYPICAL 3 ROOM SYSTEM For the toilet the MultiVent will use its Extra Low Voltage connections for control. Using a short piece of wire connect a 0.5mm (or similar sized wire) from the GND terminal at the RS485 connection to the COM terminal adjacent to DIN 2 (digital input 2) + connector.
- Page 7 MultiVent Continuous Extract Ventilation SPARE PARTS WARNING: THE FAN AND ANCILLARY CONTROL EQUIPMENT MUST BE ISOLATED FROM THE POWER SUPPLY DURING PART REPLACEMENT. Individual faulty parts should not be replaced due to complexity of assembly. Only the full scroll assembly is replaceable. To remove the scroll assembly, isolate the power, then use a coin or similar to depress the cover retention clips and remove the cover.
