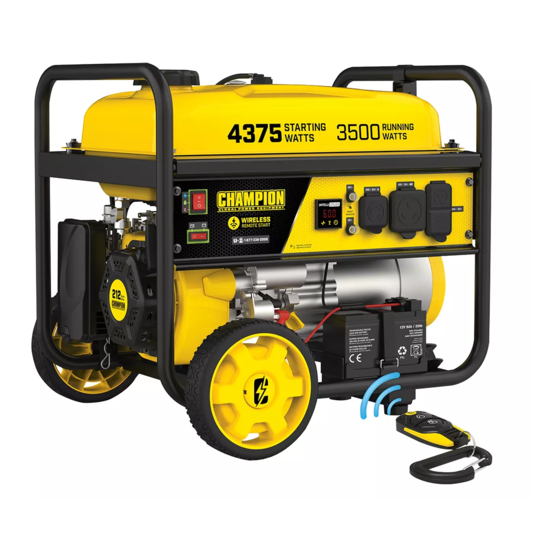

OPERATOR'S MANUAL
MODEL #201072
3650W WIRELESS REMOTE START
GENERATOR
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
This product meets the requirements of the PGMA (Portable Generator Manufacturers' Association) standard ANSI/PGMA G300-2018 (Safety and Performance of
Portable Generators).
Covered by one or more of the following U.S. Patent Numbers: 10,862,414 and other U.S. and foreign patents.
EN
3285-M-OP REV 20210819
Champion Power Equipment, Inc., Santa Fe Springs, CA USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 201072 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Champion 201072

Summary of Contents for Champion 201072

  • Page 1 This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2018 (Safety and Performance of Portable Generators). Covered by one or more of the following U.S. Patent Numbers: 10,862,414 and other U.S. and foreign patents. 3285-M-OP REV 20210819 Champion Power Equipment, Inc., Santa Fe Springs, CA USA...
  • Page 2 CARBON MONOXIDE SAFETY: THE BIG PICTURE As the only safe way to use a portable generator, taking your generator outside is absolutely mandatory to keep your family safe from carbon monoxide. But there’s even more you can do. By educating yourself about all carbon monoxide risks, you’ll be better prepared to protect your family from this colorless, oderless threat.

  • Page 3: Table Of Contents

    TAbLE Of CONTENTS 201072 - 3650W WIRELESS REMOTE START GENERATOR TAbLE Of CONTENTS Maintenance ..........Cleaning the Generator .......... Introduction ........... Changing the Engine Oil .........

  • Page 4: Introduction

    201072 - 3650W WIRELESS REMOTE START GENERATOR INTRODUCTION SAfETY DEfINITIONS Congratulations on your purchase of a Champion Power Equipment The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, (CPE) product. CPE designs, builds, and supports all of our products to strict specifications and guidelines.

  • Page 5: Important Safety Instructions

    IMPORTANT SAfETY INSTRUCTIONS 201072 - 3650W WIRELESS REMOTE START GENERATOR IMPORTANT SAfETY INSTRUCTIONS DANGER  Operate equipment with guards in place. DANGER  Rotating parts can entangle hands, feet, hair, clothing and/or Generator exhaust contains carbon monoxide, a colorless, accessories. Traumatic amputation or severe laceration can odorless, poisonous gas.
  • Page 6 IMPORTANT SAfETY INSTRUCTIONS 201072 - 3650W WIRELESS REMOTE START GENERATOR WARNING CAUTION   Spark from removed spark plug wire can result in fire or Improper treatment or use of the generator can damage it, electrical shock. shorten its life or void the warranty.

  • Page 7: Fuel Safety

    IMPORTANT SAfETY INSTRUCTIONS 201072 - 3650W WIRELESS REMOTE START GENERATOR fuel Safety When operating the generator: DO NOT move or tip the generator during operation. DANGER  When transporting or servicing the generator: GASOLINE AND GASOLINE VAPORS ARE HIGHLY Always check that the fuel valve is in the OFF position and the FLAMMABLE AND EXPLOSIVE.

  • Page 8: Safety And Dataplate Labels

    C: Need add the text height AUTOMATIC SHUTOFF – YOU MUST: This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for APAGADO AUTOMÁTICO – USTED DEBE: outside parties without the explicit consent of Champion Power Equipment.

  • Page 9: Safety Symbols

    IMPORTANT SAfETY INSTRUCTIONS 201072 - 3650W WIRELESS REMOTE START GENERATOR Safety Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 10: Operation Symbols

    IMPORTANT SAfETY INSTRUCTIONS 201072 - 3650W WIRELESS REMOTE START GENERATOR Operation Symbols Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

  • Page 11: Quick Start Label Symbols

    2mm safe margin; to be printed on white substrate 1. Check oil level. This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for outside parties without the explicit consent of Champion Power Equipment.

  • Page 12: Controls And Features

    CONTROLS AND fEATURES 201072 - 3650W WIRELESS REMOTE START GENERATOR CONTROLS AND fEATURES Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference. Generator 1.

  • Page 13: Control Panel

    CONTROLS AND fEATURES 201072 - 3650W WIRELESS REMOTE START GENERATOR Control Panel 1. Fuel Dial – Used to turn fuel ON and turn OFF the generator. RECEPTACLES 2. Intelligauge – Four mode digital meter for displaying voltage, 120V AC, 30A Locking (NEMA L5-30R) frequency, run time, and total run time.

  • Page 14: Intelligauge

    CONTROLS AND fEATURES 201072 - 3650W WIRELESS REMOTE START GENERATOR Intelligauge Four mode digital meter for displaying voltage, frequency, run time, and total run time. Mutli-colored LED indicates CO shutoff or fault. MODE DESCRIPTION Output voltage of the generator. Example: 120 volts Voltage (V) Output frequency in hertz.

  • Page 15: Wireless Remote Control

    The engine will attempt to start (6) times. The RCM controls the Auto-Choke during each attempt to start. If the generator does not start, call Champion Customer Assembly Parts Care team for assistance at 1-877-338-0999.

  • Page 16: Assembly

    ASSEMbLY 201072 - 3650W WIRELESS REMOTE START GENERATOR ASSEMbLY Install the Support Leg 1. Attach the support leg (E) to the generator frame with flange Your generator requires some assembly. This unit ships from our bolts (F) and flange lock nuts (G).

  • Page 17: Add Fuel

    ASSEMbLY 201072 - 3650W WIRELESS REMOTE START GENERATOR NOTICE NOTICE   The recommended oil type for typical use is 5W-30 Once oil has been added, a visual check should show oil about automotive oil. However, using the listed conventional oils 1-2 threads from running out of the fill hole.

  • Page 18: Grounding

    ASSEMbLY 201072 - 3650W WIRELESS REMOTE START GENERATOR Use clean, fresh, regular unleaded gasoline with a minimum WARNING  octane rating of 87 and an ethanol content of 10% or less by volume. y b c Pouring gasoline too fast through the fuel screen may result in gasoline splashing over the generator and operator while DO NOT mix oil with gasoline.

  • Page 19: Operation

    C: Deleted “25 ft./7 m” people or buildings. This artwork belongs to Champion Power Equipment. The contents are confidential and privileged and shall not be disclosed to or used by or for outside parties without the explicit consent of Champion Power Equipment.

  • Page 20: Generator Location

    OPERATION 201072 - 3650W WIRELESS REMOTE START GENERATOR WARNING WARNING   Tampering with the CO Shield system could result in a During operation the muffler and exhaust fumes will become ® hazardous condition and will void your warranty. hot. If adequate cooling and breathing space are not supplied,...

  • Page 21: Setting The Remote Key Fob

    OPERATION 201072 - 3650W WIRELESS REMOTE START GENERATOR Setting the Remote Key fob 4. Push and release the “STOP” $ button on the remote key fob. The red light blinks once to erase the remote program. The remote key fob comes already synchronized to the generator.

  • Page 22: Starting The Engine

    OPERATION 201072 - 3650W WIRELESS REMOTE START GENERATOR Starting the Engine NOTICE  Make certain the generator is on a flat, level surface. If CO Shield detects elevated levels of CO gas resulting in Wireless Remote Start the generator shutting down, Wireless Remote starting will become disabled and will not be able to restart the generator.
  • Page 23 OPERATION 201072 - 3650W WIRELESS REMOTE START GENERATOR 4. Press the SSS button a second time. The generator will 5. Do not over-choke. As soon as engine starts, move the choke attempt to start. There will be (6) starting attempts. After lever to the “RUN”...

  • Page 24: Battery

    OPERATION 201072 - 3650W WIRELESS REMOTE START GENERATOR battery Do Not Overload Generator Capacity NOTICE  Follow these simple steps to calculate the running and starting The supplied 12V battery does re-charge while the engine is watts necessary for your purposes: running, but it is also recommended that the battery be fully 1.

  • Page 25: Stopping The Engine

    OPERATION 201072 - 3650W WIRELESS REMOTE START GENERATOR Stopping the Engine Remote Stop 1. Press the “STOP” button on the remote key fob. NOTICE  If stopped using the SSS button, the generator will remain in standby mode for the next twenty-four (24) hours.

  • Page 26: Operation At High Altitude

    MAINTENANCE 201072 - 3650W WIRELESS REMOTE START GENERATOR MAINTENANCE 1. Begin by raising the folding handle, found on opposite side of wheels. Make certain that the generator is kept clean and stored properly. 2. Using the handle, tilt the end of the generator slightly off the Only operate the unit on a flat, level surface in a clean, dry ground until balanced on the wheels.

  • Page 27: Changing The Engine Oil

    MAINTENANCE 201072 - 3650W WIRELESS REMOTE START GENERATOR Changing the Engine Oil Cleaning and Adjusting the Spark Plug Change oil when the engine is warm. Refer to the oil specification 1. Remove the spark plug cable from the spark plug.

  • Page 28: Cleaning The Spark Arrestor

    MAINTENANCE 201072 - 3650W WIRELESS REMOTE START GENERATOR Generator battery 5. Squeeze in a clean, absorbent cloth to remove all excess oil. 6. Place the filter in the assembly. Your generator is equipped with an automatic battery charging circuit that charges the battery while the engine is running.

  • Page 29: Remote Key Fob Battery

    STORAGE 201072 - 3650W WIRELESS REMOTE START GENERATOR Remote Key fob battery EVERY 50 HOURS OR ANNUALLY — Clean air filter NOTICE  — Change oil if operating under heavy load or in hot – Battery Replacement: CR2016 environments – Clean the battery contacts and also those of the device prior to battery installation.

  • Page 30: Long Term Storage (Over 1 Year)

    STORAGE 201072 - 3650W WIRELESS REMOTE START GENERATOR Removing from Storage NOTICE  If the generator has been improperly stored for a period longer than 30 days with ethanol blended gasoline in the gasoline tank and/or carburetor, all fuel must be drained and the carburetor must be thoroughly cleaned of ethanol build up.

  • Page 31: Specifications

    SPECIfICATIONS 201072 - 3650W WIRELESS REMOTE START GENERATOR SPECIfICATIONS Recommended Engine Oil Type 10W-30 Generator Specifications 5W-30 10W-40 Generator Model ......... .. 201072 5W-30 Full Synthetic Start Type .

  • Page 32: Troubleshooting

    TROUbLESHOOTING 201072 - 3650W WIRELESS REMOTE START GENERATOR TROUbLESHOOTING Problem Cause Solution No fuel. Add fuel. Faulty spark plug. Clean and adjust spark plug or replace. Fill crankcase to the proper level. Low oil level. Place generator on a flat, level surface.
  • Page 33 TROUbLESHOOTING 201072 - 3650W WIRELESS REMOTE START GENERATOR Problem Cause Solution Out of fuel. Fill fuel tank. Fill crankcase to the proper level. Place generator Low oil level. on a flat, level surface. Move generator to an open, outdoor area. Point exhaust away from people and buildings.
  • Page 34 TROUbLESHOOTING 201072 - 3650W WIRELESS REMOTE START GENERATOR Problem Cause Solution Starting the generator within 1 minute Wait 1 minute before trying to restart the Both CO Shield® LEDs not blinking ten after being manually shutoff, not a CO generator. The LEDs should then blink ten (10) (10) times upon start up.

  • Page 35: Warranty

    To complete registration you will need to include a copy of the – Problems caused by parts that are not original Champion purchase receipt as proof of original purchase. Proof of purchase Power Equipment parts.
  • Page 36 AND THE UNITED STATES ENVIRONMENT PROTECTION AGENCY (U.S. EPA) EMISSION CONTROL SYSTEM WARRANTY Your Champion Power Equipment (CPE) engine complies with U.S. EPA emission regulations. YOUR WARRANTY RIGHTS AND OBLIGATIONS: The US EPA AND CPE are pleased to explain the Federal Emission Control Systems Warranty on your 2021 small off-road engine (SORE) and engine powered equipment.
  • Page 37 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System (ECS) Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1997 and later model year small off-road engines (SORE). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
  • Page 38 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
