Summary of Contents for Dormakaba RTS Package 26 Series

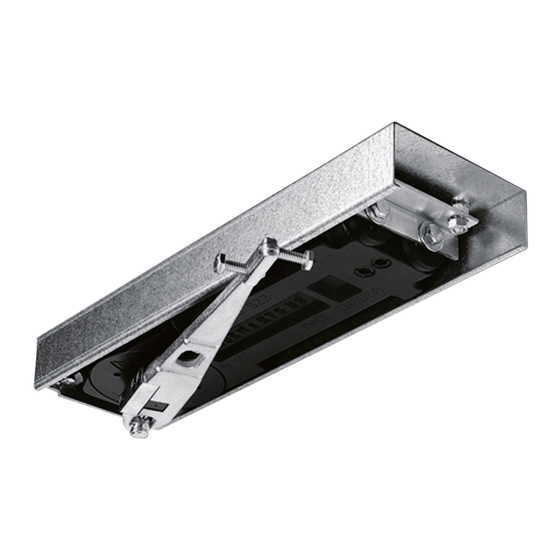

- Page 1 RTS Series Package 26 With slotted angle bracket Offset slide arm aluminum door and frame - pivots Installation instructions 08279471 – 02-2020 | EN |...
- Page 2 RTS88 Package 26 with Slotted Angle Bracket Table of Contents Installation Instructions Table of contents Installation instructions Prepare frame and install closer Prepare top of door Adjustments Adjust closing speeds Optional 8511 applied stop (or stop by others) 5...
- Page 3 RTS88 Package 26 with Slotted Angle Bracket Frame Installation Instructions Closer Installation instructions 1.1 Prepare frame and install closer Fig.1 Mounting bracket Header Angle bracket Closer Side jamb Cover plate Fillister head machine screws (x2) 1.1.1 Prepare header and side jamb according to 1.1.6...
- Page 4 RTS88 Package 26 with Slotted Angle Bracket Top of door Installation Instructions 1.2 Prepare top of door Fig.2 Header Closer Side jamb Cover plate 1/4-20 socket head Slide block cap screw Applied stop Slide block pin (not shown) Button...
- Page 5 RTS88 Package 26 with Slotted Angle Bracket Adjustments - closing speeds Installation Instructions 8511 applied stop Adjustments 2.1 Adjust closing speeds Fig.3 Valve “B” “A” “B” Valve “A” 2.1.1 Valve “A” - controls closing speed from 2.1.2 Valve “B” - increases closing speed from maximum opening angle to 0°.
- Page 6 DORMA USA, Inc. T: 800-523-8483 www.dormakaba.us...
