- Page 1 KeMes A2xx Angle measuring device Operating instructions V 1.01 Translation of the original manual...
- Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Gewerbepark Urfahr, 4041 Linz, Austria, Phone: +43 732 7090-0, KEBA AG Headquarters: Fax: +43 732 7309-10, keba@keba.com For information about our subsidiaries please look at www.keba.com.
- Page 3 A2xx Record of Revision Record of Revision Changed Version Date Change in chapter Description 1.00 07-2019 Newly created 1.01 03-2020 Several Several adjusments Operating instructions V1.01 © KEBA...
- Page 4 A2xx Operating instructions V1.01 © KEBA...
-
Page 5: Table Of Contents
Operating button ................Menu structure ....................Operation and handling ..................... General instructions ..................Measurement principle and measurement accuracy ........5.2.1 Positioning ..................Measurability....................Selection menu on the display ................. Operating modes ..................... 5.5.1 Manual ....................Operating instructions V1.01 © KEBA... - Page 6 Standards for the American market ........... 10.2.2 Standards for the canadian market............ 10.2.3 Information for the Canadian market ..........10.3 Regulations ...................... 11 EU Declaration of Conformity ................... 12 FCC Supplier's Declaration of Conformity............... 13 Anhang: Apache License ..................Operating instructions V1.01 © KEBA...
- Page 7 A2xx Table of contents Index ..........................Operating instructions V1.01 © KEBA...
- Page 8 Table of contents A2xx Operating instructions V1.01 © KEBA...
-
Page 9: Introduction
This documentation must be legible and available to the specified personnel and must be read and understood by them. Operating instructions V1.01 © KEBA... -
Page 10: Contents Of The Document
® The Bluetooth trademark and logos are registered trademarks of Bluetooth SIG, Inc. and each use of this trademark by KEBA is licensed. Other trade- marks and brands are the property of their respective owners. Operating instructions V1.01 © KEBA... -
Page 11: Safety Notes
This symbol reminds you of the possible consequences of touching electro- statically sensitive components. Safety information Describes important safety-related requirements or informs about essential safety-related correlations. Information Identifies practical tips and useful information. No information that warns about potentially dangerous or harmful functions is contained. Operating instructions V1.01 © KEBA... -
Page 12: General Safety Notes
The device is equipped with magnets. Magnets can affect the function of pacemakers and implanted defibrillators. A pacemaker can be switched into test mode and cause discomfort. A defibrillator may stop working in some cases. Operating instructions V1.01 © KEBA... -
Page 13: Safety Instructions For Device Maintenance
If this device is damaged, the device must be taken out of commission and sent to our service partner for repair. The device must not be opened. Only the maintenance work expressly permitted by KEBA may be performed (see Chap. "Maintenance"). Operating instructions V1.01... -
Page 14: Description Of The Device

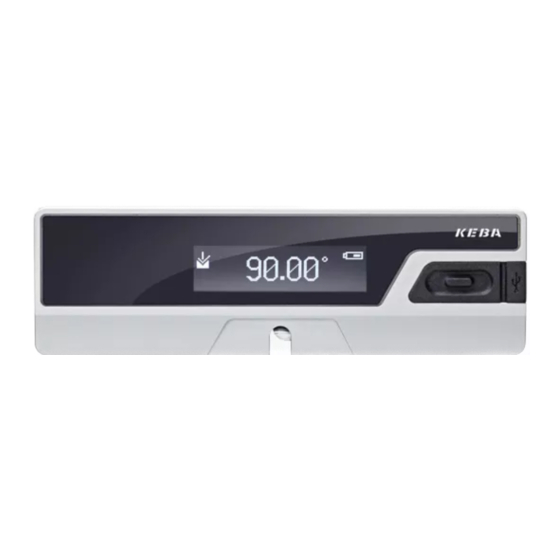

Fig. 3-1: Front view ... Display ... Operating button ... Cover of USB or charging socket ... Output for laser radiation (mirror) Rear view Fig. 3-2: Rear view ... Type plate ... Magnets ... Recesses for measuring aid Operating instructions V1.01 © KEBA... -
Page 15: Top View
... UL certification ... CE mark ... Laser warning plate ... Laser class ... Do not look into the beam ... Please observe instructions ... Battery warning symbol Operating instructions V1.01 © KEBA... -
Page 16: Overview Kemes A2Xx Versions
Short description in various languages ● 1 measuring aid with centering adapter ● 1 USB power supply with additional adapter for different countries (op- tional) ● 1 USB cable ● 1 Bluetooth USB dongle (optional) Operating instructions V1.01 © KEBA... -
Page 17: Displays And Operating Elements
Increase set value Press and hold ● Switch from individual measurement to continuous measurement ● Execute selected action ● Navigate backward within the menu level Press 1x briefly, then press and hold ● Reduce set value Operating instructions V1.01 © KEBA... -
Page 18: Menu Structure
Bluetooth settings Settings (Format, Type, Precision, Log, Clock, AutoOff, Brightness, 4 / 5 Settings MStartTrig, MStopTrig, MSlow, MSpeed, MSens, MAccurracy, MSym- Refl, Disc, Reset) 5 / 5 ErrLog Error memory for messages that have occurred Operating instructions V1.01 © KEBA... -
Page 19: Operation And Handling
These areas are called measurement fields. Thus, users can identify during measurement where the exact measurement position is, allowing them to modify the position of the device as necessary. Note that this is a point mea- Operating instructions V1.01 © KEBA... - Page 20 If a measurement takes place on a machine, the legs of thin sheets have the tendency to vibrate or reverberate Vibrations when relaxing. Make sure that the sheet metal legs do not vibrate during the measurement operation. Operating instructions V1.01 © KEBA...
-
Page 21: Positioning
Measurement is not possible on bent workpieces or in the bending ra- dius. Information For an exact measurement, a minimum distance of 20 mm between the de- vice and the surface of the workpiece is required. Fig. 5-7: Examples of positioning using the measuring aid Operating instructions V1.01 © KEBA... -
Page 22: Measurability
Not measurable / hard to Surface Easy to measure measure Smooth surface Sheets with protective foil Clean surface (Heavily) scaled sheets Electrolytically galvanized sheets for machine reading Painted sheets Enameled sheets Pickled surface Mechanically treated surface Operating instructions V1.01 © KEBA... -
Page 23: Selection Menu On The Display
Switch to the next menu level or start an action Press 2x briefly Exit a menu level or cancel an action Press and hold Navigate forward within the menu level Press 1x briefly, then Navigate backward within the menu level press and hold Operating instructions V1.01 © KEBA... - Page 24 Downward movement detected (supplementary angle) Machine Result of automatic measurement (internal angle) Result of automatic measurement (supplementary angle) Automatic continuous measurement for setting up the de- vice started Automatic continuous measurement (internal angle) Automatic continuous measurement (supplementary an- gle) Operating instructions V1.01 © KEBA...
- Page 25 12.07.2018 Clock 09:36:39 Time for automatic switch-off from 1 to 30 minutes, default setting: 5 Menu 6/16 AutoOff AutoOff Adjusting the display brightness from 0 to 16, default set- ting: 8 Menu 7/16 Brightness Brightness Operating instructions V1.01 © KEBA...
- Page 26 On: Reflections that are not symmetrical to the vertical MSymRefl axis are filtered. Only symmetrical reflections are evalu- ated for the angle value measurement. (Default setting) Off: All reflections are evaluated for the angle value mea- surement. Operating instructions V1.01 © KEBA...
-
Page 27: Operating Modes
At the end of the measurement, the current angle is indicated on the display. 5.5.2 Machine In the operating mode, the angle at the press brake is measured. Machine For this purpose, the device must be attached to the upper tool. Operating instructions V1.01 © KEBA... -
Page 28: Execution Of The Manual Measurement
Angle Minimum leg length 30° 50 mm 60° 35 mm 90° 25 mm 120° 20 mm 150° 10 mm Installation of the measuring aid To install the measuring aid on the device, proceed as follows: Operating instructions V1.01 © KEBA... - Page 29 7) Hold the device still until the measurement is complete and the laser switches off automatically. The measured result can be read off the display after the measurement has ended. The laser is automatically switched off after the measurement. Operating instructions V1.01 © KEBA...
-
Page 30: Carrying Out An Automatic Measurement
For more information, see the Downloads area of the KEBA website www.keba.com/kemes-downloads. ● Set a minimum opening stroke of 50 mm to achieve sufficient velocity to trigger the measurement. - Page 31 For more information, see the Downloads area of the KEBA website www.keba.com/kemes-downloads. If assembly on a vertical surface is not possible (e.g. for long, pointed tools...
- Page 32 If the pressing speed is low or the press beam stroke is short, the motion sensor of the device does not trigger. In this case, the parameters for trig- gering the measurement must be adjusted. Operating instructions V1.01 © KEBA...
-
Page 33: Data Recording And Personalization
● The following format was used for the date: dd.MM.yyyy ● The following format was used for the time of measurement: hh:mm:ss Day (2-digit) Month (2-digit) yyyy Year (4-digit) Hour (2-digit, 24-hour format) Minute (2-digit) Operating instructions V1.01 © KEBA... - Page 34 In order to disconnect the device from the PC, proceed as follows: 1) Briefly press the operating button on the device once. The message appears on the display. DISC-- Connect? 2) Unplug the USB cable from the device and PC. Operating instructions V1.01 © KEBA...
-
Page 35: Bluetooth Wireless Interface
2) Enter the connection key at the receiver within 30 seconds. The set up of the wireless connection is continued, and, in addition to the Bluetooth icon, the connection quality is displayed (in 4 levels). Operating instructions V1.01 © KEBA... -
Page 36: Kemes A205
(in 4 levels). Information Only one device and one receiver may be active and within range when es- tablishing the connection. Otherwise, clear assignment of the device will not be possible. Operating instructions V1.01 © KEBA... - Page 37 The icon for the connection quality flashes while this is being done. In this case, the linkage can be deleted by switching the Bluetooth connection on and off again. Operating instructions V1.01 © KEBA...
-
Page 38: Diagnostics
Caution If the error does not go away or cannot be acknowledged, the device must be sent back to the service partner for diagnostics and repair. Operating instructions V1.01 © KEBA... -
Page 39: Maintenance
When charging KeMes A2xx, faults on the power supply in an industrial en- vironment line can impair the charging process. If this impairment occurs repeatedly, then charging in a business environment, e.g. in an office space, as well as selective testing of the network quality is recommended. Operating instructions V1.01 © KEBA... -
Page 40: Maintenance And Service
50% battery capacity. ● If the device is not used for an extended period of time, the battery ca- pacity must be at a minimum of 50% before putting into storage. Operating instructions V1.01 © KEBA... -
Page 41: Disposal
Electrical and electronic devices including their accessories must be dis- posed properly. The materials are recyclable in accordance with their label- ing. You can make an important contribution to protecting our environment by reusing, renewing and recycling materials and old appliances. Operating instructions V1.01 © KEBA... -
Page 42: Technical Data
Measuring positions with the following measured distances between the mirror and workpiece surface: 25 mm and 25 mm / 100 mm and 100 mm / 25 mm and 140 mm / 140 mm and 25 mm Operating instructions V1.01 © KEBA... -
Page 43: Environmental Conditions
IEC 60825-1:2014, Table 10, Condition 3: pulse duration in orifice plate) Power supply unit Designation: Switching Power Supply Model: PSAI05R-050QL6 Input voltage: 100 - 240 V AC, 50 - 60 Hz Input current: max. 0.3 A Operating instructions V1.01 © KEBA... -
Page 44: Usb Cable
Dongle Wireless interface: Bluetooth Low Energy v4.0 Antenna: Integrated Connection: Via USB (virtual COM port emulation) Measuring aid with centering adapter Dimensions (H x L x W): 14 mm x 158 mm x 65 mm Operating instructions V1.01 © KEBA... -
Page 45: Dimensions, Weight
Fig. 9-10: Front view of measuring aid with centering adapter ... Guide tab for attaching to the de- ... Centering adapter vice Dimensions, weight Height: 162 mm Width: 49 mm Depth: 15 mm Weight: 225 g Operating instructions V1.01 © KEBA... -
Page 46: Directives, Standards And Regulations
This device complies with Industry Canada's licence-exempt RSSs. opera- tion is subject to the following two conditions: 1) this device may not cause interference, and 2) this device must accept any interference, including interference that may cause undesired operation of the device. Operating instructions V1.01 © KEBA... -
Page 47: Information For The Canadian Market
In order to comply with the duty to communicate information in accordance with Article 33 of the REACH regulation, detailed information on the ingredi- ents are provided on our web page. For more detailed information, please contact KEBA. Operating instructions V1.01 © KEBA... -
Page 48: Eu Declaration Of Conformity
EU Declaration of Conformity A2xx EU Declaration of Conformity Operating instructions V1.01 © KEBA... - Page 49 A2xx EU Declaration of Conformity Operating instructions V1.01 © KEBA...
-
Page 50: Fcc Supplier's Declaration Of Conformity
FCC Supplier's Declaration of Conformity A2xx FCC Supplier's Declaration of Conformity Operating instructions V1.01 © KEBA... -
Page 51: Anhang: Apache License
"Not a Contribution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work Operating instructions V1.01 © KEBA... - Page 52 You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions. Operating instructions V1.01 © KEBA...
- Page 53 License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Operating instructions V1.01 © KEBA...
- Page 54 Cover of charging socket Navigation........... 23 Position ......... 14, 15 Structure .......... 24 Minimum leg length ......... 28 DataMatrix code General .......... 16 Dimensions, weight Technical data ........ 45 Display............. 17 Menu ........... 23 Position .......... 14 Operating instructions V1.01 © KEBA...
- Page 55 Machine (automatic operating mode) . 27 Scope of delivery ........ 16 Manual (manual operating mode).. 27 Status indicator........ 17 Operation.......... 17 Order key.......... 16 Type plate Output for laser radiation General .......... 15 Position .......... 14 Position .......... 14 Operating instructions V1.01 © KEBA...
- Page 56 Index A2xx Operating instructions V1.01 © KEBA...
