- Page 1 KeMes A100 Angle measuring device Operating instructions V 1.03 Translation of the original manual...
- Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Gewerbepark Urfahr, 4041 Linz, Austria, Phone: +43 732 7090-0, KEBA AG Headquarters: Fax: +43 732 7309-10, keba@keba.com For information about our subsidiaries please look at www.keba.com.
- Page 3 1.02 07-2019 vice; battery charg- proved; changes in the structure of the menu; re- ing; operation and moval of the MachineS and MachineE operating handling; modes; 1.03 03-2020 Several Several adjusments Operating instructions V1.03 © KEBA...
- Page 4 A100 Operating instructions V1.03 © KEBA...
-
Page 5: Table Of Contents
Operation and handling ..................... General instructions ..................Measurement principle and measurement accuracy ........5.2.1 Positioning ..................Measurability....................Selection menu on the display ................. Operating modes ..................... 5.5.1 Manual ....................5.5.2 Machine ..................... Execution of the manual measurement ............Operating instructions V1.03 © KEBA... - Page 6 Standards for the American market ........... 10.2.2 Information for the Canadian market ..........10.3 Regulations ...................... 11 EU Declaration of Conformity ................... 12 FCC Supplier's Declaration of Conformity............... 13 Anhang: Apache License ..................Index ..........................Operating instructions V1.03 © KEBA...
-
Page 7: Introduction

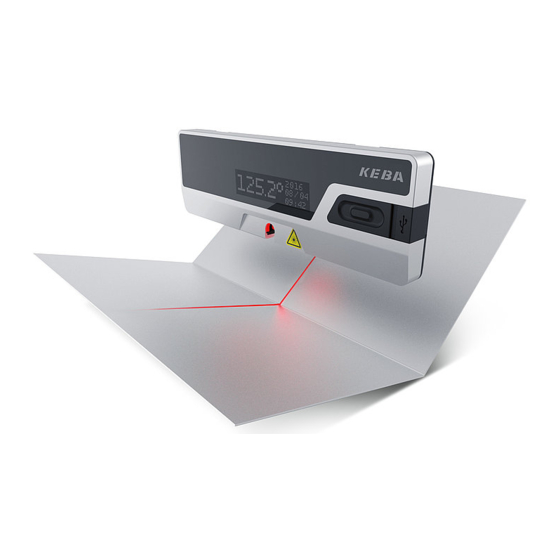

KeMes A100 is intended for measuring angles between two flat surfaces and measuring sheet metal parts. KeMes A100 is intended for indoor use. KeMes A100 is designed for applications in the industrial setting. It may only be used for the types of use detailed in the technical description and only in compliance with the described technical framework conditions. -
Page 8: Contents Of The Document
The pictured devices used in this manual are visual examples. The devices used by you may differ in their appearance. 1.4.1 Contents of the document ● Description of the device ● Operation ● Technical data Operating instructions V1.03 © KEBA... -
Page 9: Safety Notes
This symbol reminds you of the possible consequences of touching electro- statically sensitive components. Safety information Describes important safety-related requirements or informs about essential safety-related correlations. Information Identifies practical tips and useful information. No information that warns about potentially dangerous or harmful functions is contained. Operating instructions V1.03 © KEBA... -
Page 10: General Safety Notes
Safety notes A100 General safety notes Read and observe all instructions in order to work with KeMes A100 safely and without risk. The warning plates on the device must never be rendered illegible. WARNING! The following areas of application are expressly excluded for KeMes A100: ●... -
Page 11: Safety Instructions For Device Maintenance
If this device is damaged, the device must be taken out of commission and sent to our service partner for repair. The device must not be opened. Only the maintenance work expressly permitted by KEBA may be performed (see Chap. "Maintenance"). Operating instructions V1.03... -
Page 12: Description Of The Device
Fig. 3-1: Front view ... Display ... Operating button ... Cover of USB or charging socket ... Output for laser radiation (mirror) Rear view Fig. 3-2: Rear view ... Type plate ... Magnets ... Recesses for measuring aid Operating instructions V1.03 © KEBA... -
Page 13: Top View
... UL certification ... CE mark ... Laser warning plate ... Laser class ... Do not look into the beam ... Please observe instructions ... Battery warning symbol Operating instructions V1.03 © KEBA... -
Page 14: Datamatrix Code
The following accessories are included in the scope of delivery: ● 1 storage case ● Short description in various languages ● 1 measuring aid with centering adapter ● 1 USB power supply with additional adapter for different countries (op- tional) ● 1 USB cable Operating instructions V1.03 © KEBA... -
Page 15: Displays And Operating Elements
A100 Displays and operating elements Displays and operating elements Operating panel The operator panel is on the front side of the KeMes A100. It is used for op- eration and status indication. Fig. 4-6: Control panel The operator panel consists of: ●... -
Page 16: Menu Structure
Settings (Format, Type, Precision, Log, Clock, AutoOff, Brightness, 3 / 4 Settings MStartTrig, MStopTrig, MSlow, MSpeed, MSens, MAccurracy, MSym- Refl, Disc, Reset) 4 / 4 ErrLog Error memory for messages that have occurred Operating instructions V1.03 © KEBA... -
Page 17: Operation And Handling
These areas are called measurement fields. Thus, users can identify during measurement where the exact measurement position is, allowing them to modify the position of the device as necessary. Note that this is a point mea- Operating instructions V1.03 © KEBA... - Page 18 Influencing factor Description The longitudinal axis of the housing of KeMes A100 must be aligned parallel to the bending edge and tilted as little as Alignment of the device to the possible in order to be symmetrical between the two legs of workpiece the workpiece.
-
Page 19: Positioning
5.2.1 Positioning Since the measurement principle of KeMes A100 is based on the reflection of a laser beam, attention must be paid to the correct positioning of the de- vice. Measurement is not possible on bent workpieces or in the bending ra- dius. -
Page 20: Measurability
Not measurable / hard to Surface Easy to measure measure Smooth surface Sheets with protective foil Clean surface (Heavily) scaled sheets Electrolytically galvanized sheets for machine reading Painted sheets Enameled sheets Pickled surface Mechanically treated surface Operating instructions V1.03 © KEBA... -
Page 21: Selection Menu On The Display
Mechanically processed surfaces can be measured when a protective film is attached. Selection menu on the display KeMes A100 has a selection menu on the display. During operation, the cur- rent status is shown on the display. The operating button can be used to navigate the menu. - Page 22 Downward movement detected (supplementary angle) Machine Result of automatic measurement (internal angle) Result of automatic measurement (supplementary angle) Automatic continuous measurement for setting up the de- vice started Automatic continuous measurement (internal angle) Automatic continuous measurement (supplementary an- gle) Operating instructions V1.03 © KEBA...
- Page 23 MStopTrig parameter and a constant angle is measured. MSpeed motion : the measurement stops as soon as the set trip limit of the parameter has been exceeded and a MSens constant angle is measured. Operating instructions V1.03 © KEBA...
- Page 24 If the value is too high, the motion of the press beam may no longer be de- tected; at a value that is too low, faulty triggering is possible. Use in the operating mode in mode chine move down move up Operating instructions V1.03 © KEBA...
-
Page 25: Operating Modes
Machine For this purpose, the device must be attached to the upper tool. , KeMes A100 starts by calibrating the acceleration sensor. The Machine display indicates " " until the idle state has been reached. When the upper tool moves downward, the measurement operation is started. -
Page 26: Execution Of The Manual Measurement
2) Fold the lower part of the device in the direction of the measuring aid so that the two lower bending lugs of the measuring aid rest within the lower recesses of the device (2). Information If installed correctly, the measuring aid rests on the device completely. Operating instructions V1.03 © KEBA... - Page 27 1) Press and hold the operating button until appears on the display. 2) Carry out the measurement. The measurement can be terminated by pressing the operating button 2x briefly. Operating instructions V1.03 © KEBA...
-
Page 28: Carrying Out An Automatic Measurement
1) Create a gap of approx. 6 mm in the upper tool of the press brake. 2) Attach KeMes A100 so that the laser beam can penetrate the gap unob- structed and hit both legs of the workpiece at an angle of 90°. - Page 29 For more information, see the Downloads area of the KEBA website www.keba.com/kemes-downloads. If assembly on a vertical surface is not possible (e.g. for long, pointed tools...
- Page 30 In order to start the continuous measurement, proceed as follows: 1) Press and hold the operating button until appears on the display. 2) Carry out the measurement. The measurement can be terminated by pressing the operating button 2x briefly. Operating instructions V1.03 © KEBA...
-
Page 31: Data Recording And Personalization
Personalization KeMes A100 can be personalized. This personalization is shown when switching on the device. In order to personalize KeMes A100, a connection to the internal memory of the device must be established. The file can then be edited using KEMES.INI... - Page 32 NAME0=Company ;user name line 1(max. 16 char.) NAME1=Operator After editing, the file must be saved and the connection to KeMes A100 must be disconnected. The next time KeMes A100 is switched on, the entered text appears on the display. Connecting the device and PC...
-
Page 33: Diagnostics
Caution If the error does not go away or cannot be acknowledged, the device must be sent back to the service partner for diagnostics and repair. Operating instructions V1.03 © KEBA... -
Page 34: Maintenance
Information When charging KeMes A100, faults on the power supply in an industrial en- vironment line can impair the charging process. If this impairment occurs repeatedly, then charging in a business environment, e.g. in an office space, as well as selective testing of the network quality is recommended. -
Page 35: Maintenance And Service
● Do not submerge the device in liquids. In case of non-use, it is recommended to keep KeMes A100 in its included case to protect the device from dust. If the device malfunctions despite careful preparation and test procedures, it must be sent back to the service partner for repair. -
Page 36: Disposal
Electrical and electronic devices including their accessories must be dis- posed properly. The materials are recyclable in accordance with their label- ing. You can make an important contribution to protecting our environment by reusing, renewing and recycling materials and old appliances. Operating instructions V1.03 © KEBA... -
Page 37: Technical Data
Measuring positions with the following measured distances between the mirror and workpiece surface: 25 mm and 25 mm / 100 mm and 100 mm / 25 mm and 140 mm / 140 mm and 25 mm Operating instructions V1.03 © KEBA... -
Page 38: Environmental Conditions
IEC 60825-1:2014, Table 10, Condition 3: pulse duration in orifice plate) Power supply unit Designation: Switching Power Supply Model: PSAI05R-050QL6 Input voltage: 100 - 240 V AC, 50 - 60 Hz Input current: max. 0.3 A Operating instructions V1.03 © KEBA... -
Page 39: Usb Cable
Fig. 9-10: Front view of measuring aid with centering adapter ... Guide tab for attaching to the de- ... Centering adapter vice Dimensions, weight Height: 162 mm Width: 49 mm Depth: 15 mm Weight: 225 g Operating instructions V1.03 © KEBA... -
Page 40: Directives, Standards And Regulations
Consult the dealer or an experienced radio/TV technician for help. 10.2.2 Information for the Canadian market This Class B digital apparatus meets all requirements of the Canadian Inter- ference-Causing Equipment Regulations. 10.3 Regulations Regulation (EC) No. 1907/2006 REACH EU chemicals regulation Operating instructions V1.03 © KEBA... - Page 41 In order to comply with the duty to communicate information in accordance with Article 33 of the REACH regulation, detailed information on the ingredi- ents are provided on our web page. For more detailed information, please contact KEBA. Operating instructions V1.03 © KEBA...
-
Page 42: Eu Declaration Of Conformity
EU Declaration of Conformity A100 EU Declaration of Conformity Operating instructions V1.03 © KEBA... -
Page 43: Fcc Supplier's Declaration Of Conformity
A100 FCC Supplier's Declaration of Conformity FCC Supplier's Declaration of Conformity Operating instructions V1.03 © KEBA... -
Page 44: Anhang: Apache License
"Not a Contribution." "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work Operating instructions V1.03 © KEBA... - Page 45 You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any separate license agreement you may have executed with Licensor regarding such Contributions. Operating instructions V1.03 © KEBA...
- Page 46 License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License. Operating instructions V1.03 © KEBA...
-
Page 47: Index
Display............. 15 Position .......... 12 Menu ........... 21 Operating modes Position .......... 12 Machine (automatic operating mode) . 25 Manual (manual operating mode).. 25 Errors............ 33 Operation.......... 15 Output for laser radiation Position .......... 12 Operating instructions V1.03 © KEBA... - Page 48 Index A100 Recesses for measuring aid Type plate Position .......... 12 General .......... 13 Position .......... 12 Scope of delivery ........ 14 Status indicator........ 15 Operating instructions V1.03 © KEBA...
