Summary of Contents for Keba KeContact E10

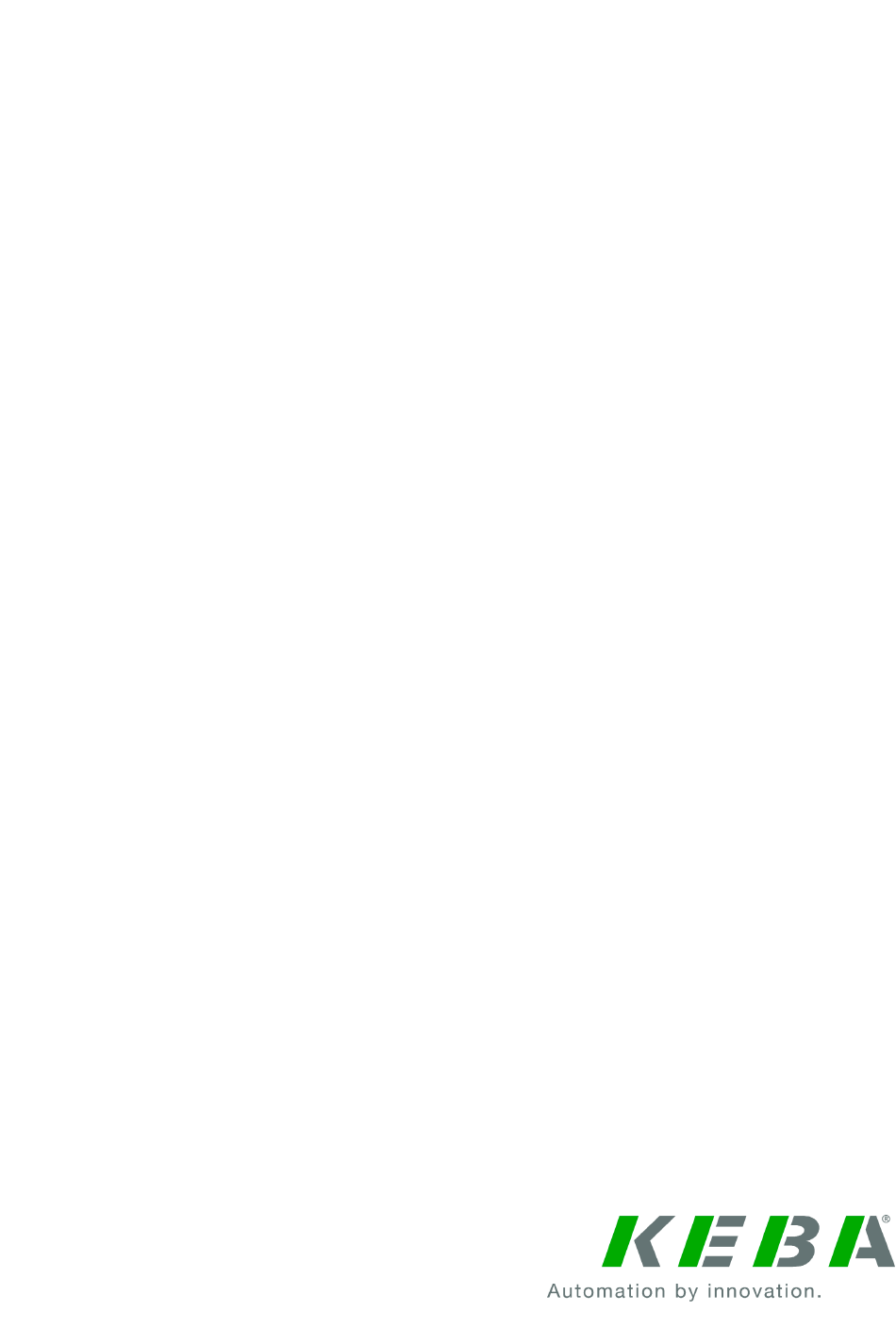

- Page 1 KeContact Energy meter Installation manual V 1.00 Original instructions...
- Page 2 Specifications are subject to change due to further technical developments. Details presented may be subject to correction. All rights reserved. Reindlstraße 51, 4040 Linz, Austria, www.keba.com/emobility KEBA Energy Automation GmbH +43 732 7090-0, +43 732 7309-10, kecontact@keba.com For information about KEBA and our subsidiaries please look at www.keba.com.
-
Page 3: Table Of Contents
Restarting the device ..................Resetting the device to factory settings ............Behavior in the event of voltage drop .............. Configuration ......................Measuring interval (register 256) ..............Split-core current transformer (register 257)............ Network configuration (registers 259 - 267)............. V1.00 © KEBA 2023... - Page 4 13.2 Power supply ....................13.3 Ambient conditions................... 13.4 Interfaces ......................13.5 Dimensions, weight..................13.6 Clamp current transformer ................14 Directives, standards and regulations ..............14.1 EU Directives and Standards................15 Declaration of conformity ..................Index ........................... V1.00 © KEBA 2023...
-
Page 5: Introduction
This symbol reminds you of the possible consequences of touching electro- statically sensitive components. Information Identifies practical tips and useful information. No information that warns about potentially dangerous or harmful functions is contained. V1.00 © KEBA 2023... -
Page 6: Purpose Of The Document
Unauthorized changes, conversion work or repairs as well as opening the device are prohibited. The intended use of the device always includes the compliance with the en- vironmental conditions for which this device was developed. V1.00 © KEBA 2023... -
Page 7: Information On This Document
1.5.1 Contents of the document ● Description of the device ● Installation ● Electrical installation ● Configuration 1.5.2 Not contained in this document ● Troubleshooting Additional documentation Manuals and additional information are available on our website: V1.00 © KEBA 2023... -
Page 8: Safety Notes
● De-energize the device before cleaning it, and only clean it using a dry cloth. Persons who, due to their special training, expertise and experience as well as knowledge of current standards, are able to assess the work per- formed and the possible hazards. V1.00 © KEBA 2023... - Page 9 Caution Damage in case of faulty data connection Devices that process the measurement data from KC-E10 must ensure that the absence of measured values or faulty measured values do not lead to any damage. V1.00 © KEBA 2023...
-
Page 10: Scope Of Delivery
Scope of delivery Scope of delivery The following parts are included in the scope of delivery: Description Number KC-E10 4-pin connection plug 6-pin connection plug Split-core current transformer (63 A) ● KC-E10-1P-63A ● KC-E10-3P-63A Installation instructions V1.00 © KEBA 2023... -

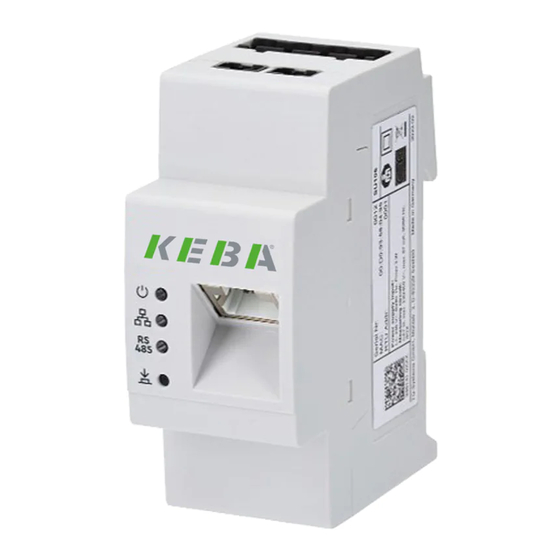

Page 11: Description
1- or 3-phase power measurement is possible. Front view Fig. 4-1: Front side ... "Status" LED ... "Network" LED ... Not available ... Reset button ... Ethernet interface Top view Fig. 4-2: Top ... Power supply ... Not available (internal service inter- face) V1.00 © KEBA 2023... -
Page 12: Bottom View
60417-6182) ing to ISO 7000-0434B) ... Country of manufacture ... WEEE marking ... Reference to product manual ... Equipment class II(according to IEC 60417-5172) ... Product designation ... Device ID ... Serial number ... MAC address V1.00 © KEBA 2023... -
Page 13: Displays And Operating Elements
Ethernet link is active. Flashing green (fast) Communication is in progress. Flashing red (slow) Communication error. "Service interface" LED Display Meaning Dark No activity on the interface. Flashing green (fast) Communication is in progress. Flashing red (slow) Communication error. V1.00 © KEBA 2023... -
Page 14: Reset Button
● Restarting the device (see 8.1 Restarting the device) ● Resetting the device to factory settings (see 8.2 Resetting the device to factory settings) ● Executing a software update (see 11.1 Software update via web server) V1.00 © KEBA 2023... -
Page 15: Mounting And Installation Instructions
To mount the device in the control cabinet, proceed as follows: 1) Hook the device into the upper edge of the top hat rail and press down until the housing latches completely. The device has been mounted. V1.00 © KEBA 2023... -
Page 16: Connections And Wiring
In 1-phase operation, the split-core current transformers and voltage input are to be connected to the device for phase L1. At least phase (phase con- ductor) L1 and neutral conductor N must be connected, since they supply the device with power. V1.00 © KEBA 2023... -
Page 17: Connecting Split-Core Current Transformers
3) Open split-core current transformers for L1, place around phase conduc- tor L1 and close again until it audibly latches. Observe the direction of the arrow! 4) If present: Repeat steps for phase conductors L2 and L3. The split-core current transformers are connected. V1.00 © KEBA 2023... -
Page 18: Connecting The Voltage Supply
The device can be destroyed or damaged by overvoltage on the data cable (Ethernet) or destination device (e.g. charging station). If the data cable or destination device is installed outdoors, it must have suitable overvoltage protection. V1.00 © KEBA 2023... - Page 19 The measurement data can be read out using the Modbus protocol via the Ethernet interface. The device (Modbus TCP slave) can be reached under the port "502" by default. The Unit ID corresponds to the "Device ID" on the type plate. V1.00 © KEBA 2023...
-
Page 20: Operating Behavior
Behavior in the event of voltage drop As soon as a lower power supply is detected, the device saves the mea- sured energy values in non-volatile memory. V1.00 © KEBA 2023... -
Page 21: Configuration
The network configuration can be performed using the following Modbus registers: Static IP address (registers 259 - 262) Register Description 259 ( 0x0103 1st octet (e.g. 192) 260 ( 0x0104 2nd octet (e.g. 168) 261 ( 0x0105 3rd octet (e.g. 1) V1.00 © KEBA 2023... -
Page 22: Read-Only Flag (Register 268)
Read or write access to a register that is not supported 0x03 Ille- gal Data ● Write access to parameters outside the permitted range Value ● Write access to data block with activated read-only flag 0x04 Slave Device The device is in an error state Failure V1.00 © KEBA 2023... -
Page 23: Data Recording
● Active power ● Reactive power ● Apparent power ● Imported active energy ● Exported active energy ● Inductive reactive energy ● Capacitive reactive energy ● Imported apparent energy ● Exported apparent energy ● Power factor V1.00 © KEBA 2023... -
Page 24: Maintenance
The software update has now been performed. 11.2 Troubleshooting Error Possible causes Remedy ● Ensure that at least the phase Status LED does No supply voltage. conductor L1 and neutral con- not light up. ductor N are connected. V1.00 © KEBA 2023... - Page 25 (see Connection overview). ● Check whether the current transformers are configured correctly via Modbus. Critical system errors and warnings are saved in internal non-volatile mem- ory for service purposes and can be read out by KEBA. V1.00 © KEBA 2023...
-
Page 26: Disposal
● The materials are recyclable in accordance with their labeling. You can make an important contribution to protecting our envi- ronment by reusing, renewing and recycling materials and old appliances. V1.00 © KEBA 2023... -
Page 27: Technical Data
2000 m above sea level 13.4 Interfaces Ethernet interface Number: Ethernet: RJ45 (shielded) Data transfer rate: 10/100 Mbps Protocol: Modbus/TCP 13.5 Dimensions, weight Height / width / depth: 88 mm / 35 mm / 65 mm Weight: < 0.2 kg V1.00 © KEBA 2023... -
Page 28: Clamp Current Transformer
Up to 75% non-condensing Altitude: Max. 2000 m above sea level Dimensions, weight Height (1) / width (2) / depth (3): 40 mm / 23 mm / 26 mm Opening (4): 10 mm Weight: 65 g V1.00 © KEBA 2023... -
Page 29: Directives, Standards And Regulations
Limits and methods of measurement 14.1 EU Directives and Standards 2014/35/EU Low-voltage Directive 2014/30/EU Electromagnetic Compatibility Directive Directive on the restriction of the use of cer- 2011/65/EU tain hazardous substances (RoHS) Directive for waste electrical and electronic 2012/19/EU equipment (WEEE) V1.00 © KEBA 2023... -
Page 30: Declaration Of Conformity
Declaration of conformity Declaration of conformity V1.00 © KEBA 2023... - Page 31 Declaration of conformity V1.00 © KEBA 2023...
-
Page 32: Index
EU Directives and Standards .... 29 Network configuration ...... 21 Factory setting ......... 20 Read-only flag.......... 22 Restart ............. 20 Installation .......... 10 Scope of delivery ........ 10 Split-core current transformer .... 21 Network.......... 13 Service interface ......... 13 Status.......... 13 V1.00 © KEBA 2023... - Page 34 KEBA Energy Automation GmbH Reindlstraße 51 4040 Linz / Austria www.keba.com...
