Product Specifications - Master Meter Allegro Pit Installation Manual

_____________________________________________________________________________________

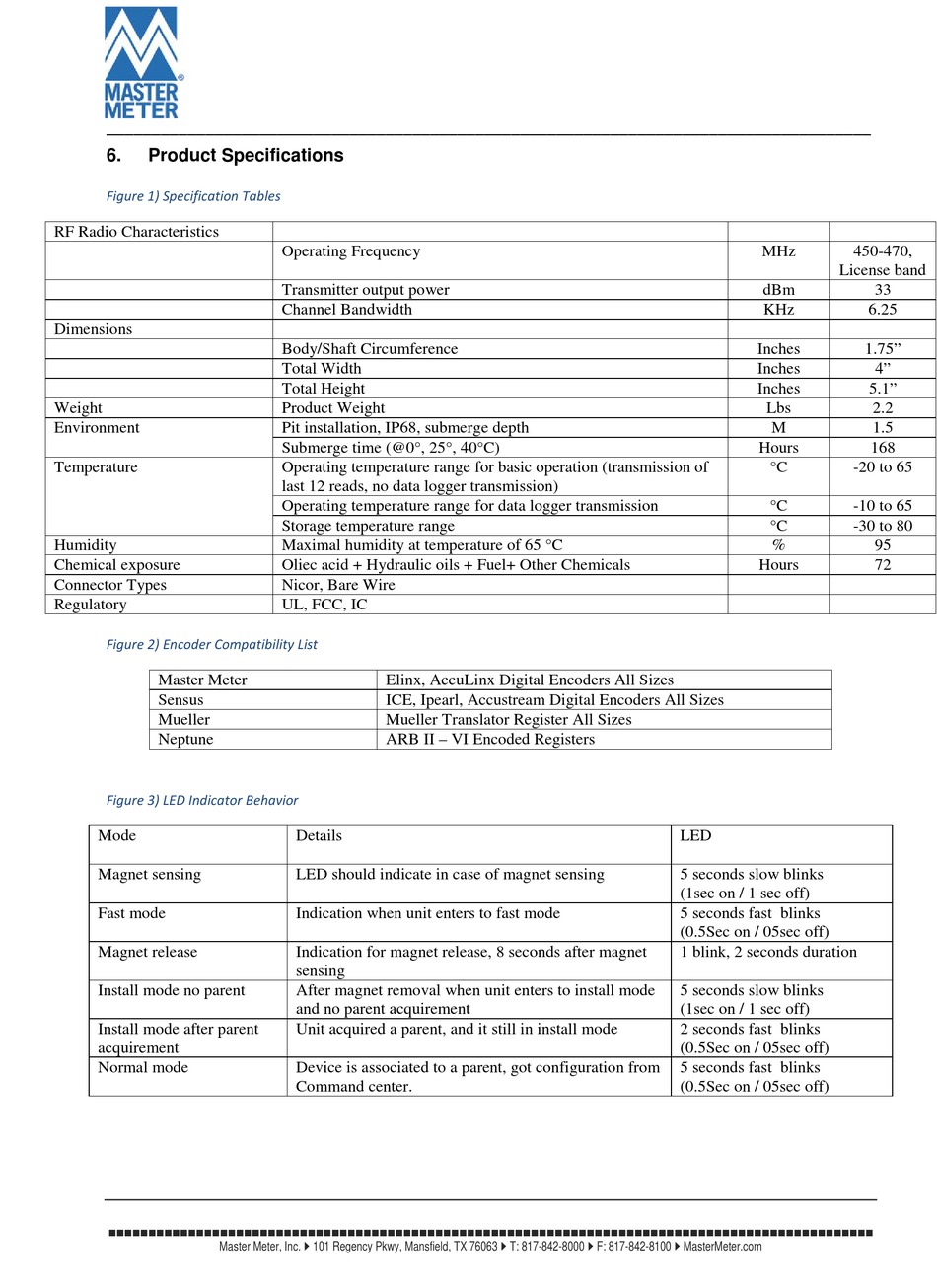

6.

Product Specifications

Figure 1) Specification Tables
RF Radio Characteristics
Dimensions
Weight
Environment
Temperature
Humidity
Chemical exposure
Connector Types
Regulatory
Figure 2) Encoder Compatibility List
Master Meter
Sensus
Mueller
Neptune
Figure 3) LED Indicator Behavior
Mode
Magnet sensing
Fast mode
Magnet release
Install mode no parent
Install mode after parent
acquirement
Normal mode

Master Meter, Inc.  101 Regency Pkwy, Mansfield, TX 76063  T: 817-842-8000  F: 817-842-8100  MasterMeter.com
Operating Frequency
Transmitter output power
Channel Bandwidth
Body/Shaft Circumference
Total Width
Total Height
Product Weight
Pit installation, IP68, submerge depth
Submerge time (@0°, 25°, 40°C)
Operating temperature range for basic operation (transmission of
last 12 reads, no data logger transmission)
Operating temperature range for data logger transmission
Storage temperature range
Maximal humidity at temperature of 65 °C
Oliec acid + Hydraulic oils + Fuel+ Other Chemicals
Nicor, Bare Wire
UL, FCC, IC
Elinx, AccuLinx Digital Encoders All Sizes
ICE, Ipearl, Accustream Digital Encoders All Sizes
Mueller Translator Register All Sizes
ARB II – VI Encoded Registers
Details
LED should indicate in case of magnet sensing
Indication when unit enters to fast mode
Indication for magnet release, 8 seconds after magnet
sensing
After magnet removal when unit enters to install mode
and no parent acquirement
Unit acquired a parent, and it still in install mode
Device is associated to a parent, got configuration from
Command center.
MHz 450-470,
License band
dBm
KHz
Inches 1.75"
Inches
Inches
Lbs
M
Hours
°C -20 to 65
°C -10 to 65
°C -30 to 80
%
Hours
LED
5 seconds slow blinks
(1sec on / 1 sec off)
5 seconds fast blinks
(0.5Sec on / 05sec off)
1 blink, 2 seconds duration
5 seconds slow blinks
(1sec on / 1 sec off)
2 seconds fast blinks
(0.5Sec on / 05sec off)
5 seconds fast blinks
(0.5Sec on / 05sec off)
33
6.25
4"
5.1"
2.2
1.5
168
95
72
