Summary of Contents for Master Meter eLinx
- Page 1 Type: eLinx Interpreter Issue: Programming Master Meter, Inc. ❘ 101 Regency Parkway, Mansfield, TX 76063 ❘ T: 817-842-8000 ❘ MasterMeter.com ...

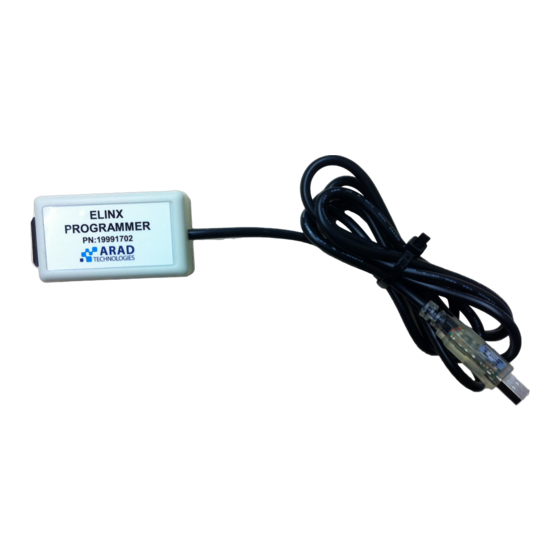

- Page 2 Installation: After installing eLinx Technician software (See Figure 1), plug in the eLinx Programmer (See Figure 2) to your computer. After a few seconds the programmer will begin installing the correct driver. You are now ready to being using eLinx Technician software.
- Page 3 Communication Port (COM Port) command (See Figure 3). Please ensure the correct COM Port is selected for the eLinx Programmer. If the correct COM Port has not been selected, you will need to manually locate this communication port within the Device Manager menu of your computer.
- Page 4 Programmability Fields: The programmable design of eLinx Interpreter allows this register to work on most any meter and connect to most any AMR/AMI system with common bayonet-style register housing. Please use Figure 5 below as a reference for the Programmability Fields section of this document.
- Page 5 Meter Gear Ratio field (Gallons is the most common Unit of Measure used). After all parameters have been selected, attach the eLinx Programmer to the eLinx Interpreter. There are multiple ways to attach to eLinx. Please see connectivity options listed below: 1.
- Page 6 Programming Manual eLinx Interpreter **To locate the Meter Gear-Ratio for your eLinx Interpreter follow the steps below within 3G Tech NET: 1. Select the Interpreter box under the Select Unit Types menu. 2. Double-Click on Interpreter II Properties located in Set menu, directly to the right of the Select Unit Types menu.
