- Page 1 M A N U A L / G U I D E Category: Registers Type: Register Shroud / New Design Issue: How to Install & Remove Prior Design Master Meter, Inc. ❘ 101 Regency Parkway, Mansfield, TX 76073 ❘ T: 817-842-8000 ❘ F: 817-842-8100...
- Page 2 Step 1: Pull Cover Assembly Straight Up Old version of register & housing Step 5: Remove register shroud by opening gap and pulling off of body . Step 2: Remove tamper seals with screwdriver or punch. Step 6: Step 3:...

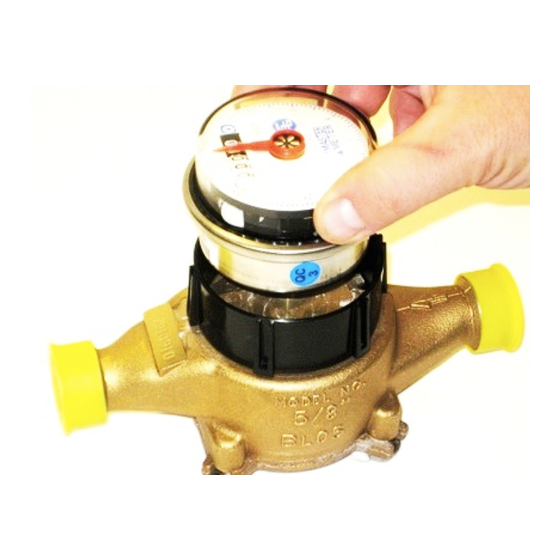

- Page 3 Step 2: Twist clockwise until mechanical stop. * Final position shown. Step 5: Place housing assembly onto the register approximately 15 degrees shy of final position. Step 3: Note locating indentations on register base each 90 degrees. Page 3 of 4...
- Page 4 Step 6: Step 8: Twist housing assembly 15 degrees clockwise. Use any available hard surface (in this case, Use lid hinge (but not lid!) when twisting. The screwdriver handle) to push stopper snap pin holes for the stopper snap pin should be a little completely flush.
