Summary of Contents for WEIGL ProCommander Series

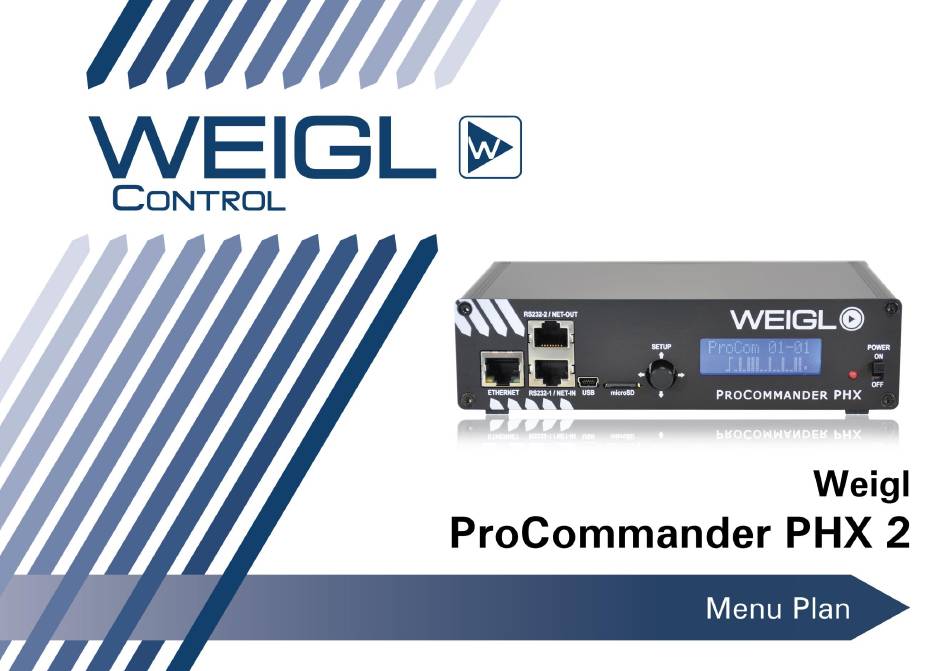

- Page 1 Version 1.09...
- Page 2 MENU ProCommander Series – LEVEL 1 & 2 LEVEL 1 LEVEL 2 ProCom Volume All channels will store the same value 0 - 31 Start Show? Menu Main Setup Configure Audio RealTimeClk Info Up = Back to the start Left & Right = Volume/ Navigation...
- Page 3 MENU ProCommander PHX – MainSetup – LEVEL 2 Menu LEVEL 3 LEVEL 4 LEVEL 5 MainSetup Set IP-Adrs IP-Adrs 000.000.000.000 Set Port Port 1 – 4 Value 00000 SetFactory Set Factory? Left = Back/ one level up Enter = Press the button to select the displayed function or store value...
- Page 4 MENU ProCommander PHX – Configure – LEVEL 2 Menu LEVEL 3 LEVEL 4 LEVEL 5 Configure LTC-TimeOut Set TimeOut 0 - 250 EaseIn Time Set Ease-In 0 - 250 StrtPlaylst Set StPlyL RS485-2 Drv RS485-2 Drv Dynamixel NanotcSCI47 None Left = Back/ one level up Enter = Press the button to select the displayed function or store value...
- Page 5 MENU ProCommander PHX – Configure – LEVEL 2 Menu LEVEL 3 LEVEL 4 LEVEL 5 Configure IgnStartClr SetIgnStClr Left = Back/ one level up Enter = Press the button to select the displayed function or store value...
- Page 6 MENU ProCommander PHX – Audio – LEVEL 2 Menu LEVEL 3 LEVEL 4 LEVEL 5 Audio Volume Set Volume: 0 - 31 Bass Set Bass: 0 - 15 Treble Set Treble: -8 - +7 Amplifier Gain Set Gain: 1 - 4 Left = Back/ one level up Enter = Press the button to select the displayed function or store value...
- Page 7 MENU ProCommander PHX – RealTimeClk – LEVEL 2 Menu LEVEL 3 LEVEL 4 LEVEL 5 RealTimeClk Hour Set Hour 0 - 23 Minute Set Minute 0 - 59 Day-Of-Week Set DayOfWk Monday/1-Sunday/7 Set Day 1 - 31 Month Set Month 1 - 12 Year Set Year...
- Page 8 MENU ProCommander PHX – Info – LEVEL 2 Menu LEVEL 3 LEVEL 4 LEVEL 5 Info Firmware Ver. Firmware Version V0.00 SerialNumber Serial Number 00.00.00.00 MAC-Address MAC-Address 00-00-00-00-00-00 IP-Address IP-Address 000.000.000.000 Port Port 1 Left = Back/ one level up Enter = Press the button to select the displayed function or store value...
