Stellar Hearth Products GALAXY Series Installation And Operating Manual
  1. Manuals
  2. Brands
  3. Stellar Hearth Products Manuals
  4. Indoor Fireplace
  5. GALAXY Series
  6. Installation and operating manual

Stellar Hearth Products GALAXY Series Installation And Operating Manual

Co-linear direct vent gas fireplaces
Hide thumbs Also See for GALAXY Series:
Table of Contents

Advertisement

Quick Links

www.stellarhearth.com
Custom Fireplace Program

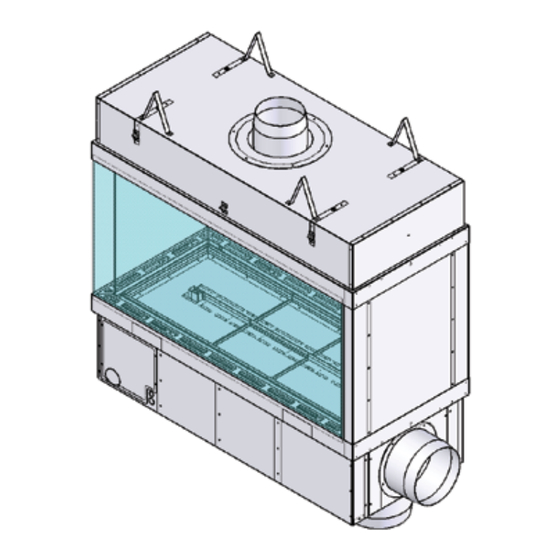

Co-linear Direct Vent Gas Fireplaces
GALAXY SERIES - Pier
Installation and Operating Manual
NG & Propane
WARNING: If the information in these instructions are not followed exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
— Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
—
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
•
If you cannot reach your gas supplier, call the fire department.
— Installation and service must be performed by a qualified installer, service agency or the gas supplier.
Stellar Hearth Products
TM
, a division of Hearth & Home Technologies
Installer:
Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
®
- 16873 Fish Point Rd SE, Prior Lake, MN 55372 - (952) 224 - 4072
Page 1
