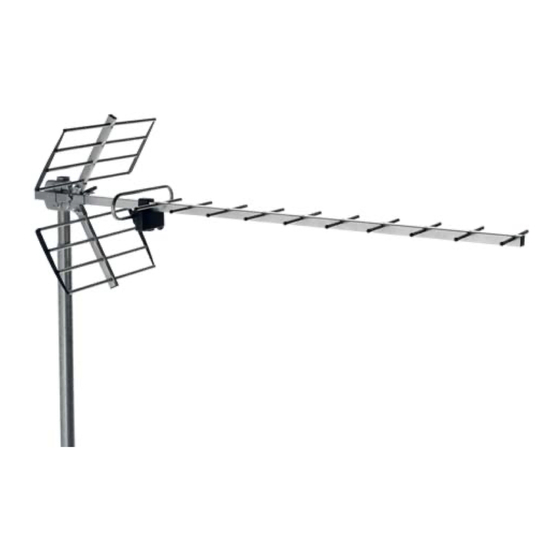

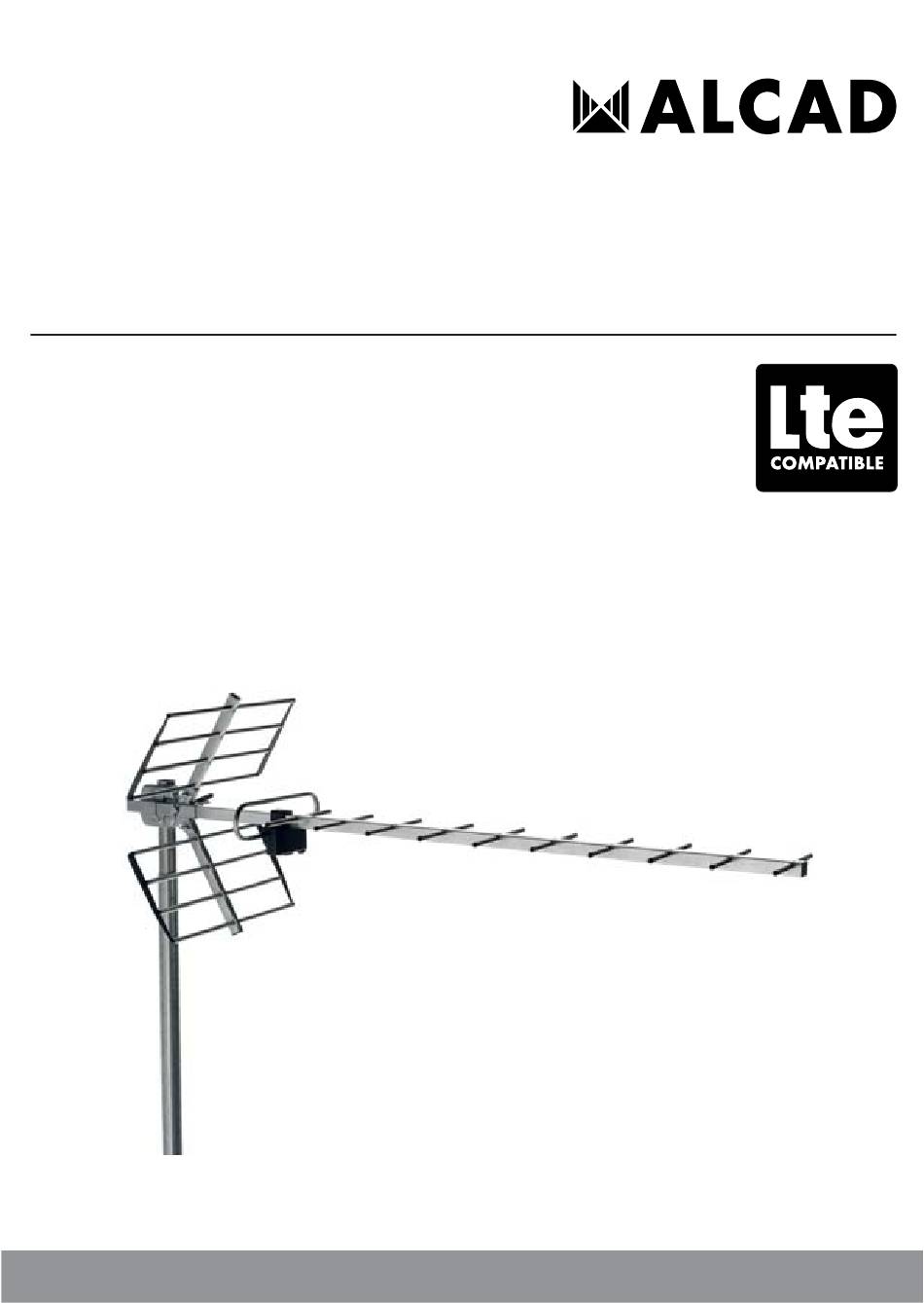

- Page 1 ANTENAS TV BANDA UHF TV ANTENNAS UHF BAND ANTENNES TV BANDE UHF...
- Page 2 CÓDIGO-CODE-CODE 9000104 MODELO-MODEL-MODELE BU-118 Rango de frecuencias Frequency range 470 -790 Gamme de fréquences Canales 21-60 Channels Canaux Ganancia Gain 12,5 Gain Relación delante/detrás Front/back ratio Rapport avant/arriere Impedancia Impedance Impédance Pérdidas de retorno Return loss ≥10 Pertes de retour Polarización HOR /VER Polarity...
- Page 3 CÓMO MONTAR LA ANTENA BU-118 HOW TO MOUNT THE ANTENNA BU-118 COMMENT MONTER L'ANTENNE BU-118 Cómo montar la caja del simetrizador How to mount the matching transformer Comment monter le boîtier du symétriseur...
- Page 4 CÓMO CONECTAR EL CABLE COAXIAL EN LA CAJA DEL SIMETRIZADOR HOW TO CONNECT THE COAXIAL CABLE TO THE MATCHING TRANSFORMER COMMENT RELIER LE CÂBLE COAXIAL DANS LE BOÎTIER DU SYMÉTRISEUR 12 mm 3±1 8±1mm Ø 6,5 - 6,8 mm CM-004 9120039 Ø...
- Page 5 MONTAJE DE LA POLARIDAD HORIZONTAL O VERTICAL MOUNTING IN EITHER HORIZONTAL OR VERTICAL POLARITY MONTAGE EN HORIZONTAL OU VERTICAL HORIZONTAL VERTICAL AJUSTE DEL ÁNGULO DE ELEVACIÓN ELEVATION ANGLE ADJUSTMENT RÉGLAGE DE L'ANGLE D'ÉLÉVATION 30° CURVA DE GANANCIA Y DIAGRAMAS DE RADIACIÓN GAIN AND RADIATION GRAPHICS COURBE DU GAIN ET DIAGRAMME DE RAYONNEMENT BU-118...
- Page 6 DECLARATION OF CONFORMITY according to EN ISO/IEC 17050-1:2004 Company Name: ALCAD, S.L. Company Address: Pol. Ind. Arreche-Ugalde, 1 Apdo. 455, 20305 IRÚN (Guipúzcoa), SPAIN declares that the product Model Number(s): BU-118 TV ANTENNAS UHF BAND Product Description: Product Option(s): INCLUDING ALL OPTIONS...
