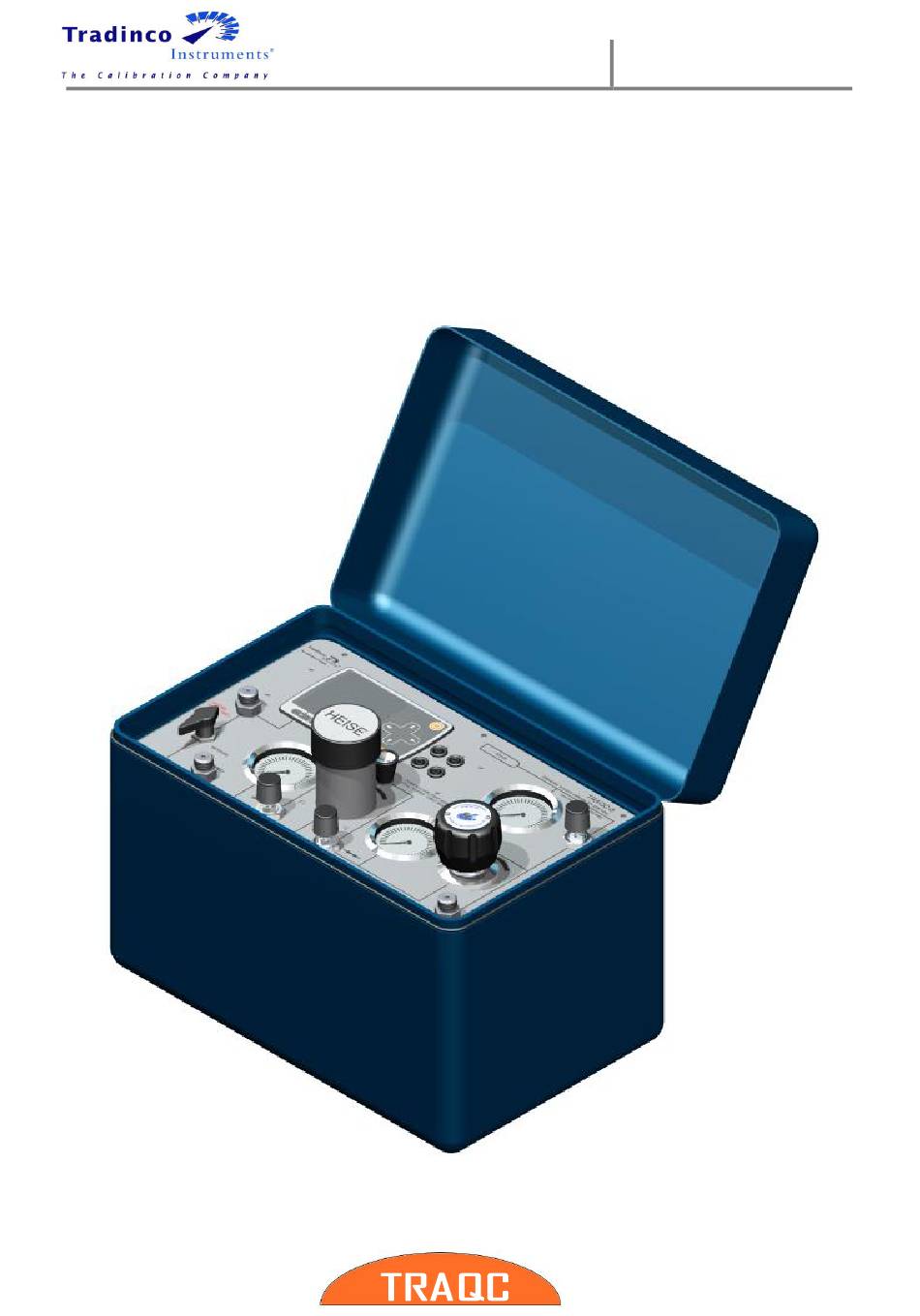

- Page 1 User Manual TRAQC-8 DPC TRAQC-8 DPC Portable Differential Pressure Calibrator User Manual...
-
Page 2: Table Of Contents
Content General ....................5 Warranty ........................5 Important notice ......................5 Software License Agreement ..................5 Tradinco Instrumenten-Apparaten B.V. Service ............6 After Warranty ......................6 Calibration Services ...................... 6 Accreditations ......................6 Packaging for Shipment ....................6 Safety Symbols, Notices and Warnings..........7 Safety symbols ...................... - Page 3 Set recal Date ......................34 4.9.4 Erase data memory ....................35 4.9.5 Show Product Data ....................35 4.10 Calibration of TRAQC-8 DPC ..................36 4.10.1 Adjust instrument inputs..................36 4.10.2 Adjust instruments outputs (optional) ..............39 4.10.3 Show calibration factors ..................40 Data transfer ..................
- Page 4 Options & Accessories ....................45 8.5.1 Standard Supply includes..................45 8.5.2 Optional Supply ....................45 Annex I Pneumatic schematic ................46 Annex II Operation instruction Heise volume controller ......... 47 Annex III Specifications pressure sensor ............48 Sheet 4 TRAQC-8 DPC 11/2016 EN Rev.3...
-
Page 5: General
The entire risk of the quality and performance of the software program is with the end user. Tradinco Instrumenten- Apparaten B.V. and its suppliers shall not be held to any liability for any damages suffered or incurred by the Sheet 5 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 6: Tradinco Instrumenten-Apparaten B.v. Service
E. service@tradinco.com www.tradinco.com After Warranty Tradinco Instrumenten-Apparaten B.V.’s concern with the performance of this instrument is not limited to the warranty period. We provide complete repair, calibration and certification services after the warranty for a nominal fee as explained in Maintenance. -
Page 7: Safety Symbols, Notices And Warnings
The system should be operated only by trained personnel who are familiar with this manual and the operation of the instrument. The Traqc-8 DPC is powered via the power cable with a voltage that can cause physical injury. Ensure that the electrical installation to which the Traqc-8 DPC has to be connected to, conforms with local and national safety requirements. -
Page 8: Warnings And Caution Notices
Do not disconnect any pressure connection of the Traqc-8 DPC when a leak test of any kind is processing. Physical injury may exceed when process connections will be disconnected, caused by the expanding gas. -
Page 9: Traqc-8 Dpc Description
Two high pressure gas bottles With the TRAQC-8 DPC it is possible to measure differential pressures generated by the built-in gas bottles as well with test pressures which are generated by an external pressure source. The test and filling hoses are stored in a case in the lid of the carrying case. -
Page 10: Symbols Used
This manual is an user manual on how to operate the instrument; it is not a calibration instruction manual. As Tradinco Instruments continuously strives to improve its products, specifications of instruments may be altered without further notice. Sheet 10... -
Page 11: Calibrator Interface
Refill Supply valve ‘+’-test connection connection connection Pressure control valve Mode selector Relief valve (vent) Manometer 1 valve Manometer 2 On / Off key Electrical connections Navigation keys Function keys (F1, F2, F3) Sheet 11 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 12: Navigation
‘ENTER’ (under F1) results in going one level further. The menus consist of multiple options to choose from. The option in the black bar is the one selected. By using the navigation keys another option in the menu is selected. Sheet 12 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 13: Electrical Connections
Control the voltage power supply indication before plug in. Operating Instructions The TRAQC-8 DPC is a differential pressure calibrator with a maximum of 75 bar line pressure and is designed on customer request. The calibrator includes a high pressure reducer which has to be fed by an external pressure source of maximal 200 bar (refill connection) or by the internal gas bottles. -
Page 14: Precautions Before Bring On Pressure To Test Connections
Let stabilize the test pressure before taking measurement point Sheet 14 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 15: Ending A Differential Pressure Test
Set the Balance valve of the Heise volume controller to Vent mode (pull) Release the test pressure of the calibrator by slowly opening the Relief valve Turn the Pressure control valve fully counter clockwise Sheet 15 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 16: Instructions For Refilling The Gas Bottles
Place the case a horizontal position The Traqc-8 DPC is equipped with rechargeable batteries, which must need to be stored fully charged, charging and discharging of batteries once every 3 months is advised. When connected to the mains power a trickle charge will be maintained. -
Page 17: Power Supply
The unit is equipped with an internal not removable Li-Ion battery. The charging of the batteries is fully automated. The TRAQC-8 DPC is charged when its connected to the mains power supply. Charging will start as soon as the instrument is connected to the mains supply. -
Page 18: Power On/Off
TRAQC-8 DPC Power On/Off The TRAQC-8 DPC is switched on and off by pressing the on/off key. The TRAQC-8 DPC will go through a short startup self-check routine. During that routine the display shows the current firmware. After completing the startup procedures the device switches into the measuring mode and displays the measured value(s), and the measuring unit(s) from last time. -
Page 19: Zeroing
The pressure unit can also be selected via the menu, press the ‘F1’key and select the ‘pressure setup’ and then ‘pressure unit’ for these modes. 3.11 Pressure Range Depending upon the configuration of the instrument the TRAQC-8 DPC can be equipped with one, two or three pressure sensors. Sheet 19... -
Page 20: Electric In- Or Output Active
3.11.3 Selecting Pressure sensor Auto ranging The TRAQC-8 DPC can also be equipped with two pressure ranges and one pressure connection for measuring test pressure. The TRAQC-8 DPC is configured to automatically switch the measuring range. -
Page 21: Instrument Status
The menu to select the pressure unit can in most operating modes be accessed by pressing the ‘UNIT’ function key, There are however operating modes where this is not possible , for these modes the pressure unit selection is also available in the pressure setup menu, see section 3.10. Sheet 21 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 22: Averaging On/Off
To change the number of digits (from 3 to 6) select “resolution setup” in the “pressure setup” menu and use the ‘ARROW’ keys to change the number of digits, confirm by pressing the ‘ENTER’ key (F1) Sheet 22 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 23: Conversion Table
The density of seawater for the region where the pressure indicator is used can be set here. When a test pressure is set, the TRAQC-8 DPC can calculate the pressure into meters under water. The density of the seawater will differ in different parts of the world and the value has to be adjusted for correcting for the pressure under water. -
Page 24: Absolute Mode
This menu has more than 8 entries, when you step through the menu with the ‘UP’ and ‘DOWN’ arrow keys the menu scrolls to show the additional items. The options are explained in the next paragraphs. Sheet 24 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 25: Ma Input
When a resistor is connected the resistance of that resistor is displayed. The text ‘OPEN’ will be displayed if no resistor is connected or when a resistor is incorrectly connected. Sheet 25 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 26: Rtd Input (Optional)
‘UNLOCK’ key (F3) as shown in the display. The TRAQC-8 DPC uses the status of the switch when the switch function is enabled as the reference status, after this the TRAQC-8 DPC responds to changes in the status. -
Page 27: Hart Resistor
4.2.9 Hart Resistor A dedicated resistor inside the TRAQC-8 DPC can be activated in order to enable Hart communication when required. In the electric input setup, go to “Hart resistor”, press ‘ENTER’ key (F1). The display shows “Hart Resistor ON / OFF”... -
Page 28: Electrical Output A Setup (Optional)
In “mA source” the TRAQC-8 DPC will supply electrical power and control the mA output. (effectively a controlled current source). In mA simulator an external electrical power supply is required, and the TRAQC-8 DPC will only control the mA output. -
Page 29: Xmtr Mode Settings (Parameter Mode Settings)
Values in excess of the standard range of 0 - 24 mA will be refused: when ENTERED the instrument will refuse and display: “Invalid entry”. The display will wait for a valid entry before proceeding to next entry. Sheet 29 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 30: Voltage Output
Press ‘ENTER’ key (F1) to confirm. Select “off”: the function has been disabled. Electrical input B setup (optional) This option is under development Electrical output B setup (optional) This option is under development Sheet 30 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 31: Instrument Configuration
User Manual TRAQC-8 DPC Instrument Configuration The TRAQC-8 DPC can be configured by selecting the instrument configuration label in the main menu. Backlight setup; use the ‘ARROW’ keys to change the contrast. Select language; the language can be set to English, Dutch, French and German by using the ‘ARROW’... - Page 32 Factory defaults; sets the device back in the factory defaults.* Restoring the TRAQC-8 DPC will change the settings made by user back into the factory defaults. These defaults are: measuring range is 1 only the basic unit of the instrument is selectable ...
-
Page 33: Using The Memory Mode
List by tag number When instruments’ data is stored in the TRAQC-8 DPC memory, select the instrument to be calibrated in the ‘list by tagnr.’ option. The menu shows the different instruments in a list. Use the ‘ARROW’ keys to select the right instrument and press ‘ENTER’... -
Page 34: Advanced Options
TRAQC-8 DPC Advanced Options To change the advanced options of the TRAQC-8 DPC select the menu “advanced options” in the “main menu” and press ‘ENTER’ key (F1) to continue. Use the ‘ARROW’ keys to set the password’s numbers and press ‘ENTER’... -
Page 35: Erase Data Memory
To view the product details select “show instrument data” menu in the “advanced options” menu and press ‘ENTER’ key (F1). The information shown is the following: The serial number Firmware version Recalibration date Pump details Accuracy %FS Sheet 35 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 36: Calibration Of Traqc-8 Dpc
TRAQC-8 DPC 4.10 Calibration of TRAQC-8 DPC The TRAQC-8 DPC is calibrated by Tradinco Instruments B.V. to achieve the stated accuracy. The calibration report is supplied with the instrument. The user cannot change these factory adjustments. However, it is possible to make adjustments within the predetermined accuracy limits and calibrate the TRAQC-8 DPC. - Page 37 After entering all milliamp. input data, the TRAQC-8 DPC will confirm at the last ‘ENTER’ key (F1) with a long beep, and automatically revert to the “adjust instrument inputs” menu.
- Page 38 The only thing critical for the calibration is that exactly the value of the applied pressure is entered, when the TRAQC-8 DPC requests “Input Actual value” When the two pressures applied are to close in range of one another, the TRAQC-8 DPC will not accept the data and requests if another attempt should be done.
-
Page 39: Adjust Instruments Outputs (Optional)
All adjustments as described in the following chapters are “two point” adjustments: one at minimum value, and one at maximum value. Based on these two points, TRAQC-8 DPC will extrapolate all intermediate data. 4.10.2.1 Current source In order to calibrate the mA signal in source mode, connect the ‘PLUS’ and ‘MINUS’... -
Page 40: Show Calibration Factors
For this communication the TRAQC-8 DPC makes use of a RS232 interface. Connections The TRAQC-8 DPC can be equipped with a 9-pin RS232 (female) connector which is mounted in the pressure indicator. The pin assignment of the TRAQC-9 (9 pin) is as follows: Txd transmit data (from calibrator to host);... -
Page 41: Rs232 Settings
User Manual TRAQC-8 DPC RS232 Settings The configuration of the RS232 is as follows: Data bits Parity none Stop bits The baud rate is fixed at 9600 baud. Sheet 41 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 42: Maintenance Instructions
Adjust the 11mm gland compressor nut. Adjustment must be made in order that a light friction is detected when turning the control knob When ready tighten the lock nut again A spare part kit with new needle and seats is available at Tradinco Instruments Sheet 42 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 43: Pressure Gauges
Damages The interval for these inspections is 5 year. It is strongly recommended to return this instrument to Tradinco Instruments B.V. for such inspections. The user of the instrument is strongly advised to handle the bottle carefully and needs to pay attention if corrosive gasses and or fluids are used in the proximity and/or in pressure measuring lines. -
Page 44: Product Specifications
Up to 200 bar pressure from the internal gas bottles. mA DC, loop calibration functionality, 0.05% R., 0 –24 mA V DC, loop calibration functionality, 0 – 21.8 V DC Sheet 44 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 45: Data Storage
USB to RS232 convertor ® AutoCal calibration management software mA with 24 VDC for externally powered transmitters Loop calibration function (0-24 mA sourcing) UltraClean according to Certificate TIA-UC-1 Sheet 45 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 46: Annex I Pneumatic Schematic
User Manual TRAQC-8 DPC Annex I Pneumatic schematic Sheet 46 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 47: Annex Ii Operation Instruction Heise Volume Controller
User Manual TRAQC-8 DPC Annex II Operation instruction Heise volume controller Sheet 47 TRAQC-8 DPC 11/2016 EN Rev.3... -
Page 48: Annex Iii Specifications Pressure Sensor
User Manual TRAQC-8 DPC Annex III Specifications pressure sensor Sheet 48 TRAQC-8 DPC 11/2016 EN Rev.3... - Page 49 User Manual TRAQC-8 DPC Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com info@tradinco.com Sheet 49 TRAQC-8 DPC 11/2016 EN Rev.3...
