Summary of Contents for Tradinco TRAQC-9

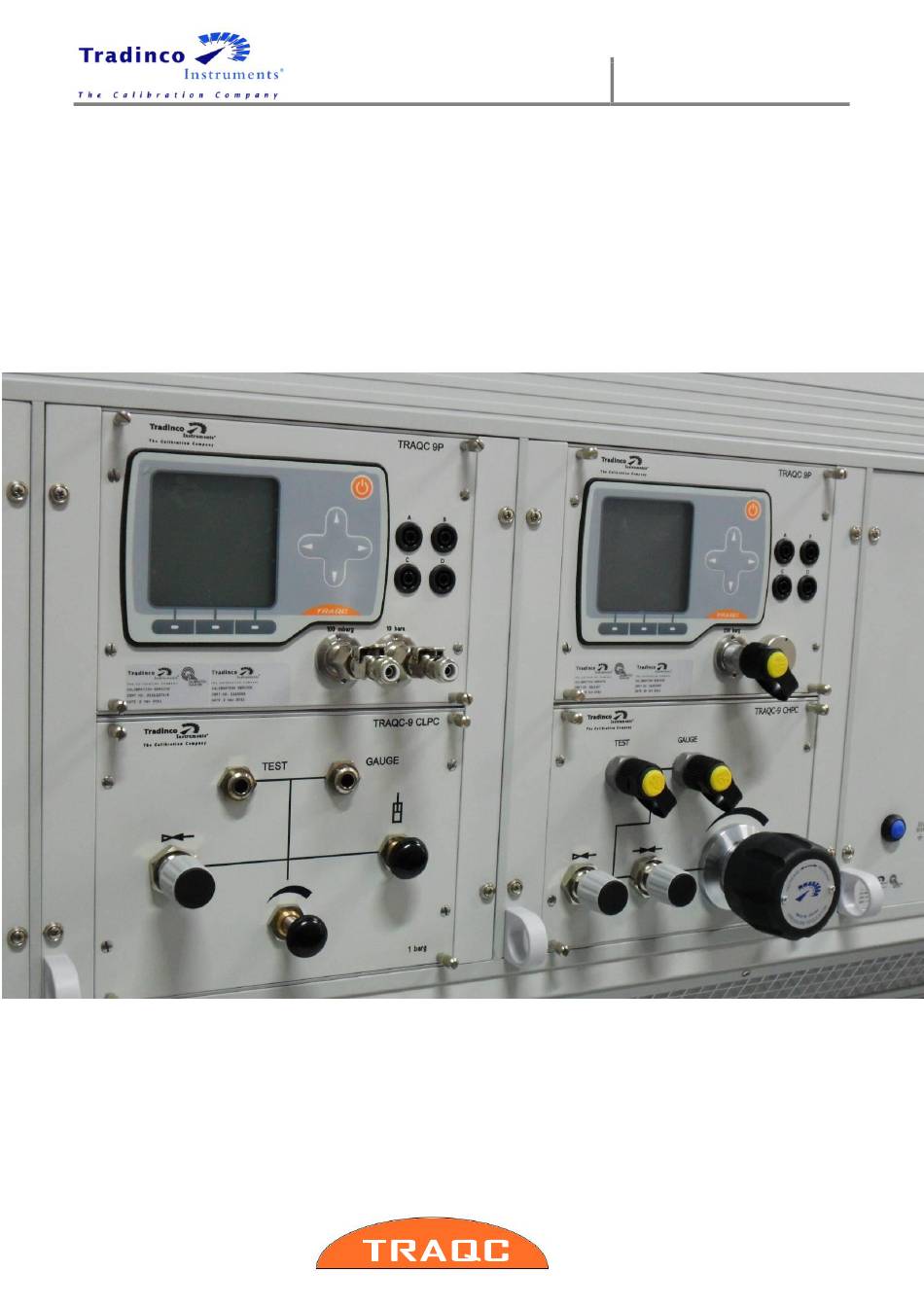

  • Page 1 User Manual TRAQC-9 TRAQC-9 Calibrators User Manual...
  • Page 2: Table Of Contents

    Electrical Connections ..............10 TRAQC-9 Types TRAQC-9 Configurations ..............11 TRAQC-9 P Pressure................ 12 TRAQC-9 MAVS Milliamp ere and Volt Signals ........13 TRAQC-9 CAC Absolute pressure Controller ........14 2.4.1 TRAQC-9 CAC operating instructions: ..........14 TRAQC-9 CPC Pneumatic Controller ..........15 2.5.1...
  • Page 3 General ..................41 Measurement ................. 41 Generation and control ..............41 8.3.1 Traqc-9 P .................. 41 8.3.2 Traqc-9 CLPC Low Pressure Controller ........... 41 8.3.3 Traqc-9 CHPC High Pressure Controller .......... 41 8.3.4 Traqc-9 CPC Pressure Controller ........... 41 8.3.5 Traqc-9 CVC Vacuum Controller ...........
  • Page 4 User Manual TRAQC-9 page : 4 TRAQC-9 04/2017 EN Rev.4...
  • Page 5: General

    Implementation of modifications to the product that are not supplied or implemented by TRADINCO INSTRUMENTS. TRADINCO INSTRUMENTS and its vendors will not be liable for any indirect, special, incidental or consequential damages irrespective of whether TRADINCO INSTRUMENTS or the vendor has advance notice of the possibility of such damages.
  • Page 6: Traqc-9 Description

    : 2013 The unit is CE marked accordingly 1.2.2 CE Electrical Safety Directive 2014/35/EU The electrical part of the TRAQC-9 meets the regulations according to the standard listed below:  EN 61010-1 : 2010 The unit is CE marked accordingly page : 6 TRAQC-9 04/2017 EN Rev.4...
  • Page 7: Symbols Used

    This manual is an user manual on how to operate the instrument; it is not a calibration instruction manual. As Tradinco Instruments continuously strives to improve its products, specifications of instruments may be altered without further notice page : 7...
  • Page 8: Indicator Interface

    User Manual TRAQC-9 1.5 Indicator Interface page : 8 TRAQC-9 04/2017 EN Rev.4...
  • Page 9: Navigation

    The menu consists of multiple options to choose from. The option in the black bar is the one selected. By pressing the navigation keys up or down, another option in the menu can be selected. page : 9 TRAQC-9 04/2017 EN Rev.4...
  • Page 10: Electrical Connections

    The “Electric Connections Layout” in the display references the physical layout of these 4 banana socket. (Example see figure). The letters A,B,C and D are for identification purposes and will be of reference, in this manual only. page : 10 TRAQC-9 04/2017 EN Rev.4...
  • Page 11: Traqc-9 Types

    TRRAQ-9 CLPC Pump with volume control 0 - 1000 mbarg TRAQC-9 CHPC Reducer with needle valve. 0 - 350 barg The various versions and their operating instructions are described on the following pages. page : 11 TRAQC-9 04/2017 EN Rev.4...
  • Page 12: Traqc-9 P Pressure

    User Manual TRAQC-9 2.2 TRAQC-9 P Pressure The TRAQC-9 P is the pressure indicator. page : 12 TRAQC-9 04/2017 EN Rev.4...
  • Page 13: Traqc-9 Mavs Milliamp Ere And Volt Signals

    User Manual TRAQC-9 2.3 TRAQC-9 MAVS Milliamp ere and Volt Signals The TRAQC-9 MAVS is the electrical calibrator for the TRAQC-9 series. page : 13 TRAQC-9 04/2017 EN Rev.4...
  • Page 14: Traqc-9 Cac Absolute Pressure Controller

    (3) to the maximum admissible pressure for the "unit under test". Then close the “vacuum shut off valve” again. While the system is under vacuum pressure, check with the TRAQC-9 P if there is any leakage; this becomes apparent by an extreme change of pressure.
  • Page 15: Traqc-9 Cpc Pneumatic Controller

    TRAQC-9 2.5 TRAQC-9 CPC Pneumatic Controller The TRAQC-9 CPC is a pressure controller, ranging from 0 to 10 bar depending on the range of the selected reducer and is suitable for a so-called "dead end" system. The controller is equipped with a fine regulating reducer. The reducer has to be fed from an external pneumatic pressure supply with a maximum pressure of 10 bar.
  • Page 16: Traqc-9 Clpc Low Pressure Controller

    TRAQC-9 2.6 TRAQC-9 CLPC Low Pressure Controller The TRAQC-9 CLPC is a low pressure controller, ranging from 0 to 1000 mbar and is suitable for a so-called "dead end" system. Integrated in the controller are a small manually operated pump and a volume regulator for generating and regulating the test pressure.
  • Page 17: Traqc-9 Chpc High Pressure Controller

    TRAQC-9 2.7 TRAQC-9 CHPC High Pressure Controller The TRAQC-9 CHPC is a high pressure controller, ranging from 0 to 350 bar, depending on the range of the selected reducer and is suitable for a so-called "dead end" system. The calibrator is equipped with a high pressure reducer. The reducer has to be fed from an external high pressure supply with a maximum pressure of 350 bar.
  • Page 18: Traqc-9 Cvc

    TRAQC-9 2.8 TRAQC-9 CVC The TRAQC-9 CVC vacuum pressure controller, ranging -1 to 0 bar gauge and is suitable for a so-called "dead end" system. The calibrator is equipped with two fine regulating needle valves and a Polyflo test couplings.
  • Page 19: Operating Instructions

    3. Operating Instructions 3.1 Power On/Off The TRAQC-9 is switched on and off by pressing the on/off key. The TRAQC-9 will go through a short startup self-check routine. During that routine the display shows the current firmware. After completing the startup procedures the device switches into the measuring mode and displays the measured value(s), and the measuring unit(s) from last time.
  • Page 20: Zeroing

    When zeroing the ‘Pressure Input’, ensure that the pressure ports are open to atmospheric pressure. The TRAQC-9 P comes standard with a quick connect coupling with integraded shut off valve. This can be opened by:  Connect/insert the other half of the coupling to the pressure coupling (-port) of the TRAQC-9 P ...
  • Page 21: Pressure Range

    ‘ENTER’ key (F1) to confirm, press the ‘BACK’ key (F3) to cancel. 3.5.1 Selecting Pressure sensor Auto ranging The TRAQC-9 P can also be equipped with two pressure ranges and one pressure connection for measuring test pressure. The TRAQC-9 P is configured to automatically switch the measuring range.
  • Page 22: User Configuration

    To change the number of digits (from 3 to 6) select “resolution setup” in the “pressure setup” menu and use the ‘ARROW’ keys to change the number of digits, confirm by pressing the ‘ENTER’ key (F1) page : 22 TRAQC-9 04/2017 EN Rev.4...
  • Page 23: Conversion Table

    The density of seawater for the region where the pressure indicator is used can be set here. When a test pressure is set, the TRAQC-9 P can calculate the pressure into meters under water. The density of the seawater will differ in different parts of the world and the value has to be adjusted for correcting for the pressure under water.
  • Page 24: Electrical Input Setup

    In the next screen a value can be entered from 0.1 to 99.9% FS using the ‘ARROW’ keys. The entered time and the limit will be saved in the internal memory and will be used immediately to switch the Xmtr supply on or off. page : 24 TRAQC-9 04/2017 EN Rev.4...
  • Page 25: Switch Test

    ‘UNLOCK’ key (F3) as shown in the display. The TRAQC-9 uses the status of the switch when the switch function is enabled as the reference status, after this the TRAQC-9 responds to changes in the status.
  • Page 26: Ma/V Scaling

    With this function the user can set the conversion factors for the mA or V scaling. The display of the scaled mA (or V) can be in a pressure unit or a percentage (%) but also in percentage error of the unit under test. page : 26 TRAQC-9 04/2017 EN Rev.4...
  • Page 27: Electrical Output Setup (Optional)

    V xmtr mode On/Off In “mA source” the TRAQC-9 will supply electrical power and control the mA output. (effectively a controlled current source). In mA simulator an external electrical power supply is required, and the TRAQC-9 will only control the mA output.
  • Page 28: Xmtr Mode Settings (Parameter Mode Settings)

    Values in excess of the standard range of 0 - 24 mA will be refused: when ENTERED the instrument will refuse and display: “Invalid entry”. The display will wait for a valid entry before proceeding to next entry. page : 28 TRAQC-9 04/2017 EN Rev.4...
  • Page 29: Voltage Output

    ‘ENTER’ key (F1). Automatically the “Step time entry” panel is displayed: Enter the required step time in seconds, using the ‘ARROW’ keys. Press ‘ENTER’ key (F1) to confirm. Select “off”: the function has been disabled. page : 29 TRAQC-9 04/2017 EN Rev.4...
  • Page 30: Instrument Configuration

    User Manual TRAQC-9 4.4 Instrument Configuration The TRAQC-9 can be configured by selecting the instrument configuration label in the main menu. Backlight setup; use the ‘ARROW’ keys to change the contrast. Select language; the language can be set to English, Dutch, French and German by using the ‘ARROW’...
  • Page 31 Factory defaults; sets the device back in the factory defaults.*  Restoring the TRAQC-9 will change the settings made by user back into the factory defaults. These defaults are:  measuring range is 1  only the basic unit of the instrument is selectable ...
  • Page 32: Memory Functions

    Not yet implemented, for future development. 4.7 Advanced Options To change the advanced options of the TRAQC-9 select the menu “advanced options” in the “main menu” and press ‘ENTER’ key (F1) to continue. Use the ‘ARROW’ keys to set the password’s numbers and press ‘ENTER’...
  • Page 33: Set Recal Date

    To view the product details select “show instrument data” menu in the “advanced options” menu and press ‘ENTER’ key (F1). The information shown is the following:  The serial number  Firmware version  Recalibration date  Pump details  Accuracy %FS page : 33 TRAQC-9 04/2017 EN Rev.4...
  • Page 34: Calibration Of Traqc-9

    TRAQC-9 4.8 Calibration of TRAQC-9 The TRAQC-9 is calibrated by Tradinco Instruments B.V. to achieve the stated accuracy. The calibration report is supplied with the instrument. The user cannot change these factory adjustments. However, it is possible to make adjustments within the predetermined accuracy limits and calibrate the TRAQC-9.
  • Page 35: Current Input

    After entering all milliamp. input data, the TRAQC-9 will confirm at the last ‘ENTER’ key (F1) with a long beep, and automatically revert to the “adjust instrument inputs” menu.
  • Page 36: Adjust Vbat A/D

    TRAQC-9 requests “Input Actual value” When the two pressures applied are to close in range of one another, the TRAQC-9 will not accept the data and requests if another attempt should be done.
  • Page 37: Adjust Instruments Outputs (Optional)

    All adjustments as described in the following chapters are “two point” adjustments: one at minimum value, and one at maximum value. Based on these two points, TRAQC-9 will extrapolate all intermediate data. 4.8.2.1 Current source In order to calibrate the mA signal in source mode, connect the ‘PLUS’...
  • Page 38: Voltage Output

    TRAQC-9 4.8.2.3 Voltage output In order to calibrate the Voltage signal, connect the ‘PLUS’ and ‘MINUS’ 4mm banana sockets of the TRAQC-9 to a multi meter with higher specifications than the TRAQC-9.  Correct the output signal by using the ‘ARROW’ keys.
  • Page 39: Data Transfer

    With AutoCal software installed on the computer it is possible to electronically communicate and retrieve a measurement value. It is also possible to control the TRAQC-9 P or MAVS with the AutoCal software. For this communication the TRAQC-9 makes use of a RS232 or Ethernet interface.
  • Page 40: Maintenance Instructions

    Adjust the 11mm gland compressor nut. Adjustment must be made in order that a light friction is detected when turning the control knob.  When ready tighten the lock nut again. A spare part kit with new needle and seats is available at Tradinco Instruments page : 40 TRAQC-9 04/2017 EN Rev.4...
  • Page 41: Product Specifications

    Resolution : 4, 5 of 6 digits Dimensions : The TRAQC-9 is mounted in a Euro-cassette casing with a height of 3 HE and a width of 36 TE (128.5mm x 182.8mm). Operating temp. : 5 - 45 º C...
  • Page 42: Traqc-9 Cvc Vacuum Controller

    8.3.5 Traqc-9 CVC Vacuum Controller Pressure ranges within 0 to -1 barg (An external vacuum pump is required.) 8.3.6 Traqc-9 CAC Absolute Pressure Controller Pressure ranges within 0 to 10 bara. (Vacuum and pressure supply is required.) page : 42...
  • Page 43: Options & Accessories

    24 VDC for externally powered transmitters  Loop calibration function ( 0 to 24mA sourcing)  24 VDC, 1A power supply, which can be switched on and off with the TRAQC-9 P/MAVS.  UltraClean according to Certificate TIA-UC-1 ...
  • Page 44 User Manual TRAQC-9 Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com page : 44 TRAQC-9 04/2017 EN Rev.4...
  • Page 45 User Manual TRAQC-9 info@tradinco.com page : 45 TRAQC-9 04/2017 EN Rev.4...

This manual is also suitable for:

Traqc-9 pTraqc-9 mavsTraqc-9 cacTraqc-9 cpcTraqc-9 clpcTraqc-9 chpc
