- Page 1 TRAQC-2 PC Portable pressure calibrator with a pressure control valve User manual...
-
Page 2: Table Of Contents
Traqc-2 PC Content General ..................................3 Introduction ..............................3 Warranty ................................. 3 Service of Tradinco Instruments ........................4 Calibration services ............................4 Accreditation ..............................4 Packaging for shipment ..........................4 Safety symbols, notices and warnings ........................5 Responsible use of the Traqc-2 PC ......................... 5 General safety instructions .......................... -
Page 3: General
1 year from the date of shipment. If any such product proves defective during this warranty period, Tradinco Instruments, at its option, will either repair the defective product without charge for parts or labor, or will provide a replacement in exchange for the defective product. -
Page 4: Service Of Tradinco Instruments
If there are questions regarding this manual, proper use of the equipment, or if you have problems using your Traqc-2 PC and you don’t find the answer in this manual, contact either Tradinco Instruments for personal assistance. We are ready to help. -
Page 5: Safety Symbols, Notices And Warnings
User manual Traqc-2 PC 2. Safety symbols, notices and warnings This warning symbol indicates danger for the system and material if the respective safety precautions are not taken, or indicates that danger of injury for persons and the environment and/or considerable material damage (mortal danger, danger of injury) will occur if the respective safety precautions are not taken. - Page 6 User manual Traqc-2 PC WARNING: NOT EXPLOSION PROOF! Using this instrument in an area where devices with intrinsically safe classification is recommended, is prohibited! WARNING: Detachable main power supply cord with inadequate ratings should not be used. WARNING: It is the responsibility of the operator to ensure that pressure in circuits connected to the Traqc-2 PC will never exceed their safe working pressure.
-
Page 7: About The Traqc-2 Pc

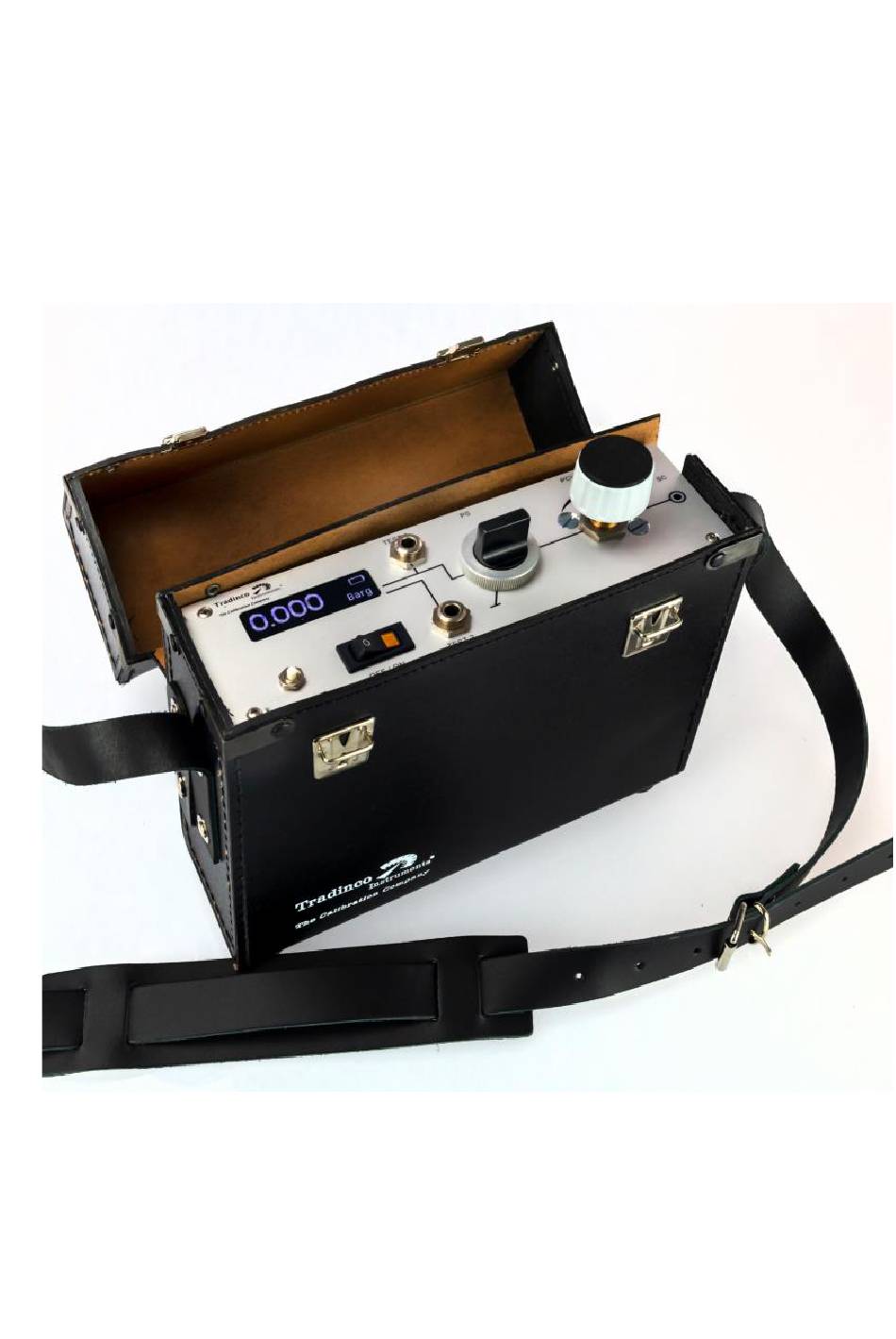

User manual Traqc-2 PC 3. About the Traqc-2 PC Functions of the Traqc-2 PC The Traqc-2 PC is a portable pressure calibrator to perform a calibration, a simple pressure measurement or a leak test. The Traqc-2 PC is not suitable for generating pressure. However, an UUT can be pressurized by means of a supply pressure, which can be regulated with the pressure control valve if desired. -
Page 8: Display Terms
User manual Traqc-2 PC Display terms Term Description P test [bar/psi/kPa] Pressure test Terms of the manual Term Description Meaning Clock Wise Counter Clock Wise User under test (the object that is being tested) A closer look at the instrument Display Pressure control valve On/off switch... -
Page 9: Operation Of The Traqc-2 Pc
User manual Traqc-2 PC Storage compartment 4. Operation of the Traqc-2 PC The supply pressure which must be connected should not exceed 10 bar. The pressure to the test terminals, test 1 and test 2, should never exceed the maximum pressure in accordance with the type label. -
Page 10: Display
User manual Traqc-2 PC Display The display shows the following information: • The battery status • The test pressure Two-way switch The instrument is equipped with a two-way pneumatic switch that has two functions: • The pressure from the pressure control valve is passed to the pressure sensor and to the test terminal (test 1 or test 2). -
Page 11: Using The Traqc-2
User manual Traqc-2 PC 5. Using the Traqc-2 Applying supply pressure to the UUT • Turn on the instrument • Press short the zero/unit button to set the desired unit (barg, psig or kPag) • Turn the selector switch in the forward direction •... -
Page 12: Maintenance
To ensure that your Traqc-2 PC always displays the correct reading on the display, the Traqc-2 must be calibrated regularly at Tradinco Instruments. The recommended frequency of the recalibration (annually, every two years or else) depends, among other things, on the number of operating hours and the required measurement accuracy. -
Page 13: Specifications
User manual Traqc-2 PC 7. Specifications User manual Traqc-2 PC rev.0 Pagina 13 van 15... -
Page 14: Declaration Of Conformity
User manual Traqc-2 PC 8. Declaration of conformity User manual Traqc-2 PC rev.0 Pagina 14 van 15... - Page 15 User manual Traqc-2 PC Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com sales@tradinco.com User manual Traqc-2 PC rev.0 Pagina 15 van 15...
