- Page 1 TRAQC-2 PCHP Portable pressure calibrator with hand pump User manual...
-
Page 2: Table Of Contents
Accreditation ..............................4 Packaging for shipment ..........................4 Safety symbols, notices and warnings ........................5 Responsible use of the Traqc-2 PCHP ......................5 General safety instructions ..........................5 Warnings and caution notices ........................5 About the Traqc-2 PCHP ............................7 Functions of the Traqc-2 PCHP ........................ -
Page 3: General
Also a leak test can be performed with the Traqc-2 PCHP The built-in pressure cell has been calibrated to confirm that the measured value is within the accuracy described in the specifications. -
Page 4: Service Of Tradinco Instruments
If there are questions regarding this manual, proper use of the equipment, or if you have problems using your Traqc-2 PCHP and you don’t find the answer in this manual, please contact Tradinco Instruments if you require personal assistance. -
Page 5: Safety Symbols, Notices And Warnings
The battery of the Traqc-2 PCHP should be charged regularly. Only use the supplied USB cable for this, which may be connected to a USB charging point that delivers a maximum of 500 mA/hr to prevent overloading the internal electronics. - Page 6 As soon as the pressure on the pressure sensor increases to 1 bar above the measuring range specified for the instrument, the supply will be cut off to protect the pressure sensor from damage. User manual Traqc-2 PCHP rev.0 Pagina 6 van 16...
-
Page 7: About The Traqc-2 Pchp

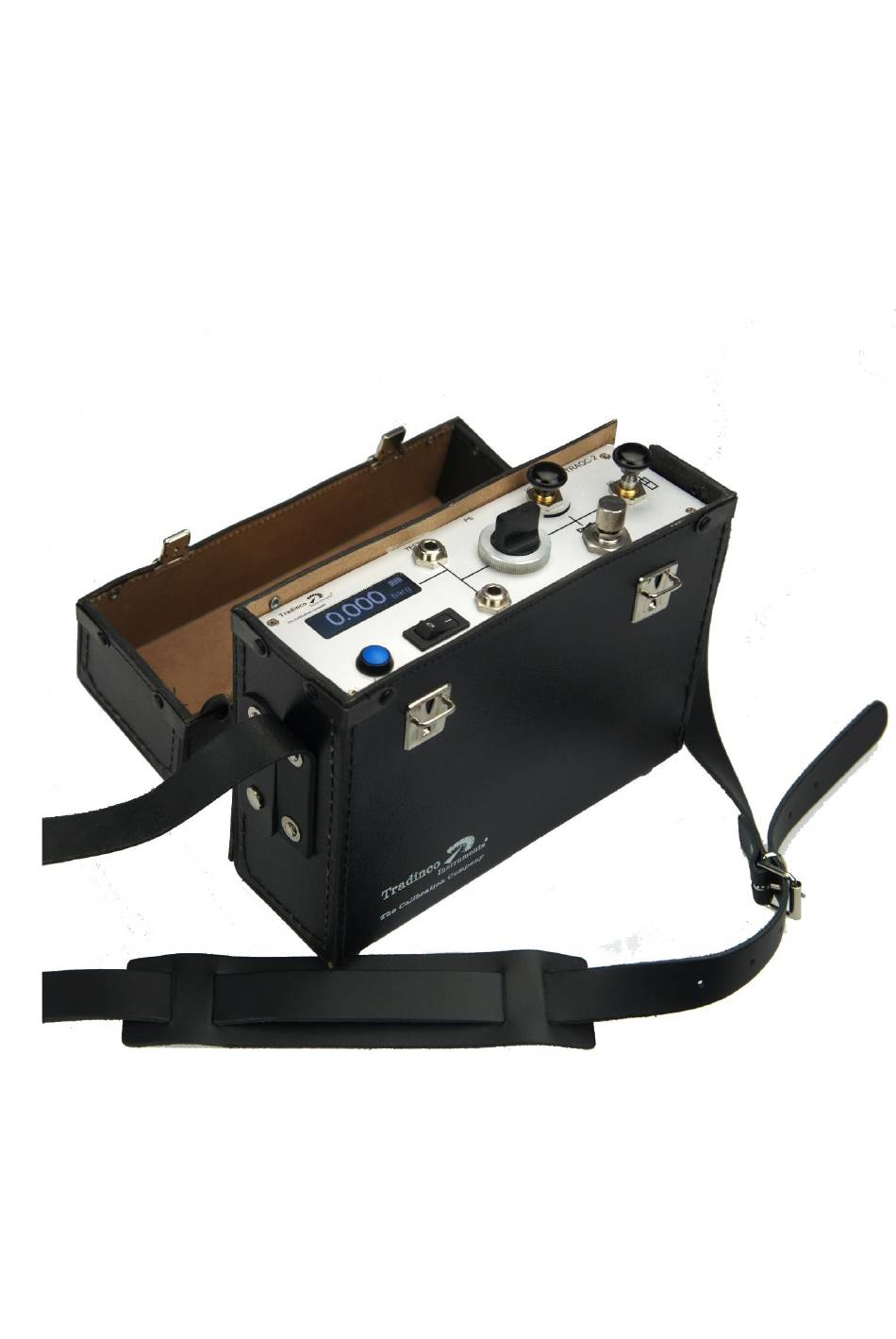

Functions of the Traqc-2 PCHP The Traqc-2 PCHP is a portable pressure calibrator to perform a calibration, a simple pressure measurement or a leak test. The Traqc-2 PCHP is suitable for generating pressure with the built-in hand pump and volume controller. -
Page 8: Display Terms
Unit Under Test (the object that is being tested) A closer look at the instrument Display Volume controller Two-way Pressure control valve On/off switch pneumatic switch Zero/unit switch Test terminals Hand pump Battery connector USB B Under swivel flap User manual Traqc-2 PCHP rev.0 Pagina 8 van 16... -
Page 9: Operation Of The Traqc-2 Pchp
Traqc-2 PCHP Storage compartment 4. Operation of the Traqc-2 PCHP The supply pressure which must be connected should not exceed 10 bar. The pressure to the test terminals, test 1 and test 2 , should never exceed the maximum pressure in accordance with the type label. -
Page 10: Display
The test terminals (test 1 and test 2) and the pressure sensor are disconnected from the pressure source. Pressure relief valve The pressure relief valve allows to lower the applied pressure and allow the applied pressure to be reduced completely up to 0 barg. User manual Traqc-2 PCHP rev.0 Pagina 10 van 16... -
Page 11: Hand Pump
Hand pump With the hand pump a pressure of up to 5 bar can be made. Volume controller The volume controller allows precise control of the pressure applied by the hand pump. User manual Traqc-2 PCHP rev.0 Pagina 11 van 16... -
Page 12: Using The Traqc-2 Pchp
Measuring external pressure If no pressure has to be generated, the pressure of an UUT can be measured with the Traqc-2 PCHP. The pressure can be read off directly from the display. The test circuit and the Traqc-2 PCHP is as short as possible: •... -
Page 13: Maintenance
The Traqc-2 PCHP is equipped with a pressure measuring cell, whose measurement accuracy decreases over time. This is a natural process. To ensure that your Traqc-2 PCHP always displays the correct reading on the display, the Traqc-2 must be calibrated regularly at Tradinco Instruments. The recommended frequency of the recalibration (annually, every two years or else) depends, among other things, on the number of operating hours and the required measurement accuracy. -
Page 14: Specifications
User manual Traqc-2 PCHP 7. Specifications User manual Traqc-2 PCHP rev.0 Pagina 14 van 16... -
Page 15: Declaration Of Conformity
User manual Traqc-2 PCHP 8. Declaration of conformity User manual Traqc-2 PCHP rev.0 Pagina 15 van 16... - Page 16 User manual Traqc-2 PCHP Tradinco Instrumenten-Apparaten b.v. Radonstraat 250 2718 TB Zoetermeer The Netherlands +31 79 2033133 www.tradinco.com sales@tradinco.com User manual Traqc-2 PCHP rev.0 Pagina 16 van 16...
