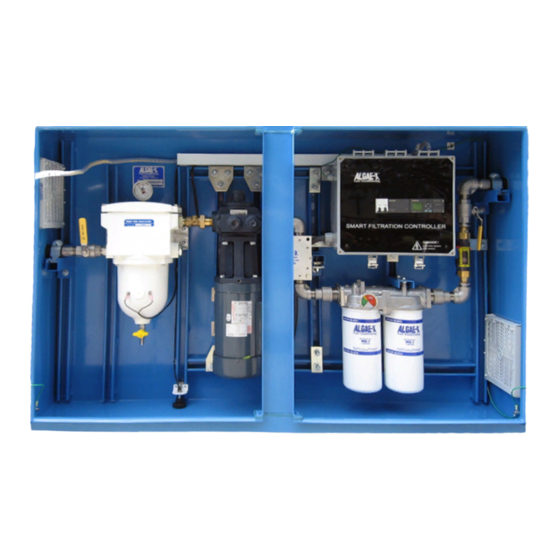

- Page 1 STS 6020 | 7020 Instruction, Operating, & Maintenance Manual ENCLOSED FUEL MAINTENANCE SYSTEM REV03016720010220 5400 Division Dr. | Fort Myers, FL 33905 239 690-9589 | Toll Free 877-425-4239 | FAX 239 690-1195 www.AXI-International.com...
- Page 2 REV03016720010220...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ................................2 General Overview ................................4 STS 6020 | 7020 Specifications ............................4 System Components ................................5 Control and Safety Devices ..............................5 Pump/Motor ..................................5 Mechanical Water Separator .............................. 5 Fuel Conditioner ................................. 5 Fine Filters .................................. - Page 4 Auto Water Drain (AWD) – If Applicable .......................... 22 Troubleshooting ................................23 Symptom Troubleshooting Guide ............................. 23 AXI International Limited Warranty ..........................24 Warranty Claim Procedure ............................... 25 Technical Assistance and Ordering ..........................26 Accessories and Additional Configuration Parameters ....................26 Replacement Filter Elements ............................
-
Page 5: General Overview
General Overview STS 6020 | 7020 Specifications Nominal Flow Rate…………………………………………….. 20 GPM/1,200 GPH (75.7 LPM/4,542.5 LPH) 9,600 gallons (36,340 liters) per 8-hour shift 28,800 gallons (109,020 liters) per 24-hour shift Primary Filter…………………………………………………… Mechanical Water Separator Secondary Filters………………………………………………. 1, 3, 10, or 25μ Fine Filter or 3, 10μ Water Block Fuel Conditioner……………………………………………….. -
Page 6: System Components
System Components Control and Safety Devices • System Controller Incorporated PLC-based Timer Memory retention during power outages Alarm Indicator Light(s) Control Circuit Breakers (CB1, CB2) Pump Control Selector Switch {Hand (Manual) / Off / Auto} Alarm Reset Push Button Pump Running Indicator Light System Power Indicator Light Emergency Stop (E-Stop) Push Button 6000 Series Controller:... -
Page 7: Auto Water Drain (Awd) Assembly - If Applicable
If Applicable Auto Water Drain (AWD) Assembly – • Accessory Pump • Additional Water Detection Alarm Module • Additional Water Detection Sensor Probe • Solenoid Drain Valve • Basket Strainer • Water Collection Drum High Water Level Float Switch If Applicable Manual Additive Injection –... -
Page 8: System Operation
Note: If the Pump Overload Alarm triggers, please contact AXI International. Once triggered alarms are addressed, each alarm can be reset via the Alarm Reset button on the enclosure door panel. -
Page 9: Multi-Tank - If Applicable
Note: For information on factory set points or timer delays please refer to the “Accessories and Additional Configuration Parameters” subsection in the “Technical Assistance and Ordering” section. If Applicable Multi-Tank – 1. From the Main Menu screen select “CONFIG” 2. Enter password (9999) 3. -
Page 10: Auto Additive Injection - If Applicable
7. After injecting the desired amount of additive, close the Injection Port Ball Valve and return the System Ball Valve to the fully open position If Applicable Auto Additive Injection – 1. To start Auto Additive Injection, navigate from the Main Menu to the Additive Injection screen on the HMI. 2. -
Page 11: Primary Inspection
Primary Inspection Upon arrival, the system and accessories must be visually inspected before installation. Improper handling during shipping may cause physical or electrical problems. Immediately report or note any damages to the shipper. Checklist If the packing crate shows signs of damage inspect the system for damage. Check the entire system for damage that could indicate internal mechanical or electrical problems. -
Page 12: Installation
If the motor is running in the wrong direction, contact AXI International immediately. !WARNING!: The whole system (enclosure, plumbing, motor, electric sub panel) must be properly grounded for operator safety. -
Page 13: Typical Plumbing Installation (Schematically)
Use proper quality approved fuel line materials with similar inner diameter (ID) to the inlet/outlet of the system. For extended suction side plumbing runs, it is recommended to install oversized pipe, (1/4” to 1/2” increased ID) (Ref.: Page 4 – Suction Capability). Note: Flexible plumbing is strongly recommended for system inlet and outlet connections to external plumbing in order to avoid issues with thermal expansion, prevent putting any stress on the internal fittings of the system, and enable ease of maintenance/installation. - Page 14 Ensure all external electrical connections are linked to their corresponding ball valve as indicated by labels on the sides of the system’s enclosure. The provided external High Tank Fuel Level Alarm Inputs (see provided electrical drawings) must be wired to the Normally Closed High Level Alarm Contacts on each tank to avoid overfilling and potential spills.
-
Page 15: Controller
Setting the Current Date and Time (7000 Series Controller) 1. Please make sure the pump is set to “OFF”. 2. On the home screen, long-press (for a few seconds) to the right of the AXI logo until a new screen appears. 3. Select ‘Enter Info Mode’. -
Page 16: Touchscreen Menu Structure (7000 Series Controller)
3. To set up a runtime simply enter a ‘Start’ and ‘Stop Time’ (using military format) in one of three timer boxes for the desired weekday. 4. To toggle between weekdays, simply press the available buttons on the left or right of the screen labeled with the abbreviation for the previous or next day in the week (e.g. -
Page 17: Priming The System
Priming the System The pump supplied with the system is NOT automatically self-priming and must not be run dry. !WARNING! If the pump is allowed to run without fuel, pump damage can occur. Priming Procedure The head of the pump on the system is shipped from the factory filled with No. 2 Diesel Fuel Oil in it to facilitate initial lubrication. -
Page 18: Commissioning/Initial Start-Up
Switch Adjustments Note: Please contact AXI International before adjusting either the vacuum or the pressure switch to avoid voiding the system’s warranty. Vacuum and Pressure Switches When the value exceeds the set point of the switches’... -
Page 19: Internal Pressure Relief Adjustment
Internal Pressure Relief Adjustment Note: Please consult AXI International before performing any internal pressure relief settings to avoid warranty issues The pump used on the STS systems come from the factory with a pre-set internal pressure relief bypass. If the pressure on the discharge of the pump rises past this set point, the internal bypass will open and recirculate the fuel in the head of the pump to protect the itself and any downstream components. - Page 20 The pump should immediately turn off and the “Tank Overflow” alarm should be indicated on the System Controller. Reset the alarm by pushing the Alarm Reset button on the enclosure door panel. Note: If any of the above described alarm test procedures fail or if any alarm trip value deviates, immediately contact AXI International.
-
Page 21: Maintenance
Maintenance The system should be visually inspected and tested a minimum of every six (6) months according to the procedure below during light duty cycles. Monthly inspections are recommended for systems that are being used in excess of an average of eight (8) hours a day and five (5) days a week. Preventative Maintenance Prior to performing the maintenance procedure ensure that: 1. -
Page 22: Servicing The Fine Filter(S)
It is recommended to use adequate protection and proper precautions if the fuel at-hand contains biocide type products. Replacement Filter Chart STS SERIES FILTERS All Filters are absolute, unless otherwise noted | wb: waterblock | SS: Stainless Steel Screen Spin-On Filters 3µ... -
Page 23: Auto Water Drain (Awd) - If Applicable
If Applicable Auto Water Drain (AWD) – Servicing Auto Water Drain Strainer: 1. Turn the enclosure door panel selector switch to the “OFF” position – making sure the pump will not turn on. 2. Close the system’s Inlet and Outlet Isolation Ball Valves. 3. -
Page 24: Troubleshooting
Troubleshooting Symptom Troubleshooting Guide No fuel delivery Pump requires too much power 1. Pump does not run 1. Liquid too viscous 2. Pump is not primed 2. Bent pump shaft, binding rotor 3. Fuel supply line blocked 3. Misalignment of pump/motor coupler 4. -
Page 25: Axi International Limited Warranty
This warranty is not intended to supplant normal inspection, care and service of the products covered by the user, and shall not obligate AXI International to provide free service during the warranty period to correct breakage, maladjustment, or other difficulties arising out of abuse, misuse, or improper care and maintenance of such products. Our... -
Page 26: Warranty Claim Procedure
AXI International reserves the right at any time to make changes in the design, material, function and specifications of its products. Any such changes shall not obligate AXI International to make similar changes in such products that were previously manufactured. -
Page 27: Technical Assistance And Ordering
Fort Myers, FL 33905 Tel: +1-239-690-9589 Fax: +1-239-690-1195 Email: info@axi-international.com Internet: www.axi-international.com Please provide the following information: Serial Number of your system, the required part numbers and quantity. The drawings/parts list included in this manual are the most accurate source of part numbers.
