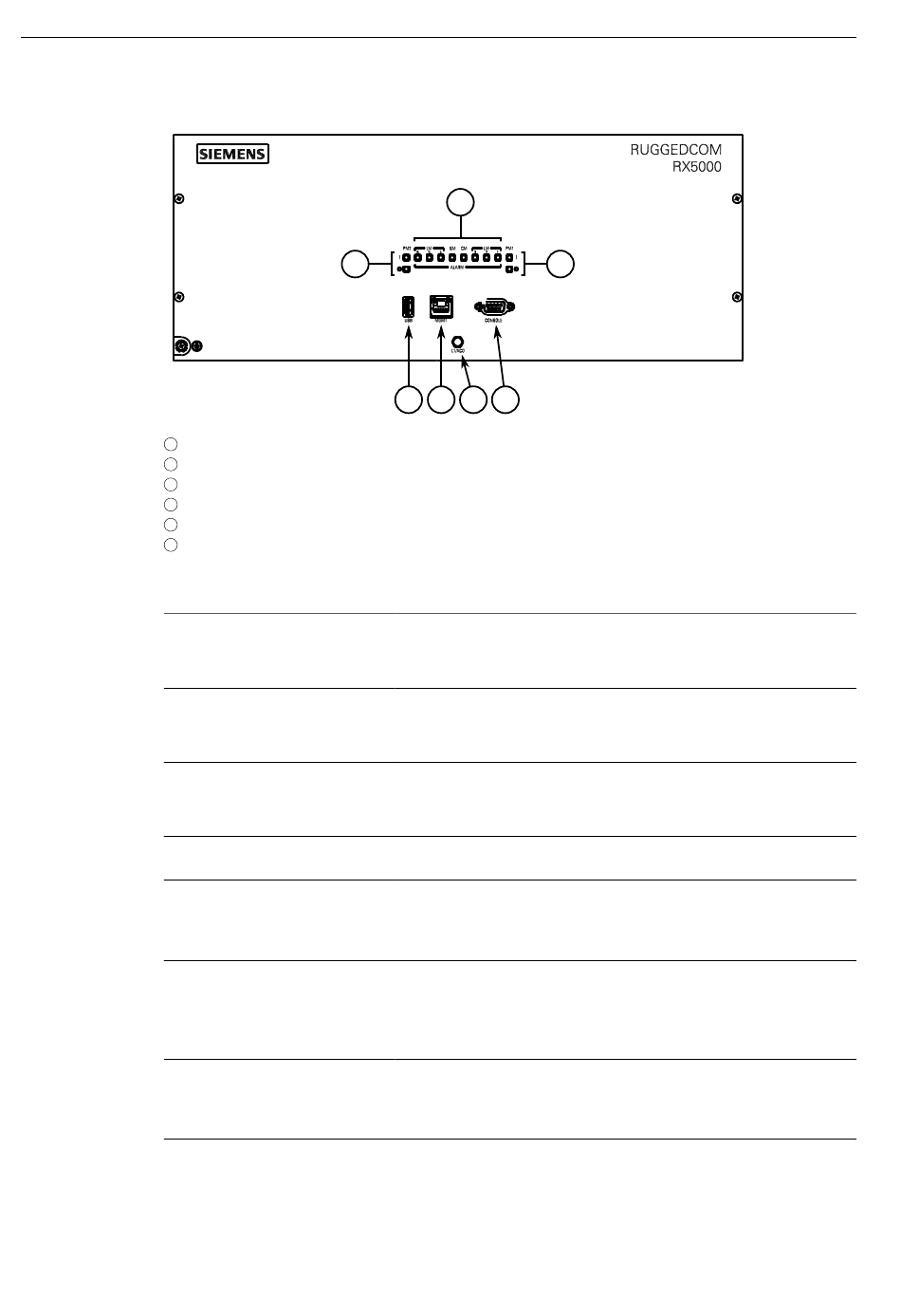

Figure 1.2
Power Supply Module Indicator
LEDs
Alarm Indicator LED
Lamp Test/Alarm Cut-Off (LT/
ACO) Button
Management Port
Utility USB Port
Compact Flash Card Port
RS232 Serial Console Port
Failsafe Alarm Relay
RUGGEDCOM RX5000
Installation Manual, 01/2021, C79000-G8976-1058-13
1
Power Supply Module Indicator LEDs
Alarm Indicator LEDs
Utility USB Port
Management Ethernet Port
Lamp Test/Alarm Cut-Off (LT/ACO) Button
RS232 Serial Console Port (DB9)
Front Panel
2
1
3 4 5 6
Indicate the status of the power modules.
• I = The power supply is receiving power
• O = The power supply is supplying power
Indicates when an alarm condition exists.
• Green = Alarms cleared/acknowledged
• Red = Alarm
This button performs two functions:
• Press and hold this button to test all indicator LEDs
• Press and release this button to acknowledge an active alarm
This 10/100Base-T Ethernet port is used for system management
that is out-of-band from the switch fabric.
Use the USB port to upgrade the RUGGEDCOM RUGGEDCOM
RX5000 software or install files, such as configuration files and
feature key files. For more information, refer to the RUGGEDCOM
ROX Configuration Manual for the RUGGEDCOM RX5000.
Houses the CompactFlash (CF) card that contains active and backup
installations of RUGGEDCOM RUGGEDCOM RX5000, along with
the configuration database and other system data. For more
information, refer to "Accessing the CompactFlash Card (Page
20)".
The serial console port is for interfacing directly with the device
and accessing initial management functions. For information
about connecting to the device via the serial console port, refer to
"Connecting to the Device (Page
Latches to default state when a power disruption or other alarm
condition occurs. For more information, refer to:
• "Connecting the Failsafe Alarm Relay (Page 14)"
Introduction
1.2 Description
19)".
