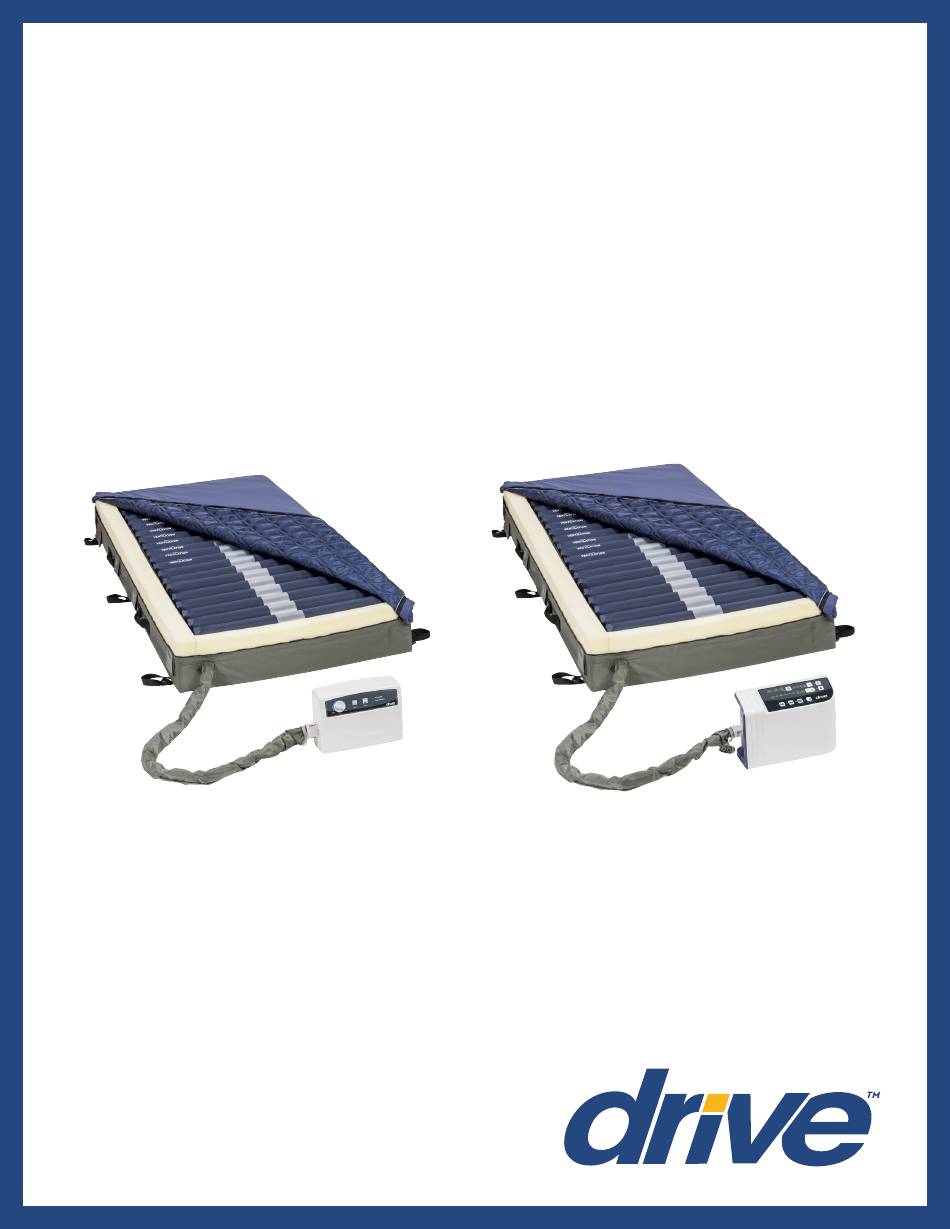

- Page 1 Med-Aire Edge Alternating Pressure & Low Air Loss Mattress Replacement System USER MANUAL Item # 14360-B Item # 14360-P www.drivemedical.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS IMPORTANT PRECAUTIONS ......................3 DOCUMENT SYMBOLS ........................3 INTRODUCTION ..........................5 UNPACKING YOUR MED AIRE EDGE ....................6 PRODUCT FEATURES ........................7 Control Unit ...........................7 Mattress............................8 PRODUCT FUNCTION ........................9 Control Unit ...........................9 Mattress............................10 OPERATION............................12 General............................12 CPR function ..........................13 Pressure Range Selection ......................13 PATIENT POSITIONING AND COMFORT ..................14 CLEANING AND MAINTENANCE .....................15 TROUBLESHOOTING ........................17... -
Page 3: Important Precautions
• Do not place or store product where it can fall or be pulled into a tub or sink. • Do not place in or drop into water or other liquids. • Do not open the control unit without referring to Drive DeVilbiss technical service department first. - Page 4 This system is NOT to be used when such gaps are present. User/Facility staff are responsible for ensuring that all mattresses properly fit the bed frames. Drive DeVilbiss is not responsible for the improper placement of its systems on ill-fitting bed frames. Health care professionals assigned to each patient should make the final determination whether side or assist rails are warranted after assessing patient risks based on the individual’s needs and condition.
-
Page 5: Introduction
INTRODUCTION Pressure injuries are defined as localized injuries of the skin and/or underlying tissue over a bony prominence as a result of pressure or pressure in combination with shear. Support surfaces or specialized mattress systems are used as part of an overall, multi-disciplinary, multi-dimensional care plan intended to prevent and treat pressure injuries. -
Page 6: Unpacking Your Med Aire Edge
INTRODUCTION Shear strain occurs when tissue is deformed or damaged due to shear stress or force exerted parallel to the plane of interest. The Med Aire Edge’s cover is constructed of a smooth, stretch, polyurethane material with low shear and low friction properties to protect skin integrity. 3) Spinal Cord Injury The Med Aire Edge system can be used for patient’s with spinal cord injury once the acute injury has been stabilized and these patients have been assessed and cleared by the appropriate clinician. -
Page 7: Product Features

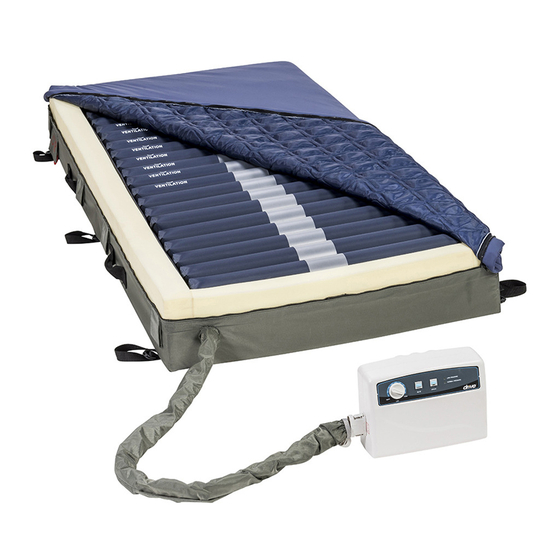

PRODUCT FEATURES The Med Aire Edge mattress replacement system is comprised of two components: 1) Therapy air cell mattress replacement with 360 degree foam perimeter 2) Therapy control unit The Med Aire Edge control unit is available in two configurations: 1) Control Unit 14530P: Analog system 2) Control Unit 14360XP: Digital system Control Unit 14530P (Figure 1) -
Page 8: Mattress
PRODUCT FEATURES • Static button is available to discontinue alternation therapy for patient transfers, caregiving, comfort, or preference. • Low pressure, power failure and system failure indicators allow the user to be aware of any air pressure changes, power outages or system malfunctions, respectively. •... -
Page 9: Product Function
PRODUCT FUNCTION Control Unit 14530P Power switch is located on the side of the control unit. Use the power switch to turn the system off and on. Analog Pressure Dial • Adjust the dial to correspond to the patients’ appropriate weight setting or comfort level. Static Pressure switch •... -
Page 10: Mattress
PRODUCT FUNCTION Static mode (6) • Press to set the system to static therapy mode. The system will revert to the previously set alternation mode after 120 minutes. Auto Firm (7) • Press to set the air mattress to quick inflation mode, which facilitates nursing and caring. The system will revert to the previously set therapy mode after 30 minutes. - Page 11 PRODUCT FUNCTION Warning For important precautions, see pages three and four Caution Do not place the control unit on the floor. Position the power cord to prevent tripping hazards 1) Remove all existing covers, sheets and mattress from the bed. 2) Unpack the Med Aire Edge system and inspect all components for damage.
-
Page 12: Operation
OPERATION Note Always read the operating instructions in this manual before use. General This product is designed to provide pressure redistribution while maximizing comfort to patients. Please be sure to operate this equipment as instructed to optimize its value. Please be sure to follow the instructions corresponding to the control unit being used. -
Page 13: Cpr Function
OPERATION Press the Auto Firm button to automatically inflate the mattress to the maximum level Step 3 (55mmHg) for about 20 minutes. The pressure will return to a previously set level after 20 minutes. Once fully inflated, the control unit will switch into alternating therapy mode at the default Step 4 setting of 10 min and 30mmHg. -
Page 14: Patient Positioning And Comfort
6) Revaluate with the hand check and adjust to patients’ comfort level. Recommended Linen: Drive DeVilbiss Healthcare bed support surfaces are designed to be used with appropriate linens. Deep pocketed fitted or flat sheets are recommended. Multiple layering of linens or underpads beneath the patient should be avoided, when possible, for the prevention and treatment of pressure injuries. -
Page 15: Cleaning And Maintenance
CLEANING & MAINTENANCE Warning Specialty active and reactive support surfaces are designed to redistribute pressure and reduce shearing/ friction forces against the patients’skin. Patient migration is possible due to the nature of these products. Always ensure the patient is positioned properly within the confines of the bed and specialty system. Note It is important to follow these procedures before using the system or between patient use. - Page 16 CLEANING & MAINTENANCE d. 1:9 Bleach and water dilution may be used. e. With the mattress fully deflated, wipe down all surfaces around and in between the air cells, including the cells. f. Covers may be immersed and soaked in disinfectant for the required incubation period. After pre- soaking, the cover may be rinsed through a regular cycle in a washer with no soap then laundered with mild detergent (wash temperature 93°F/34°C, rinse temperature 78°F/26°C or on the coldest setting).
-
Page 17: Troubleshooting
TROUBLESHOOTING Problems Reasons Maintenance 1. After powered on, check if visible LED light turns on. If not, please check the below issues: 1. Pump does not work. 1.1 Check if power cord is plugged into appropriate voltage AC outlet. 1.2 Contact your provider for possible Pump issue warranty claim. -
Page 18: Specifications
SPECIFICATION Control Unit Mattress Item: 14530P Item: 14360M Power supply: 120/60Hz Size: 35"(W) x 80"(L) x 6"(H) Air output: 8 liter/min Top cover: Nylon / PU with zipper Pressure range: 30-60 mmHg Air cells: Nylon / PU Cycle time: 10 min Base: Durable Nylon / PVC 840D Case Material: Flame Retardant ABS 20 EA x 5"... -
Page 19: Warranty
WARRANTY 14360-B: 18 months for control unit and mattress Your Drive brand product is warranted to be free of defects in materials and workmanship for 18 months of the original consumer purchaser. This device was built to exacting standards and carefully inspected prior to shipment. This 18 month Limited Warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the consumer of years of dependable service. - Page 20 99 Seaview Boulevard Port Washington, NY 11050 Phone: 516-998-4600 Fax: 516-998-4601 www.drivemedical.com REV 0.02.20...
