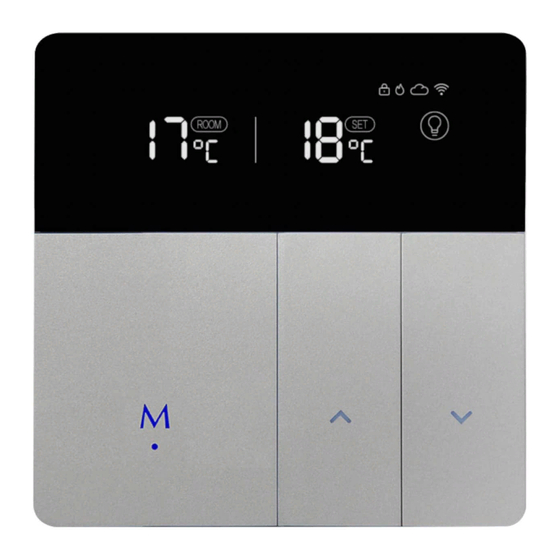

TH213 Wifi Thermostat
Thank you for purchasing our
smart thermostat TH213 Wifi.
Due to the continuous further development of the device software (firmware), the range of functions
described here or the method of operation may differ. The current version of the manual can be
downloaded from the shop under the
Features:
•
Programmable/operatable by app
•
Compatible with Amazon Alexa, Google Assistant and IFTTT
•
Easy to install
•
Weekly program 4 switching times (App: Monday to Friday and Saturday, Sunday)
•
External sensor or room sensor
Technical data:
•
Operating voltage: 230V/AC
•
Switching capacity: 3680W/16A (resistive load)
•
Temperature sensor: internal or external sensor (NTC 10kOhm)
•
Temperature limitation external sensor: 20 - 90°C / off (recommended max. 26°C)
•
Window-Open-Detection
•
Optimum start (temperature is reached at the set time)
•
Frost protection: 5 - 30°C (1°C steps)
•
Operating temperature: +5 ~ 30°C
•
Accuracy: +/- 1°C
•
LCD-display, illuminated
•
Dimensions: 86mm x 86mm x 13mm
•
Colour: Silver/Black
•
Protection Type / Protection class: IP21 (sensor IP44) / 2
•
Certification: CE, ROHS, WEEE
Article
Downloads Tab.
Advertisement
Related Manuals for Mi-Heat TH213
Summary of Contents for Mi-Heat TH213
- Page 1 TH213 Wifi Thermostat Thank you for purchasing our smart thermostat TH213 Wifi. Due to the continuous further development of the device software (firmware), the range of functions described here or the method of operation may differ. The current version of the manual can be...
- Page 2 Important information before commissioning: Please read the complete instructions before starting to install the thermostat. The thermostat must be installed by a qualified person. Only use the thermostat as described in this manual. Always disconnect the power supply during installation work. Safety notes: When handling products which are supplied with electrical voltage, the applicable VDE regulations must be observed, in particular VDE 0100, VDE 0550/0551, VDE 0700, VDE 0711 and VDE 0860.
- Page 3 Description Display symbols Heating symbol: - Lights up permanently when heating is in progress and disappears when the target temperature has been reached. - Flashes if the set limiting temperature of the external sensor is reached. Window-Open- - Appears if window open detection is enabled. The symbol Detection flashes if an open window is detected and switches off the heating.
- Page 4 Manual operation: The following thermostat functions can also be set without the App. Function Key operation Press the "M" key and ▲ for 3 seconds, the display will show Change the showing ACTUAL temperature in the display ROOM to the right of the ACTUAL temperature (left display side) (internal/external sensor) when the value of the internal temperature sensor is displayed.
- Page 5 App integration and programming: In order to setup or program the thermostat via Smartphone App, the free TuyaSmart App must first be downloaded and installed from the respective App Store. Minimum Smartphone requirements: iOS9 or newer, Android 4.1 or newer TuyaSmart (Tuya Inc.) App für Android App für Apple iOS...
- Page 6 Enter the verification code you received by Set the password for the Tuya user Now the thermostat can be integrated by e-mail or SMS. account and press "Finish". touching "Add device". To integrate a thermostat, tap on "Small Select the WLAN network (SSID) of the Set the thermostat to teach-in mode: Press Home Appliance"...
- Page 7 The app now searches for devices that are If a device was found, a name can now be Main view: The setpoint temperature is in learning mode. assigned. After touching "Done", the displayed in the middle and the current integration of the thermostat is room temperature (Indoor Temp) above it.
- Page 8 An individual heating profile can be stored Here you can select whether only the By touching the "pen" symbol in the upper here. internal or only the external sensor is to be right corner of the main view of the used for temperature determination.
- Page 12 V1.7 (11/2020 – Device software: 3.1.1 / MCU 3.0.5) Declaration of conformity Mi-Heat Heizsysteme GmbH hereby declares that the product TH213 is in compliance with the RoHS Directive 2011/65/EU, the EMC Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the Radio Equipment Directive 2014/53/EU.
