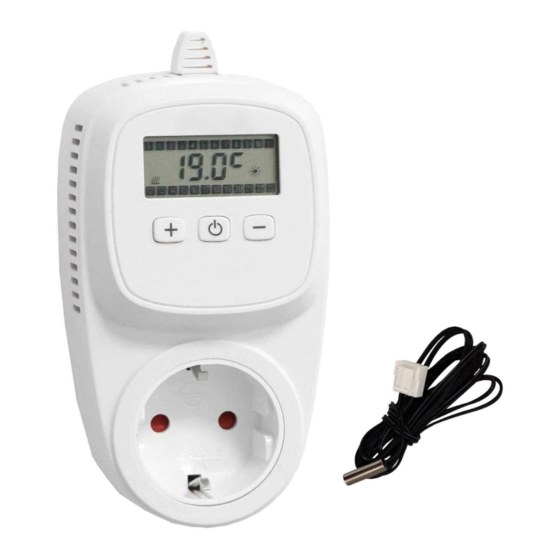

Sockets thermostat TC-500 Wifi
Thank you for choosing our smart
socket outlet thermostat TC-500 Wifi
Features:
Programmable / operable via app
Compatible with Amazon Alexa, Google Assistant and IFTTT
Easy to install
Simple 3-button operation
Heating and cooling mode
Integrated heat pump protection
Simply structured display
Technical data:
Operating voltage: 230Vac
Switching capacity: 3600W/16A (resistive load) /3A capacitive load
Backup memory: EEPROM
Temperature sensor: internal or external sensor
Temperature setting: 5°C - 35°C (Standard value: 28°C)
Operating temperature: +5 ~ 65°C
Accuracy: +/- 0.5°C (+/- 1°F)
Dimensions: 70 x 41.5 x 140mm
Colour: White
IP protection class: 20 (Sensor IP44)
Certification: CE

Advertisement

loading
Need help?

Need help?

Do you have a question about the TC-500 Wifi and is the answer not in the manual?

Questions and answers

Summary of Contents for Mi-Heat TC-500 Wifi

  • Page 1 Sockets thermostat TC-500 Wifi Thank you for choosing our smart socket outlet thermostat TC-500 Wifi Features: • Programmable / operable via app • Compatible with Amazon Alexa, Google Assistant and IFTTT • Easy to install • Simple 3-button operation •...
  • Page 2 App integration and programming: In order to setup or program the thermostat via Smartphone App, the free TuyaSmart App must first be downloaded and installed from the respective App Store. Minimum Smartphone requirements: iOS9 or newer, Android 4.1 or newer TuyaSmart (Tuya Inc.) App für Android App für Apple iOS...
  • Page 3 Enter the verification code you received by Set the password for the Tuya user Now the thermostat can be integrated by e-mail or SMS. account and press "Finish". touching "Add device". To integrate a thermostat, tap on " Small Select the WLAN network (SSID) of the Set the thermostat to teach-in mode: Press Home Appliance"...
  • Page 4 The app now searches for devices that are If a device was found, a name can now be The picture shows the main view of the in learning mode. assigned. After touching "Done", the thermostat. The setpoint temperature is integration of the thermostat is shown in the centre of the display and the successfully completed.
  • Page 5 An individual heating profile can be stored Here, different timers can be programmed Shows the further settings and integration here for each day of the week. to switch the timer on or off. possibilities in the language control systems Amazon Alexa and Google Assistant.
  • Page 6 Manual setting / programming: To enter the setting menu, press and hold the "+" and "-" keys for approx. 4 seconds while they are switched off (no display). You can switch between the different setting levels by repeatedly pressing the On/Off key (centre key). You can change the values of the respective setting with the "+"...
  • Page 7 Description Display indications: The display shows the current room temperature in the centre (depending on the setting of the internal/external sensor). In addition, the following modes are displayed, provided they are active: = Heating mode = Cooling mode = Heat pump protection On = Heat pump protection Off = Use of external temperature sensor = Use of internal temperature sensor...
  • Page 8 The CE mark is a free trade mark that is exclusively addressed to the authorities and does not contain any assurance of properties. Dokumentation © 2020 Mi-Heat Heizsysteme GmbH All rights reserved. No part of this manual may be reproduced in any form or by any means without the written permission of the publisher.
