- Page 1 Bure XL 56-315 56-315/75 User Manual 56-315/75-UK 56-315/75-PU Technical Manual 56-315-PU-AUS 56-315-AUS 56-315-CAN Service Manual 56-315-PU 56-315-PU-UK 56-315-B/0 56-315-B/1 56-315-B/0-PU 56-315-S 56-315-UK 56-315/100 SWL: 240 kg/ 529 lbs D I R E C T H E A LT H C A R E G R O U P. C O M...
-
Page 2: Table Of Contents

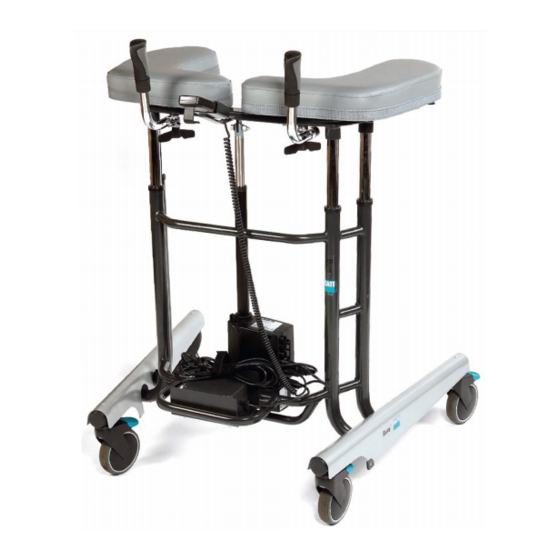

Bure XL Bure XL was designed for the bigger, heavier patient and therefore provides extra space and strength. Because extra powerful aids are required in the care and nursing of heavier patients, Bure XL is always supplied with electric drives. -
Page 3: Intended Use
• Inspect the device regularly to detect any signs of damage. If there are any visible signs of damage, contact Direct Healthcare Group Customer Service. • In case of an electrical model of the device, check that the hand control does not show signs of wear before every use. -
Page 4: Raising And Lowering The Frame
B U R E X L Warnings • The caregiver must be able to read and understand the Manual/IFU of the product. • It is important to only use approved accessories as stated in the manual/IFU to prevent unintended detachment of components and subsequently a fall that may lead to patient injury. •... -
Page 5: Control Box Wiring
B U R E X L 7. Control Box Wiring Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. NOTE! Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged. -
Page 6: Maintenance
B U R E X L 10. Maintanance Recommended at least once per year. Check that Action Clean with lukewarm soap solution or General The Walker feels firm/free from play. alcohol-based cleaning agent (no petroleum products). The Walker does not rattle during manoeuvres. The Walker is level and all of its castors are in contact with the floor. -
Page 7: General Maintenance Advice & Cleaning
Max user Length Height Armrest/ width weight Internal dimension 56-315 Bure XL EL 90cm 240kg 84cm 87-127cm 45-64cm “LIFT” denotes suitable handhold for lifting the Walker NOTE: At least two people are required for lifting. Product weight: 29 kg Max user weight: 240 kg... -
Page 8: Safety Instructions
(metals, plastics, electronics) should be recycled). 15. Warranty We provide two years warranty against manufacturing faults (does not apply to wear parts). For further information or enquiries please contact: Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Tel: +46 (0)8-557 62 200 info.se@directhealthcaregroup.com... -
Page 9: Electrical System - Technical Data (T-Motion/Linak)
B U R E X L 16. Electrical System - Technical Data (T-motion/Linak) Actuator Lift Widening Lift Widening Producer TiMotion TiMotion Linak Linak Voltage 24 V 24 V Push 2000N/1500N 1000N 1000N/1500N/2000N 1200 N Pull 2000N/1500N 1000N 1000N/1500N/2000N 1200 N Self-locking push 1000N 1000N... -
Page 10: Parts List
B U R E X L 17. Parts List Armrest End bushing/plastic Knob Wheel Plastic washer Bolt Washer Washer Handle and grip Protective plate (left/right) Clamp Knob Upper frame Remote control Holder/remote control Battery Control box Chromium-plated tube Actuator (raise/lower) Attachment bolt Bolt, washer (2 pcs), Washer... -
Page 11: Spare Parts
56-334 Drip holder 56-335 Attachment for drip holder 56-336 Oxygen holder 56-337 Side support, adjustable 56-338 Drip rod complete with attachment 56-386 Footplate, Bure XL (plate) 56-389 Soft basket with attachment DIRECTHEALTH C A RE GR OU P. C OM... -
Page 12: Table Of Symbols
B U R E X L 20. Table of Symbols This product complies with the Visual Inspection requirements of the Medical Device Regulation 2017/745 Medical Device Read the manual Caution Product Code Manufacturer information Batch Code Type BF, according to the degree of The device is intended for indoor use protection against electric shock WEEE Symbol... - Page 13 Direct Healthcare Group Sverige AB Torshamnsgatan 35, SE-164 40 Kista, Sweden Medical Device Class I Tel: +46 (0)8-557 62 200 Medical Device Class I. The product complies with the re- info@directhealthcaregroup.com www.directhealthcaregroup.com quirements of the Medical Devices Regulation 2017/745.
