Analog way Picturall Quad Quick Start Manual

QUICK START GUIDE

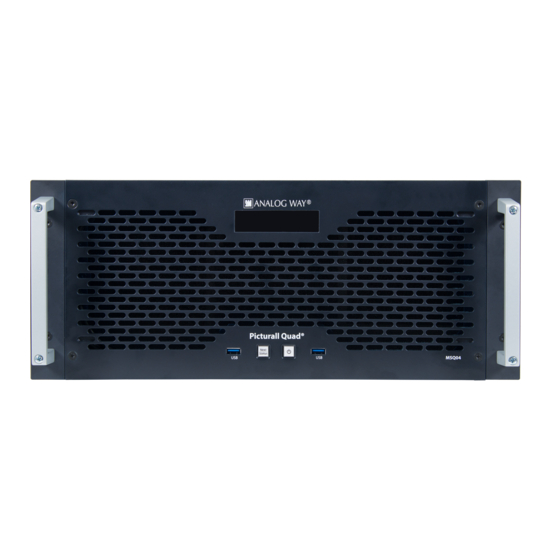

Picturall Quad
Thank you for choosing
able to set up and use your Powerful media server within minutes. Discover the Picturall Quad capabilities
and intuitive interface while commanding top-notch presentations and unleash your creativity for a new
experience in show and event management.
WHAT'S IN THE BOX
• 1 x Picturall Quad (MSQ04-R1)
• 1 x Power supply cord
• 1 x Ethernet cross cable (for device control)
• 1 x USB memory stick containing software and technical documentation
• 1 x Rackmount kit
• 1 x User manual (PDF version)*
• 1 x Quick start guide*
* User manual and quick start guide are also available on
QUICK SETUP & OPERATION
Connecting with the Web Configurator
The Picturall Quad uses standard ethernet LAN
networking. To access the Web Configurator,
connect a computer to the Picturall Quad using
the Ethernet cable. Then on your computer, open
an internet browser and enter the IP address of
the Picturall Quad (displayed on the front panel
screen).
The connection should start.
Often, computers are set to DHCP client (automatic
IP detection) mode. You may need to change the
IP address configuration on your computer before
you can connect. These settings are found in the
properties for your LAN network adaptor, and vary
by operating system.
The default IP address on the Picturall Quad is
192.168.2.140 with a netmask of 255.255.255.0.
Therefore, you can assign your computer a static
IP address of 192.168.2.100 and a netmask of
255.255.255.0 and should be able to connect.
- Ref. MSQ04-R1
Analog Way and the Picturall Quad. By following these simple steps, you will be
Go on our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
www.analogway.com
If the connection is not starting:
• Be sure the computer IP address is on the same
network and subnet as the Picturall Quad.
• Be sure that no two devices have the same IP
address (prevent IP conflicts)
• Check your network cable. You will need a
crossover ethernet cable if you are connecting
directly from the Picturall Quad to the computer.
If a hub or switch is involved, use straight ethernet
cables.
• For more information, please see the user manual
or contact your local technical support.
Once succesfully connected, the Web Configurator
is displayed automatically.
CAUTION!
Mounting using only the front
rack ears is sufficient for fixed
installations. Additional support,
such as the rear rack support or
slide rails, is required for mobile
applications, and recommended
for all.
