Front and back rack mount

Picturall Series Media Servers

Two rack kits are supplied with the device:

• Front ears (Ref: 180469)

• Rear rack mount rail (Ref: 180489)

(Compatible with the following devices: Twin, Quad, and Pro)

Mounting using only the front rack ears is sufficient for fixed installations. Additional

support, such as the rear rack support or slide rails, is required for mobile applications,

and recommended for all.

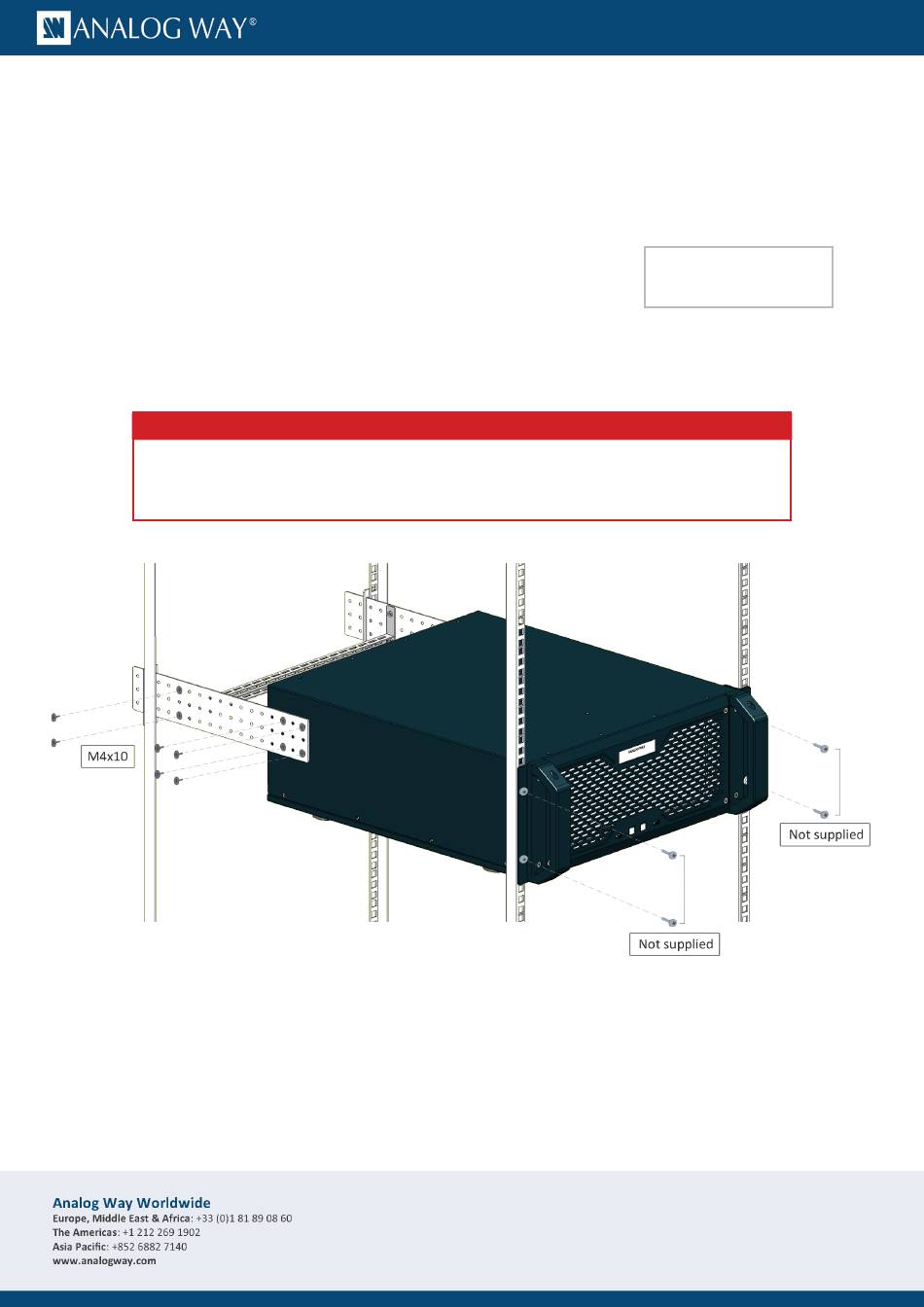

1. Screw the ears on each side of the device using two M4x10 screws per side (M4x10 screws included in the

package).

2. Place the unit into the rack and screw the ears on the rack (screws not provided).

CAUTION!

SCREWS SUPPLIED

16 x M4x10

Table of Contents

Do you have a question about the Picturall Series and is the answer not in the manual?

Page 1 Front and back rack mount Picturall Series Media Servers Two rack kits are supplied with the device: SCREWS SUPPLIED • Front ears (Ref: 180469) 16 x M4x10 • Rear rack mount rail (Ref: 180489) (Compatible with the following devices: Twin, Quad, and Pro) CAUTION! Mounting using only the front rack ears is sufficient for fixed installations.
Page 2 To install the rear rack rail: Once the unit is installed into the rack. 1. Locate the four holes on each side of the device where the screws can be put into. 2. Use four M4x10 screws to fix the rear rail on each side of the device. 3.
