Analog way Picturall Quad Mark II Quick Start Manual

QUICK START GUIDE

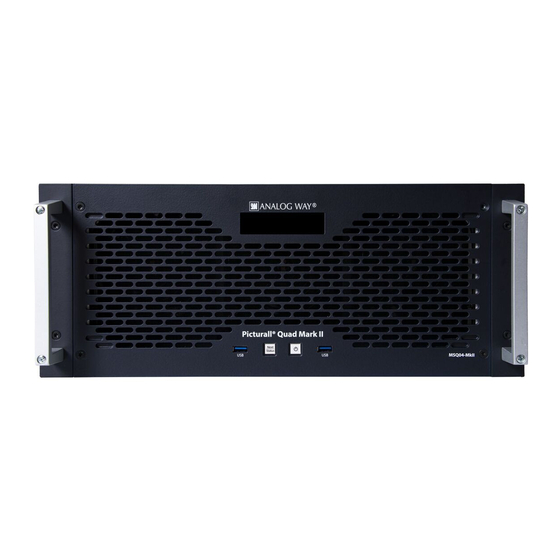

Picturall Quad Mark II
Ref. MSQ04-MkII
Thank you for choosing
be able to set up and use your Powerful media server within minutes. Discover the Picturall Quad Mark II
capabilities and intuitive interface while commanding top-notch presentations and unleash your creativity
for a new experience in show and event management.
WHAT'S IN THE BOX
• 1 x Picturall Quad Mark II (MSQ04-MkII)
• 1 x Power supply cord (or 2x with optional redundant PSU)
• 1 x Ethernet cross cable (for device control)
• 1 x USB memory stick containing software and technical documentation
• 1 x Rackmount kit
• 1 x User manual (PDF version)*
• 1 x Quick start guide*
* User Manual and quick start guide are also available on
QUICK SETUP & OPERATION

Connecting with the Web Configurator

The Picturall Quad Mark II uses standard ethernet
LAN networking. To access the Web Configurator,
connect a computer to the Picturall Quad Mark II
using the Ethernet cable. Then on your computer,
open an internet browser and enter the IP address
of the Picturall Quad Mark II (displayed on the
front panel screen).
The connection should start.
Often, computers are set to DHCP client (automatic
IP detection) mode. You may need to change the
IP address configuration on your computer before
you can connect. These settings are found in the
properties for your LAN network adaptor, and vary
by operating system.
The default IP address on the Picturall Quad Mark II
192.168.2.140 with a netmask of 255.255.255.0.
is
Therefore, you can assign your computer a static
IP address of 192.168.2.100 and a netmask of
255.255.255.0 and should be able to connect.
Analog Way and the Picturall Quad Mark II. By following these simple steps, you will
Go on our website to register your product(s)
Register
and be notified about new firmware versions:
your product
http://bit.ly/AW-Register
www.analogway.com
If the connection is not starting:
• Make sure the computer IP address is on the
same network and subnet as the Picturall Quad
Mark II.
• Make sure that no devices have the same IP
address (prevent IP conflicts)
• Make sure the network cable is CAT5 or higher.
• For more information, please see the user manual
or contact your local technical support.
Once successfully connected, the Web Configurator
is displayed automatically.
CAUTION!
Damage caused by improper
rack mounting will not be cove-
red under warranty.
