Analog way Picturall Twin Compact Quick Start Manual

QUICK START GUIDE

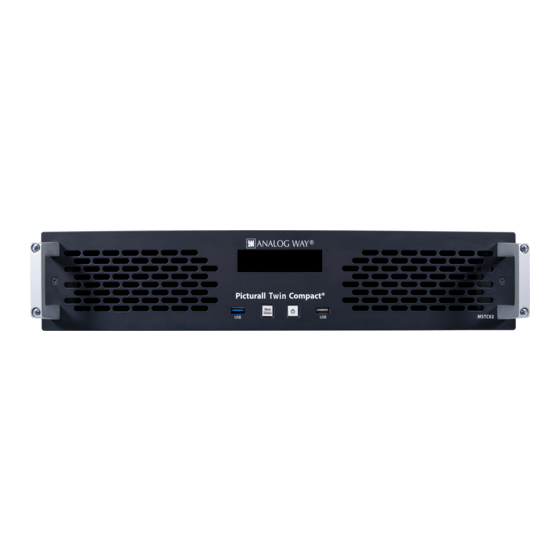

Picturall Twin Compact
Thank you for choosing
be able to set up and use your Powerful media server within minutes. Discover the Picturall Twin Compact
capabilities and intuitive interface while commanding top-notch presentations and unleash your creativity
for a new experience in show and event management.
WHAT'S IN THE BOX
• 1 x Picturall Twin Compact (MSTC02)
• 1 x Power supply cord
• 1 x Ethernet cross cable (for device control)
• 1 x USB memory stick containing software and technical documentation
• 1 x Rackmount kit
• 1 x User manual (PDF version)*
• 1 x Quick start guide*
* User manual and quick start guide are also available on
QUICK SETUP & OPERATION
Connecting with the Web Configurator
The Picturall Twin Compact uses standard ethernet
LAN networking. To access the Web Configurator,
connect a computer to the Picturall Twin Compact
using the Ethernet cable. Then on your computer,
open an internet browser and enter the IP address
of the Picturall Twin Compact (displayed on the
front panel screen).
The connection should start.
Often, computers are set to DHCP client (automatic
IP detection) mode. You may need to change the
IP address configuration on your computer before
you can connect. These settings are found in the
properties for your LAN network adaptor, and vary
by operating system.
The default IP address on the Picturall Twin
Compact is 192.168.2.140
255.255.255.0. Therefore, you can assign your
computer a static IP address of 192.168.2.100 and
a netmask of 255.255.255.0 and should be able to
connect.
- Ref. MSTC02
Analog Way and the Picturall Twin Compact. By following these simple steps, you will
with a netmask of
Go on our website to register your product(s)
and be notified about new firmware versions:
http://bit.ly/AW-Register
www.analogway.com
If the connection is not starting:
• Make sure the computer IP address is on the same
network and subnet as the Picturall Twin Compact.
• Make sure that no devices have the same IP
address (prevent IP conflicts)
• Make sure the network cable is CAT5 or higher.
• For more information, please see the user manual
or contact your local technical support.
Once successfully connected, the Web Configurator
is displayed automatically.
CAUTION!
Mounting using only the front
rack ears is sufficient for fixed
installations. Additional support,
such as the rear rack support or
slide rails, is required for mobile
applications, and recommended
for all.
