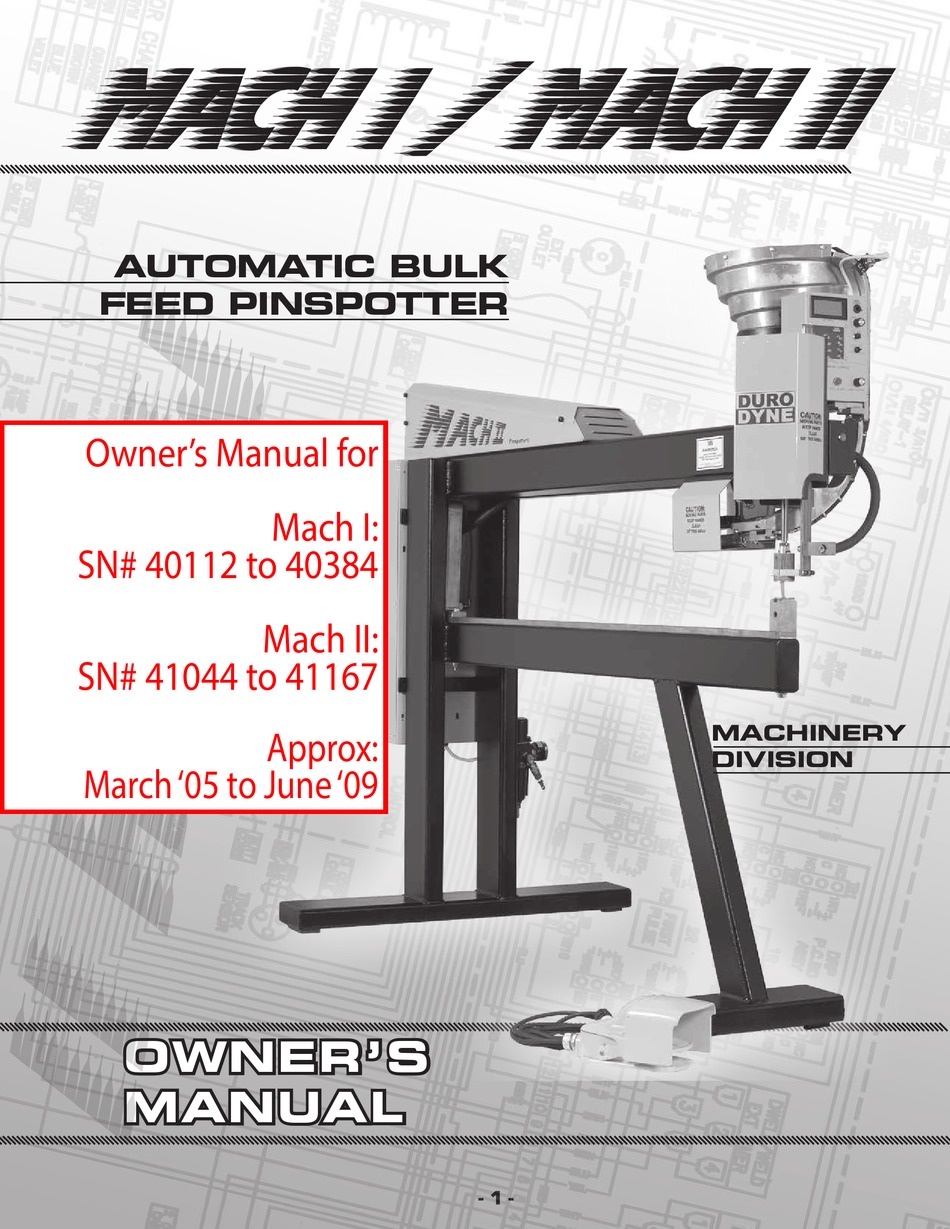

- Page 1 MACH I / MACH II MACH I / MACH II AUTOMATIC BULK FEED PINSPOTTER Owner’s Manual for Mach I: SN# 40112 to 40384 Mach II: SN# 41044 to 41167 MACHINERY Approx: DIVISION March ‘05 to June ‘09 OWNER’S MANUAL - 1 -...
- Page 2 The Mach I and Mach II series continue this concept and bring it to a new level of reliability, serviceability and efficiency. This Guide is designed to help you set up and operate your Mach I or Mach II at peak performance for years to come.
- Page 3 PARTS LOCATION 44001 Vibrator Sensor Cord 17340 Vibrator Bowl 44002 Vibrator Sensor 17368 2 inch Vibrator Bowl 44003 Vibrator Sensor Bracket 44008 Upper Feed Track 17339 Vibrator Base 17133 17341 Vibrator Coil 44016 Power Bar 44004 Vibrator Line Cord 44056 Upper Dwell Cylinder Bracket 17079 Vibrator Foot 17359 Bracket Insulator 17338 Vibrator Base Plate...
- Page 4 PARTS LOCATION 44023 Control Module 44043 Dwell Cover 44046 Component Module 44035 MACH I Power Pack 44044 Feed Cover 44036 MACH II Power Pack 44037 Power Pack Cover 17377 Air Regulator 17372 Footswitch FRAME ASSEMBLY - 4 -...
- Page 5 PARTS LOCATION 17327 Footswitch Receptacle 44019 Weld Cable Camlock 44040 Mach II Weld Transformer 44041 Line Cord 44042 Line Cord Strain Relief (Not Shown) 44036 MACH II POWER PACK - 5 -...
- Page 6 PARTS LOCATION 17327 Footswitch Receptacle 44039 Mach I Left Transformer 44038 Mach I Right Transformer 17209 Line Cord 17210 Strain Relief 44035 MACH I POWER PACK - 6 -...
- Page 7 PARTS LOCATION Located Inside Control Module 44023 Control Module 17333 Vibrator Speed Control 44024 Main On/Off Switch 44025 LCD Display 17256 Vibrator Socket 44026 Weld Poteniometer 44006 Vibrator Socket Guard 44027 Knob 44007 Vibrator Circuit Breaker 39110 Pin Feed Switch 44029 Relay Selector Switch 44030 Troubleshooting Display Board 44008 Upper Feed Track...
- Page 8 PARTS LOCATION 44008 Upper Feed Track Casting 44021 Head Mounting Plate 44056 Upper Dwell 17363 First Pulse Reed Switch Cylinder Bracket (not shown) 17359 Bracket Insulator 44020 Head Terminal Strip 17363 Dwell Reed Switch 17231 Dwell Cylinder 44015 Dwell Solenoid 44057 Bracket Insulator 17237 Lower Dwell 17356 Adjustable Muffler...
- Page 9 - 9 -...
- Page 10 Flip the head test switch to either the “WELD #1” or “WELD #2” position. NOTE: Your Mach I and Mach II Pinspotter has two redundant weld circuits. In the event that the solid state relay controlling the weld fails you may simply flip the switch to the other circuit and continue production.
- Page 11 OPERATION DISPLAY Your Mach I or Mach II Pinspotter is provided with an OPERATIONS DISPLAY to help identify the source of the problem should your pinspotter fail to perform properly. Watching these lights will give you a clear in- dication of the electrical flow of the various circuits and components during use.
- Page 12 - 12 -...
- Page 13 - 13 -...
- Page 14 MAINTENANCE To prolong the weld tip life and improve the weld quality, it is imperative that the weld tips always be kept clean. For best results, use a solvent to remove the adhesive from tips; a wire brush to remove any galvanizing deposits; and a fine emory cloth to smooth the tip surfaces.
- Page 15 SERVICING A SIMPLIFIED STEP-BY-STEP PROCEDURE Duro Dyne has called upon its many years of pinspotting experience in designing the Mach I and Mach II. Your unit has been rigorously factory tested and inspected to provide many years of dependable service.
- Page 16 TROUBLESHOOTING SECTION Your Mach I or Mach II Pinspotter is equipped with a Digital Function Display that will assist you in quickly locating the prob- able cause should your machine fail to operate. While the display can point you to a defective component, it is recommended that an analog type volt meter be used to verify the indication.
- Page 17 M A C H I N E D O E S N O T O P E R AT E SYMPTOM CORRECT POSSIBLE ACTION FUNCTION PROBLEM INDICATOR Po w e r i n d i c a t o r (A) Power (A) Check the incoming power (208-230VAC) at terminals #29 and #30 No power...
- Page 18 P I N F E E D P R O B L E M S SYMPTOM CORRECT POSSIBLE ACTION FUNCTION PROBLEM INDICATOR First pulse indicator First pulse The First pulse reed switch sends power to the coil of the first pulse relay. First pulse t u r n s o n w i t h reed...
- Page 19 SYMPTOM CORRECT POSSIBLE ACTION FUNCTION PROBLEM INDICATOR F e e d c o l l i d e s w i t h Dwell reed switch Dwell reed The Dwell reed switch initiates the Feed timer. If this switch is malfunctioning dwell.
- Page 20 D W E L L C Y L I N D E R P R O B L E M S SYMPTOM CORRECT POSSIBLE ACTION FUNCTION PROBLEM INDICATOR Dwell cylinder does All lights flash in Weld timer. Remove the push-on connector from terminal #4 of the Weld timer. If Dwell sequence cylinder retracts and weld turns off replace Weld timer.
- Page 21 P I N S D O N O T W E L D SYMPTOM CORRECT POSSIBLE ACTION FUNCTION PROBLEM INDICATOR Al l i n di c ators are Weld signal indica- (A) Short cycle (A) The Short cycle relay controls the voltage that turns on the Solid- functioning tor goes on and relay.
- Page 22 V I B R AT O R P R O B L E M S SYMPTOM CORRECT POSSIBLE ACTION FUNCTION PROBLEM INDICATOR V i b r a t o r d o e s n o t A) Vibrator (A) Check Vibrator Circuit Breaker (Located on the rear of the Control vibrate at all.
- Page 23 Fiber insulator 44009 Upper track side rails 17209 Mach I Line cord 44010 Lower track casting 17210 Mach I Line cord strain relief 44011 Lower track side rails 17222 Terminal strip - low voltage 44014 Feed solenoid 17231 Dwell cylinder...
- Page 24 ® MACHINERY DIVISION © 2019 Duro Dyne Corporation Printed in USA 6/2019 BI018401 - 24 -...
