Page 1

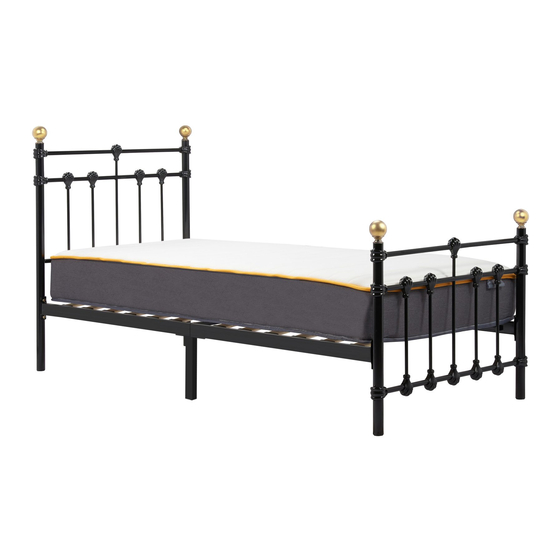

Vendor: S000053 ASSEMBLY INSTRUCTIONS ATLAS 3’ BED IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR ATLAS 3’ BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT jump on this bed frame. DO NOT use this bed frame if any parts are missing, damaged or worn.
Page 2
Vendor: S000053 Parts List Hardware List (found in box 1) Part Description Part Description Headend M6 x 16mm JCBC Screw Footend M6 x 45mm JCBC Screw Side Support M6 Nut Mid Support Single Slat Cap Slat Finial ** M4 Allen key supplied Step 1: Fix the side support (3) to the headend (1) and footend (2) using hardware part A, but do not fully tighten.
Page 3
• If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com...
