Assembly Instructions
Thank you for
purchasing a
Birlea product.
Are you happy with your purchase?
Yes:
That's great, we would love to hear more from you. Please leave us a review on our
social media channels or Trustpilot. Your feedback will be greatly appreciated.
No:
If for any reason there is something missing, indifferent or incorrect with your order,
please contact the retailer you purchased the item from. We will work with the retailer
to resolve your issue as quickly as possible.
For a chance to win a Love 2 Shop
voucher simply post a picture of your
new product on your preferred social
channels tagging Birlea Furniture and
using the hashtag #ShareYourStyle
and #Birlea. One winner will be
selected at random each month.
To view our full terms and conditions please visit www.birlea.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Birlea Arlo
Summary of Contents for Birlea Arlo
- Page 1 Birlea product. and #Birlea. One winner will be selected at random each month. To view our full terms and conditions please visit www.birlea.com Are you happy with your purchase? Yes: That’s great, we would love to hear more from you. Please leave us a review on our social media channels or Trustpilot.

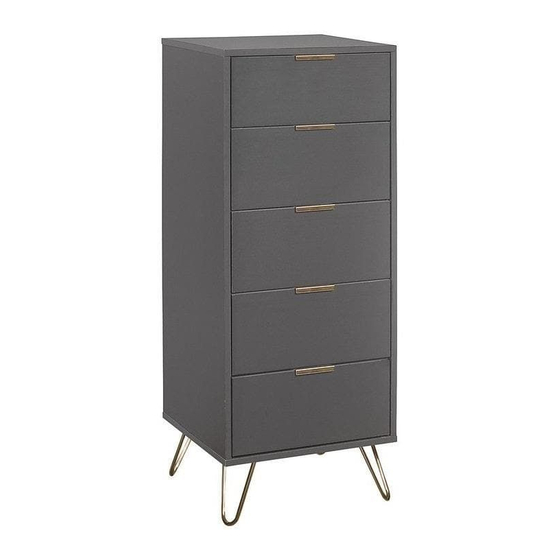

- Page 2 Arlo - 5 Drawer Narrow Chest Assembly Instructions Before you begin... 1. Please check you have received the correct product. 2. Unpack all boxes and lay out each component on the floor. 3. Check your product for any damage that may be immediately obvious. If damage is identified, please contact your retailer.
- Page 3 Parts Right Side Panel (x1) Top Panel (x1) Bottom Panel (x1) Left Side Panel (x1) Small Drawer Front (x1) Small Drawer Side (x2) Back Bone (x1) Back Panel (x1) Small Drawer Back (x1) Drawer Front (x4) Drawer Side (x8) Drawer Back (x4) Drawer Bottom (x5) Hardware Cam Lock (x8)
- Page 4 Hardware Cont... Metal Leg (x4) 14" Drawer Runner - Left/Right (x10) 14" Drawer Runner - Left/Right (x10) 8"x1" PP Tape (x2) Step 1 Unpack all components from the boxes and check you are not missing anything. Please check these against the list on page 3 and 4.
- Page 5 Step 2 Firsty, attach 4x Minifix Screw (A2) to 1x Top Panel (01). Please do not use any power tools for this assembly as it will void your guarantee. Step 3 Next, attach 5x 14" Drawer Runner - Left (K1) to 1x Left Side Panel (03) using 10x M3.5x16mm C.B Screw (F). Next attach 5x 14"...
- Page 6 Step 4 Attach 8x M8x30mm Wood Dowel (B) to either end of 1x Left Side Panel (03) and 1x Right Side Panel (04). Finally, attach 2x Cam Lock (A1) to 1x Left Side Panel (03), 2x Cam Lock (A1) to 1x Right Side Panel (04) and 4x Cam Lock (A1) to 1x Back Bone (05).
- Page 7 Step 6 Attach 1x Left Side Panel (03) and 1x Right Side Panel (04) to 1x Top Panel (01) using 4x Cam Lock (A1) and 4x Minifix Screw (A2) pre-attached in the previous step using a Screwdriver (Not Provided). Then cover 4x Minifix Screw (A2) using 4x Plastic Cap (A3).
- Page 8 Step 6 Attach 1x Back Panel (06) to the entire body using 18x 5/8 Nail (H) and a Hammer (Not Provided). Step 7 Attach 4x Metal Leg (J) to 1x Bottom Panel (02) using 16x M3.5x16mm C.B Screw (F) and Screwdriver (Not Provided). Step 8 Attach 1x Handle (I) to 1x Small Drawer Front (07) using 2x M3.5x16mm C.B Screw (E).
- Page 9 Step 9 Attach 4x Handle (I) to 4x Drawer Front (10) using 8x M3.5x16mm C.B Screw (E). Then, attach 8x Drawer Side (11) using 32x M4x38mm C.B Screw (G). Finally, attach 4x Bottom Panel (13) to the drawer body using 32x 5/8 Nail (H) and a Ham- mer (Not Provided).
- Page 10 Step 11 Attach 1x 14" Drawer Runner - Left (K2) to the base of the drawer body using 3x M3.5x16mm C.B Screw (F). Then attach 1x 14" Drawer Runner - Right (K2) to the base of the drawer body using 3x M3.5x16mm C.B Screw (F). Page 10 of 11...
- Page 11 Step 12 Assemble the drawer's along the drawer slides as shown below. Step 13 (Optional) To secure the product to the wall, attach the Wall Plug (Not Provided) to a pre-drilled hole in the wall. Then secure 2x 8"x1" PP Tape ( ) to the wall using 2x M3.5x16mm C.B Screw (Not Provided) and Screwdriver (Not Provided) into the pre-drilled hole.
