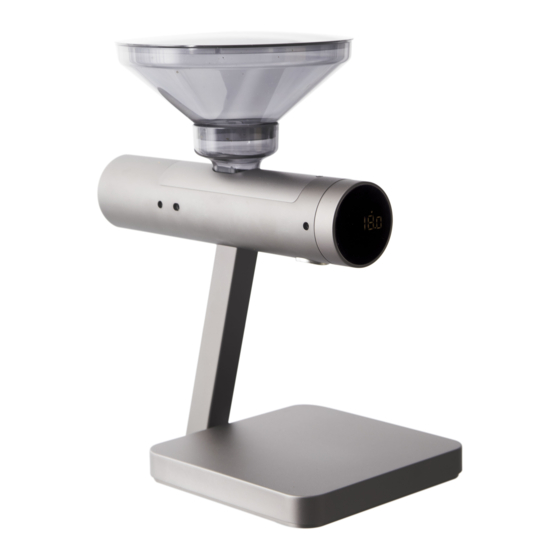

acaia Orion User Manual

Hide thumbs Also See for Orion:
Table of Contents

Advertisement

Quick Links

Download this manual

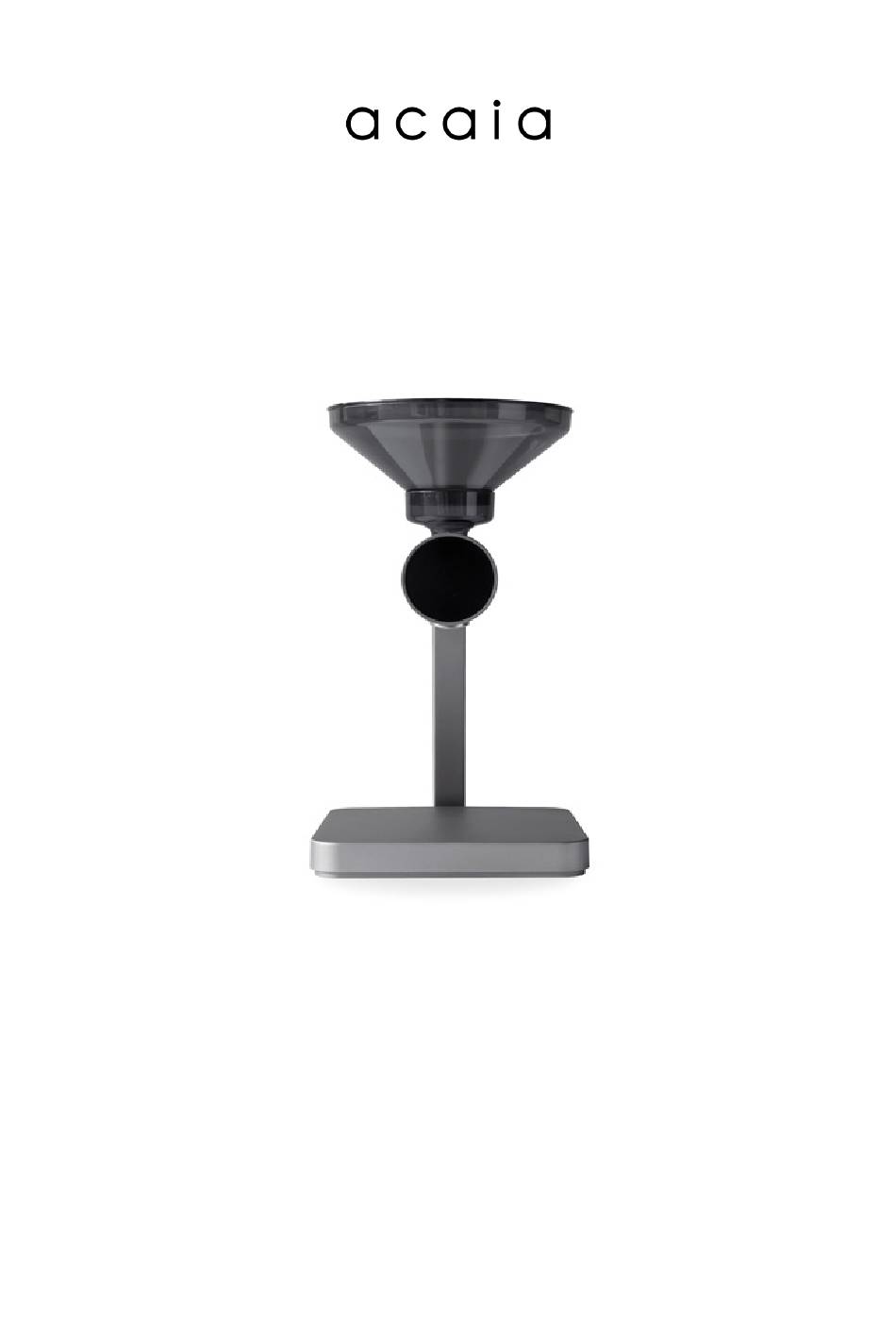

Acaia Orion
User Manual
V 1.13.34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orion and is the answer not in the manual?

Questions and answers

Related Manuals for acaia Orion

Summary of Contents for acaia Orion

  • Page 1 Acaia Orion User Manual V 1.13.34...

  • Page 2: Table Of Contents

    Switch Mode Empty Hopper Mode Introduction Mode 1 - Manual Dosing Mode Mode 2 - Auto Dosing Mode Mode 3 - Weighing Mode Settings Accessing the Orion’s Settings Diagram of the Settings Menu Appendix Buttons LED indicators Error codes Other...

  • Page 3: Introduction

    The Orion Bean Doser™ is designed for dosing green beans or roasted coffee beans based on weight. Fast Weight-Based On-Demand Dosing The Orion Bean Doser™ can dose 225 grams (1/2 lbs) in 12 seconds and 20 grams in 3 seconds within the error margin of 2-3 beans. Full Automatic Mode Designed with a fully automatic mode for continuous dosing of multiple containers without pressing any buttons.

  • Page 4: Getting Started

    Getting Started Initial Setup 1. Prior to using your Orion for the first time you should rinse and clean the bean hopper in warm soapy water. Dry immediately after cleaning. 2. Attach the bean hopper on top. 3. Place a container on the weighing platform to avoid accidental dispensing.

  • Page 5: Product Care Information

    Rotate Calibration 1. While the Orion is in Weighing Mode and the weighing unit is in grams, rapidly press the Dose button multiple times until the LED display shows [ CAL ] and then [ 500 ]. 2. Place a 500-gram calibration weight on the platform and wait for the Doser to execute the calibration procedure.

  • Page 6: Operations

    Short press Power / Dose There are 3 presets in the Orion for storing desired weights. For example, you can set preset 1 at 18 g for dosing, preset 2 at 20 g, and preset 3 at 35 g. You may adjust the preset value with the controls above.

  • Page 7: Mode Introduction

    • Manual dosing mode can dose on demand with a selected preset. • A [ NOISE ] message will show when a container is removed from the Orion or when the plat- form is touched during dosing. Please dose again.

  • Page 8: Mode 2 - Auto Dosing Mode

    • There will be an ‘A’ indicator on the top left corner of the display when in Auto mode. • A [ NO ISE ] message will show when a container is removed from the Orion or the platform is touched during dosing.

  • Page 9: Mode 3 - Weighing Mode

    Mode 3 - Weighing Mode The weighing mode is the Orion’s smart scale mode. It will function like an industrial weighing scale with a 3000-gram capacity. To switch to weighing mode, rotate the Dial until a ‘W’ indicator appears on the top left corner of the display.

  • Page 10: Settings

    Settings Accessing the Orion’s Settings 1. With Orion powered on, long press Power to enter the Settings mode. The display will show [ SEt ]. 2. Press Dose to enter the Settings Menu. It will show the first setting for [ SPEEd ].
  • Page 11 Zero Tracking Setting [ trAcE ] Zero Tracking is a function to help compensate the weight readout fluctuations at zero point to improve the usability of the scale. The Acaia Orion is allowed to compensate fluctuations by up to 2d according to industrial weighing guidelines.

  • Page 12: Appendix

    You may want to add some beans with the pulse function or remove some. Red Light - System message indicator When the red light is displayed, there is a system error with the Orion. Restart the Orion. If the prob- lem persists, please contact us at support@acaia.co.

  • Page 13: Error Codes

    Password error (the default password is 0000). Other Display Code Description The Orion is in Update mode. Note: If you want to exit update mode, the Orion will automatically turn off UPdAtE and exit update mode after 1 minute and 30 seconds of no use.

  • Page 14: Specifications

    Up to 48 hours Display Material Aluminum, Acrylic Connectivity Bluetooth 4.0 Warranty 1 Year Acaia Orion Bean Doser (Space Gray / Matte White) x 1 Hopper with capacity for 350~400 g of beans x 1 Inside the Package Power Adapter x 1...
  • Page 15 This User Manual is protected by copyright. All rights reserved. No part of the manual may be reproduced, processed, duplicated or published in any form by photocopying, microfilming, reprinting or any other meth- od, in particular electronic means, without the written agreement of Acaia. © Acaia, California, 2020.
