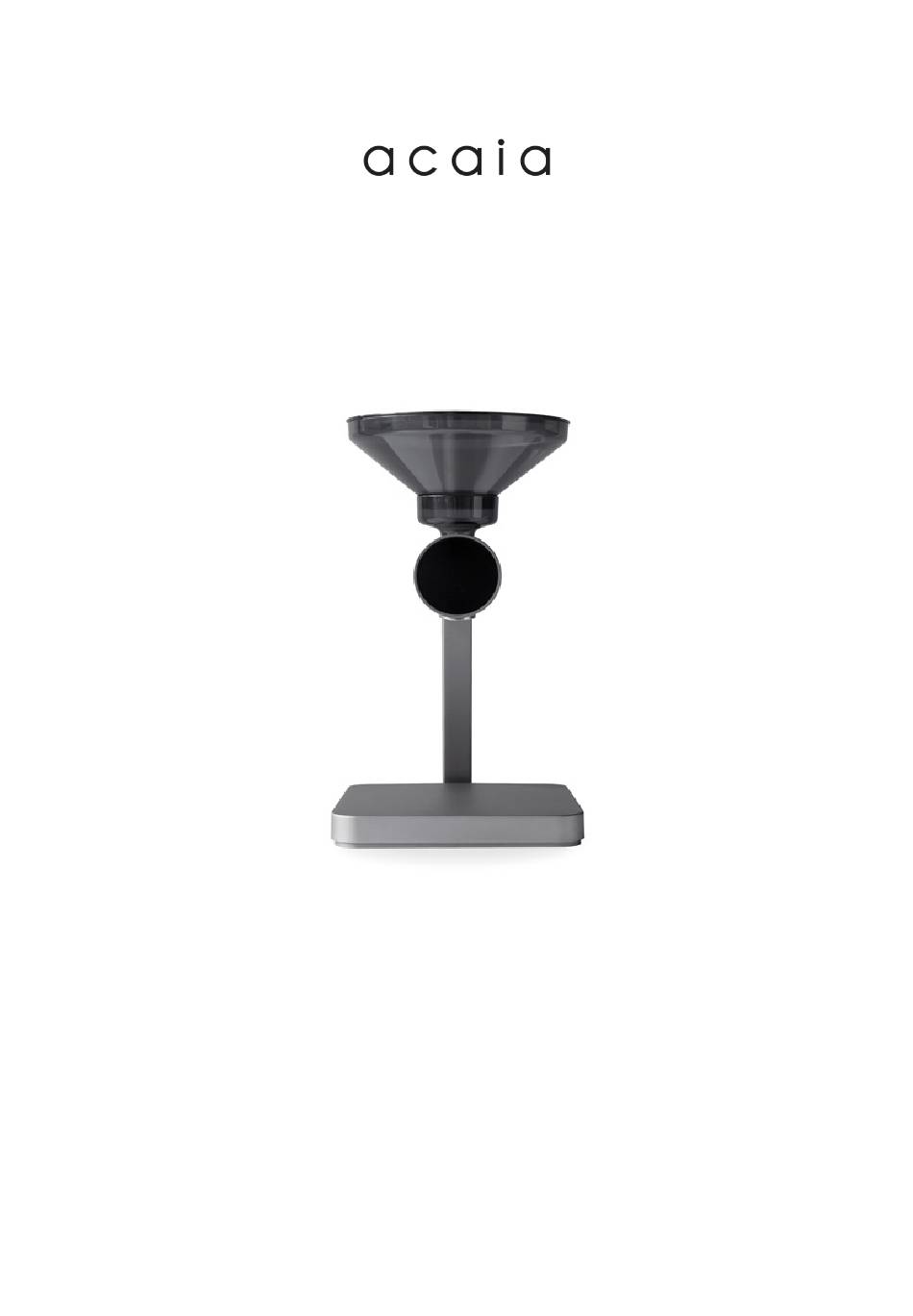

- Page 1 Acaia Orion User Manual AO101 / AO102 1.13.37...
-
Page 2: Table Of Contents
Contents Introduction Features Interface Overview Getting Started Initial Setup Getting Started General Operation Product Care Information Battery Charge Calibration Care and Cleaning Operations Basic Operations Set Preset Weight Switch Mode Empty Hopper Mode Introduction Mode 1 - Manual Dosing Mode Mode 2 - Auto Dosing Mode Mode 3 - Weighing Mode Settings... -
Page 3: Introduction
Introduction Features The Orion Bean Doser™ is designed for dosing green beans or roasted coffee beans based on weight. Fast Weight-Based On-Demand Dosing The Orion Bean Doser™ can dose 225 grams (1/2 lbs) in 12 seconds and 20 grams in 3 seconds within the error margin of 2-3 beans. -
Page 4: Getting Started
Getting Started Initial Setup 1. Prior to using your Orion for the first time you should rinse and clean the bean hopper in warm soapy water. Dry immediately after cleaning. 2. Attach the bean hopper on top. 3. Place a container on the weighing platform to avoid accidental dispensing. 4. -
Page 5: Product Care Information
* Note: Calibration weights of 100 g, 1000 g, 1500 g, 2000 g, and 3000 g can also be used. For highest accuracy use Acaia calibration weights or F1 or F2 Class calibration weights. Inexpensive lower-class calibration weights have a higher deviation from a true accurate weight. -
Page 6: Operations
Operations Basic Operations Action Operation Turn On Scale Press Power Double press Power Turn Off Scale Toggle Presets Rotate Dial Set Preset Weight Press Power, rotate Dial, then press Power / Dose Switch Mode Press and hold Power, rotate Dial, then press Power / Dose Press Dose Start Dosing Reset Mode... -
Page 7: Mode Introduction
Mode Introduction Mode 1 - Manual Dosing Mode This is the default mode for dosing. Action Operation Press Dose Start Dosing Stop Dosing Press Dose Pulse Beans Press Dose Reset Mode Press Power 1. Select a preset by rotating the Dial. Adjust the preset value by pressing Power and rotating the Dial. -
Page 8: Mode 2 - Auto Dosing Mode
Mode 2 - Auto Dosing Mode Auto dosing mode can dose automatically whenever a container is placed on the platform. There will be an ‘A’ indicator on the top left corner of the display when in Auto mode. At the end of auto dosing, you may press the Dose button to ‘pulse’ a few more coffee beans if required. -
Page 9: Mode 3 - Weighing Mode
Mode 3 - Weighing Mode The weighing mode is the Orion’s smart scale mode. It will function like an industrial weighing scale with a 3000-gram capacity. To switch to weighing mode, rotate the Dial until a ‘W’ indicator appears on the top left corner of the display. Action Operation Reset Mode/Zero... -
Page 10: Settings
Settings Accessing the Orion’s Settings 1. With Orion powered on, press and hold Power to enter the Settings mode. The display will show [ SEt ]. 2. Press Dose to enter the Settings Menu. It will show the first setting for [ SPEEd ]. Action Operation Press and hold Power... - Page 11 Zero Tracking Setting [ trAcE ] Zero Tracking is a function to help compensate the weight readout fluctuations at zero point to improve the usability of the scale. The Acaia Orion is allowed to compensate fluctuations by up to 2d according to industrial weighing guidelines.
-
Page 12: Appendix
You may want to add some beans with the pulse function or remove some. Red Light - System message indicator When the red light is displayed, there is a system error with the Orion. Restart the Orion. If the prob- lem persists, please contact us at support@acaia.co. -
Page 13: Error Codes
Error Codes Error Code Description Error 100 Code error Error 101 EEPROM error AD read error Error 102 Unable to make zero point because the initial weight exceeds the limit (250% Error 303 of capacity). Over load: The weight is over the maximum capacity. Under load: The weight is under the minimum capacity. -
Page 14: Specifications
Li-Ion 18650 7.4 V 2600 mAh Battery Battery Life Up to 48 hours Display Aluminum, Acrylic Material Bluetooth 4.0 Connectivity Acaia Orion Bean Doser × 1 Hopper with capacityor 350~400 g of beans × 1 Inside the Package Power Adapter × 1... - Page 15 This User Manual is protected by copyright. All rights reserved. No part of the manual may be reproduced, processed, duplicated or published in any form by photocopying, microfilming, reprinting or any other method, in particular electronic means, without the written agreement of Acaia. © Acaia, California, 2022.
