Acaia Orbit
User Manual
AOT001
FW 1.0.000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Orbit and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for acaia Orbit

Summary of Contents for acaia Orbit

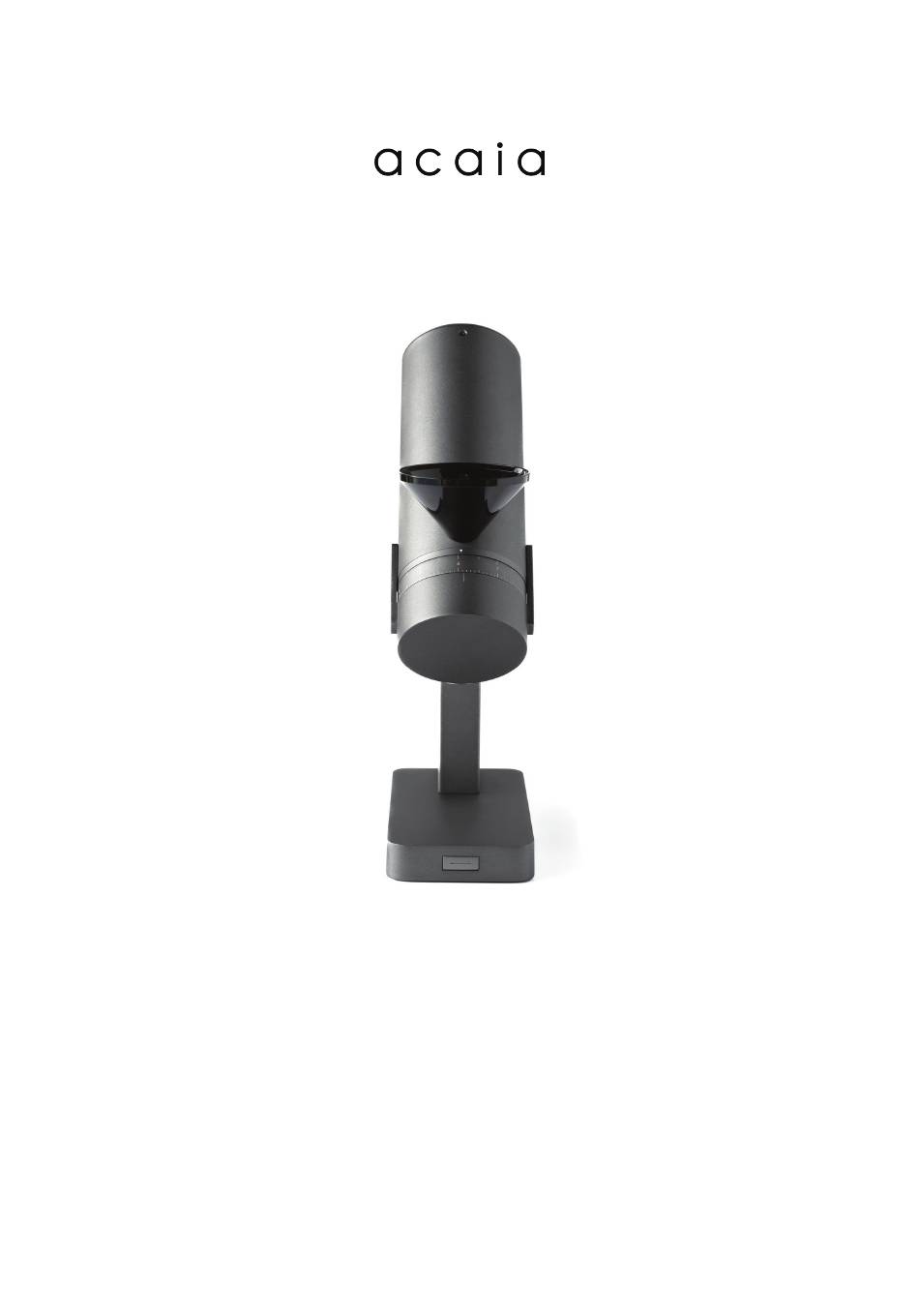

  • Page 1 Acaia Orbit User Manual AOT001 FW 1.0.000...

  • Page 2: Table Of Contents

    Knocker Burr Zero Point Burr Touch Point Stepless Adjustment Auto-stop Auto-purge Stall Prevention Advanced Control with the Orbit App App Overview When Connected to the Orbit When Connected with Orbit and Lunar RPM Profile Overview Time-based Grinding Manual Grinding Settings Menu...

  • Page 3: Introduction

    Introduction Welcome to your new Acaia Orbit. The Orbit is a 64 mm flat burr grinder built with the latest Acaia technology from the ground up. Designed for home and light commercial spaces, the Orbit is convenient and versatile. It will optimize your workflow and offer a coffee grinding experience like never before.

  • Page 4: Safety Information

    Never operate the Orbit without the Orbit Spout properly installed. Never operate the Orbit without the Hopper properly installed. The Orbit is intended to grind roasted whole coffee beans only. For EU: This appliance can be used by children aged from 8 years and above, and...

  • Page 5: Parts Identification

    Parts Identification...

  • Page 6: In The Box

    Grinder (Optional) 58 mm Portafilter Dosing Cup Hex Wrench Magnetic Pad Dosing Cup Lunar Magnetic Strips Lunar Magnetic Strips Thumb Screws Application Tool (Optional) *Orbit’s Spout alternative screws for easy removal. Burr Carrier Screws *Alternative M4 screws for different burrs.

  • Page 7: Setting Up The Orbit

    Orbit. Note: • Acaia tests every unit with coffee beans during the quality control process. Some ground coffee may remain in the grinder or the packaging. • Please avoid setting the dial beyond the burr touching point.

  • Page 8: Orbit Overview

    Pulse Magenta Manual Mode Purge Warning / Firmware update Toggle preset (2 seconds) Green Reset to factory default Standby (10 seconds) Yellow Purge / Cleaning in progress *The Orbit will auto standby when not in use. Orange Connecting in progress...

  • Page 9: General Information

    Click the Orbit button to easily start / stop a grinding session. Adjust Grinding Speed Press and hold the Orbit button to switch between 3 default RPM profiles. The 3 presets are each represented by a different color light. You can access the RPM profiling feature through the Orbit app.

  • Page 10: Burr Zero Point

    Auto-stop The Orbit will automatically stop grinding once the bean chamber is empty after 3 seconds. If the Orbit is turned on without any beans in it, the grinder will automatically stop after 15 seconds. You can adjust the auto-stop setting through the Orbit App for continuous grinding. Once the auto-stop setting is turned off, the grinder will continue grinding until it is manually stopped by the Orbit button.

  • Page 11: Auto-Purge

    When grinding, if the Orbit burrs stall and stop grinding, it will automatically stop the motor. The button will flash red to notify the user that a stall has occurred, and the Orbit will then restart the motor to try to grind again.

  • Page 12: Advanced Control With The Orbit App

    Advanced Control with the Orbit App The companion Orbit App gives you advanced control over the Orbit. You can fully customize your Orbit by adjusting button actions, RPM profiles, and other settings. App Overview Orbit Connection RPM Profile Settings Icon / Lunar...

  • Page 13: When Connected To The Orbit

    When Connected to the Orbit Real Time RPM* Grinding time **Only viewable when connected to Orbit. When Connected with Orbit and Lunar Real Time RPM Grinding time Real Time Weight* *Only viewable when Lunar is connected to Orbit. Reset* *Only usable when Lunar is...

  • Page 14: Rpm Profile Overview

    600-1500 RPM, and also include a timer to set how long each stage should run. RPM profiling is only available while the Orbit is connected to the Orbit app. The modified settings from the app will be saved to the Orbit, and first stage settings will be saved into the App preset.

  • Page 15: Time-Based Grinding

    Time-based Grinding The Orbit has a time-based grinding function that is only accessible through the Orbit App. You can set the desired grinding time length for each grinding session. The grinder will automatically stop when the target time is reached.

  • Page 16: Manual Grinding

    Orbit’s manual grinding mode enables you to control the RPM freely in real time. During a single grinding session, you can change the speed of the grinder by simply dragging the RPM slider in the Orbit App. You can see the real time RPM graphed in the chart on the App main page.

  • Page 17: Settings Menu

    Settings Menu Tap the settings icon on the upper right corner of the Orbit App main page to enter Orbit App settings. The overall settings are listed below: Orbit Button Actions You can also design your own workflow by customizing the Orbit button actions through the App.
  • Page 18 Clear Paired Acaia Scale Tap [ Clear ] to clear paired Acaia Scale. Each Orbit can only pair with one Lunar at the same time. If you want to pair with another Lunar, please reset the pairing here from the App, or reset the Orbit to factory default.

  • Page 19: Grind-By-Weight With The Acaia Lunar

    See the instructions in the next section on how to pair your Lunar to Orbit and how the Lunar functions when connected to the grinder. Auto-Grinding for Hands-free Operation The Orbit bears an auto-start function that supports an auto-grinding workflow.

  • Page 20: Grind-By-Weight Workflow With The Acaia Lunar

    Grind-by-Weight Workflow with the Acaia Lunar Follow the steps below to set up the grind-by-weight function with the Acaia Lunar. Apply Lunar Magnetic Strips Remove the Lunar Fold the flaps at the Align and insert the magnetic strips top and bottom of the...
  • Page 21 Orbit. Note: One Orbit can only pair with one Lunar at the same time. If you want to pair with another Lunar, please reset the pairing in the App, or reset the Orbit to factory default.
  • Page 22 Weight-Based Grinding...
  • Page 23 To begin the grinding When the target weight Make sure to remove the session, click the Orbit is reached, the Orbit will spout extender from the button. The Orbit will start automatically stop the Orbit spout and place the grinding until the target motor.

  • Page 24: Product Care Information

    Product Care Information Care and Cleaning Do not immerse the Orbit in water. Use a soft cloth with warm water only to clean the product. Do not use detergent or other chemicals for cleaning as this can damage the product.

  • Page 25: Appendix

    Reset to Default To reset the Orbit to factory default, press and hold the Orbit button in the front while the Orbit is in standby mode. Hold for about 10 seconds and release the Orbit button when the button turns Green .

  • Page 26: Specifications

    Aluminum, PC, Stainless Steel Material 0 - 40c Operating Ambient Temperature 600-1500 Adjustable RPM Profile RPM Profile Recommended duty cycle for Orbit is 60s running Duty Cycle time with a rest time of 30s Bluetooth 5.0 Connectivity 1 Year Warranty...
  • Page 27 This user manual is protected by copyright. All rights reserved. No part of this manual may be reproduced, processed, duplicated or published in any form by photocopying, microfilming, reprinting or any other method, in particular electronic means, without the written consent of Acaia. © Acaia, California, 2022.
