Functional Details
Board components
USB-1808X-OEM has the following components, as shown in Figure 2:
Header connectors (2)
Pull-up/down jumper
LED indicators (2)
USB connector
USB connector
The USB connector provides +5 V power and communication. No external power supply is required.

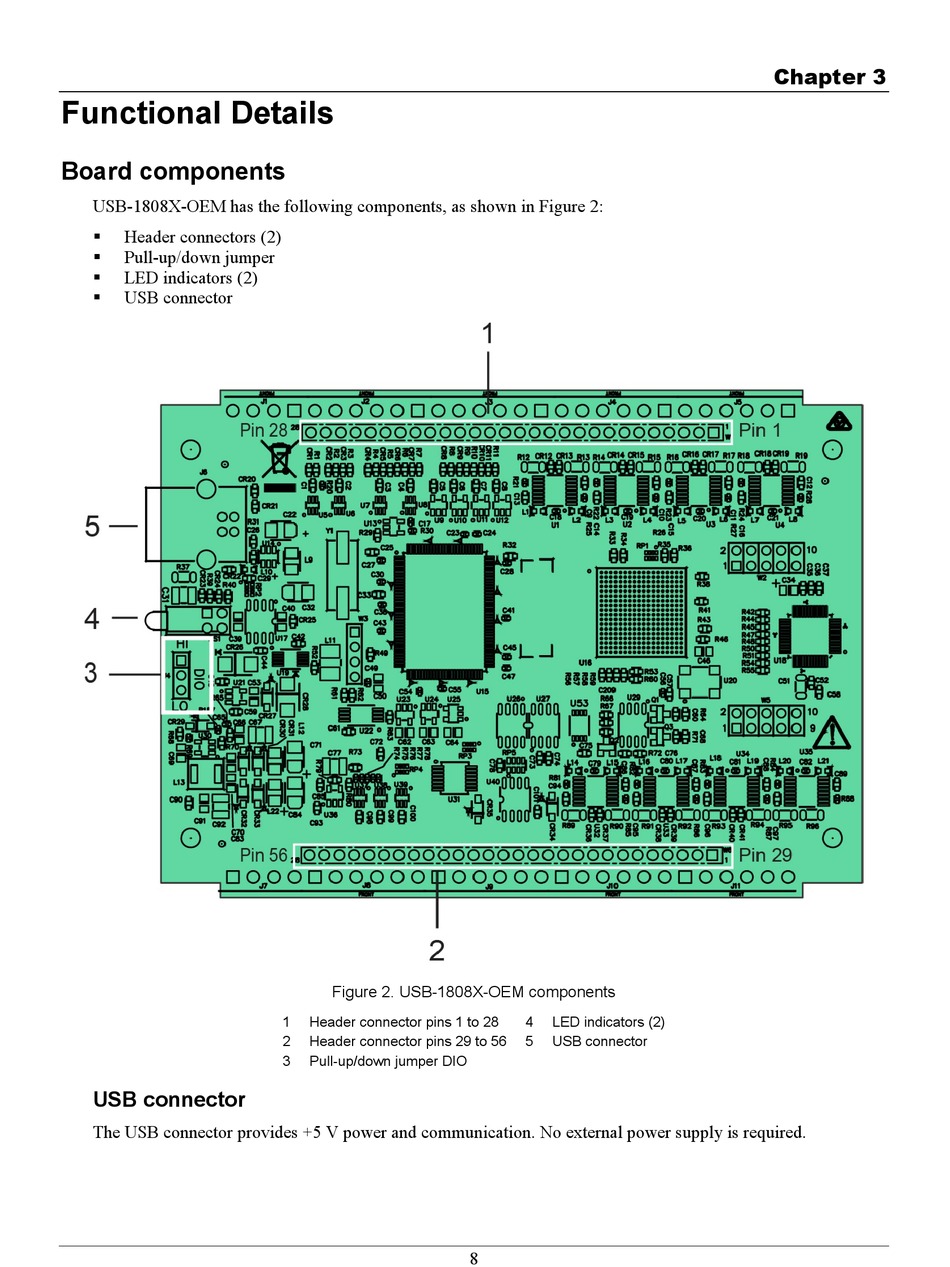

Figure 2. USB-1808X-OEM components
1
Header connector pins 1 to 28
2
Header connector pins 29 to 56
3
Pull-up/down jumper DIO
4
LED indicators (2)
5
USB connector
