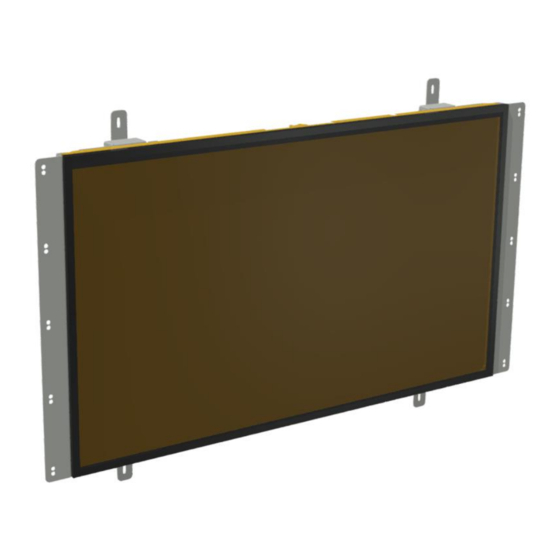

- Page 1 32" LCD Monitor Model: 150TFT[X]3210[XX] Manual Version 1.1 / February 2017 Antonie van Leeuwenhoekstraat 9 3261 LT Oud Beijerland The Netherlands Phone : +31(0)186-643333 Fax : +31(0)186-643322 Email : info@suzohapp.nl Web : eu.suzohapp.com...
-
Page 2: Table Of Contents
Index Introduction ............................. 3 Safety ............................... 3 Model descriptions .......................... 3 Monitor connection ......................... 3 Monitor specifications ........................4 Operation ............................5 OSD MENU ............................6 Mounting instructions ........................8 Accessories ............................9 Page 2 of 9... -
Page 3: Introduction
1. Introduction Congratulations with the purchase of your monitor. This LCD monitor is a color active matrix thin-film- transistor (TFT) liquid crystal (LCD) to provide superior display performance. 2. Safety This monitor is only suitable for use in an interior environment where it’s not sealed and not subject to dust, dirt, condensation (Pollution Degree 2) (IP20). -
Page 4: Monitor Specifications
5. Monitor specifications Panel Manufacturer Part No. T320HVN06.0 Electrical Characteristic Item Unit Typical Power Supply Input Voltage 22.8 25.2 Backlight Power Consumption Watt 34.9 39.3 Absolute Maximum Ratings Item Unit Typical Remarks Operating Temperature °c Storage Temperature °c Operation Humidity Storage Humidity Signal Input (Analog RGB, TMDS(DVI)) Item... -
Page 5: Operation
6. Operation Color LED: This LED shows the state of controller. Green is the “normal state”. Red is the “Off mode”. (Can’t find Sync. signals) Amber is the “DPMS mode” (Display Power Management Signaling). PC Settings: The PC needs to be set to an appropriate graphics mode that has the same resolution with the LCD panel to have clear screen image. -
Page 6: Osd Menu
7. OSD MENU The chosen OSD settings will be stored in memory. The OSD menu can be cleared from the screen by pressing the MENU button otherwise it will be automatically cleared after a few seconds of non‐use. OSD Main Menu [PICTURE] [COLOR] [OSD]... - Page 7 OSD GUI Control Table MAIN SUB MENU CONTROL MENU Brightness 50(0~100) Contrast 50(0~100) Sharpness 2( 0 ~ 4) H Position 50(0~100) Picture V Position 50(0~100) PC ONLY Clock 50(0~100) Phase 30(0~100) Color Status Management User(User, Warm, Normal, Cool) 50(0~100) Green 50(0~100) Color PC ONLY...
-
Page 8: Mounting Instructions
8. Mounting instructions Monitor Mounting This monitor can be mounted using the mounting brackets. Page 8 of 9... -
Page 9: Accessories
9. Accessories Part number Description 22-0012-4 Power cable Euro lead 1.80M 149-0112-11 VGA cable 1.80m 149-0121 DVI-D Cable 2 mtr 18+1 Page 9 of 9...
