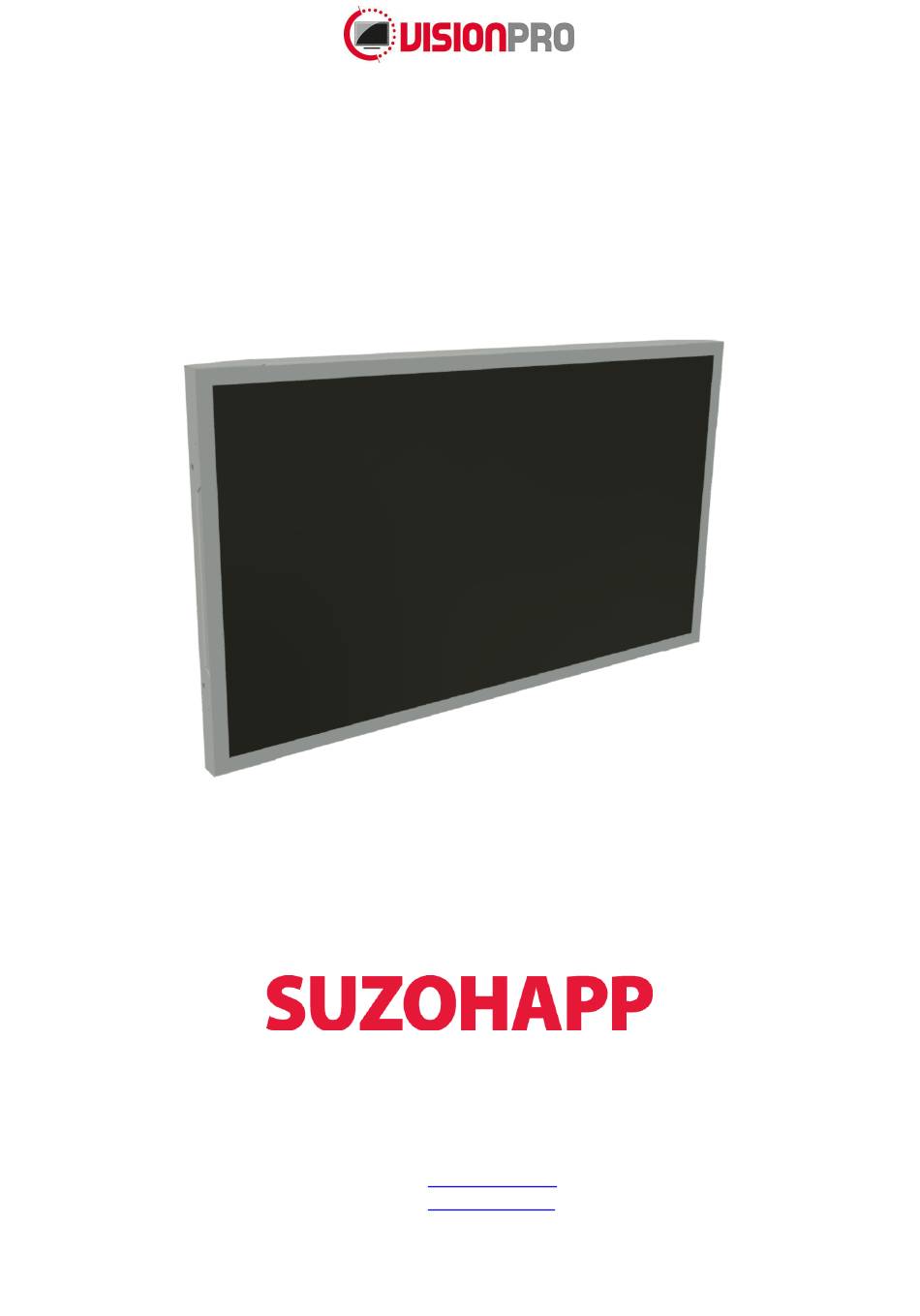

- Page 1 27" LCD Monitor Model: 150TFT[X]2704[XX] Manual Version 1.1 / January 2017 Antonie van Leeuwenhoekstraat 9 3261 LT Oud Beijerland The Netherlands Phone : +31(0)186-643333 Fax : +31(0)186-643322 Email : info@suzohapp.nl Web : eu.suzohapp.com...
-
Page 2: Table Of Contents
Index Introduction ............................. 3 Safety ............................... 3 Model descriptions .......................... 3 Monitor connection ......................... 3 Monitor specifications ........................4 Operation ............................5 OSD MENU ............................6 Mounting instructions ........................8 Accessories ............................9 Page 2 of 9... -
Page 3: Introduction
1. Introduction Congratulations with the purchase of your monitor. This LCD monitor is a color active matrix thin-film- transistor (TFT) liquid crystal (LCD) to provide superior display performance. 2. Safety This monitor is only suitable for use in an interior environment where it’s not sealed and not subject to dust, dirt, condensation (Pollution Degree 2) (IP20). -
Page 4: Monitor Specifications
5. Monitor specifications Panel Manufacturer Part No. M270HVN02-0 Absolute Maximum Ratings Item Unit Typical Remarks Rated Ambient Temperature °c Storage Temperature °c Relative Humidity Altitude 2000 Not sealed, not subject to Pollution Degree dust, dirt, condensation Input characteristic Description Signal Unit Typical Remarks... -
Page 5: Operation
6. Operation Color LED: This LED shows the state of the controller. Green is the “normal state”. Red is the “Off mode”. (Can’t find Sync. signals) Amber is the “DPMS mode” (Display Power Management Signaling). PC Settings: The PC needs to be set to an appropriate graphics mode that has the same resolution as the LCD panel to have clear screen image. -
Page 6: Osd Menu
7. OSD MENU The chosen OSD settings will be stored in memory. The OSD menu can be cleared from the screen by pressing the MENU button otherwise it will be automatically cleared after a few seconds of non‐use. OSD Main Menu [PICTURE] [COLOR] [OSD]... - Page 7 OSD GUI Control Table MAIN SUB MENU CONTROL MENU Brightness 50(0~100) Contrast 50(0~100) Sharpness 2( 0 ~ 4) H Position 50(0~100) Picture V Position 50(0~100) PC ONLY Clock 50(0~100) Phase 30(0~100) Color Status Management User(User, Warm, Normal, Cool) 50(0~100) Green 50(0~100) Color PC ONLY...
-
Page 8: Mounting Instructions
8. Mounting instructions This monitor can be mounted with four M4 mount holes, two on the left and two on the right side. Place the monitor into the machine. Place the M4 screws on both sides of the monitor. Tighten the nuts until the monitor is firmly secured to the machine. -
Page 9: Accessories
9. Accessories Part number Description Power supply input 100/240V output 150-0072 12V 5A 22-0012-4 Power cable Euro lead 1.80M 149-0112-11 VGA cable 1.80m 149-0121 DVI-D Cable 2 mtr 18+1 Page 9 of 9...
