Summary of Contents for Suzohapp 103-02 Series

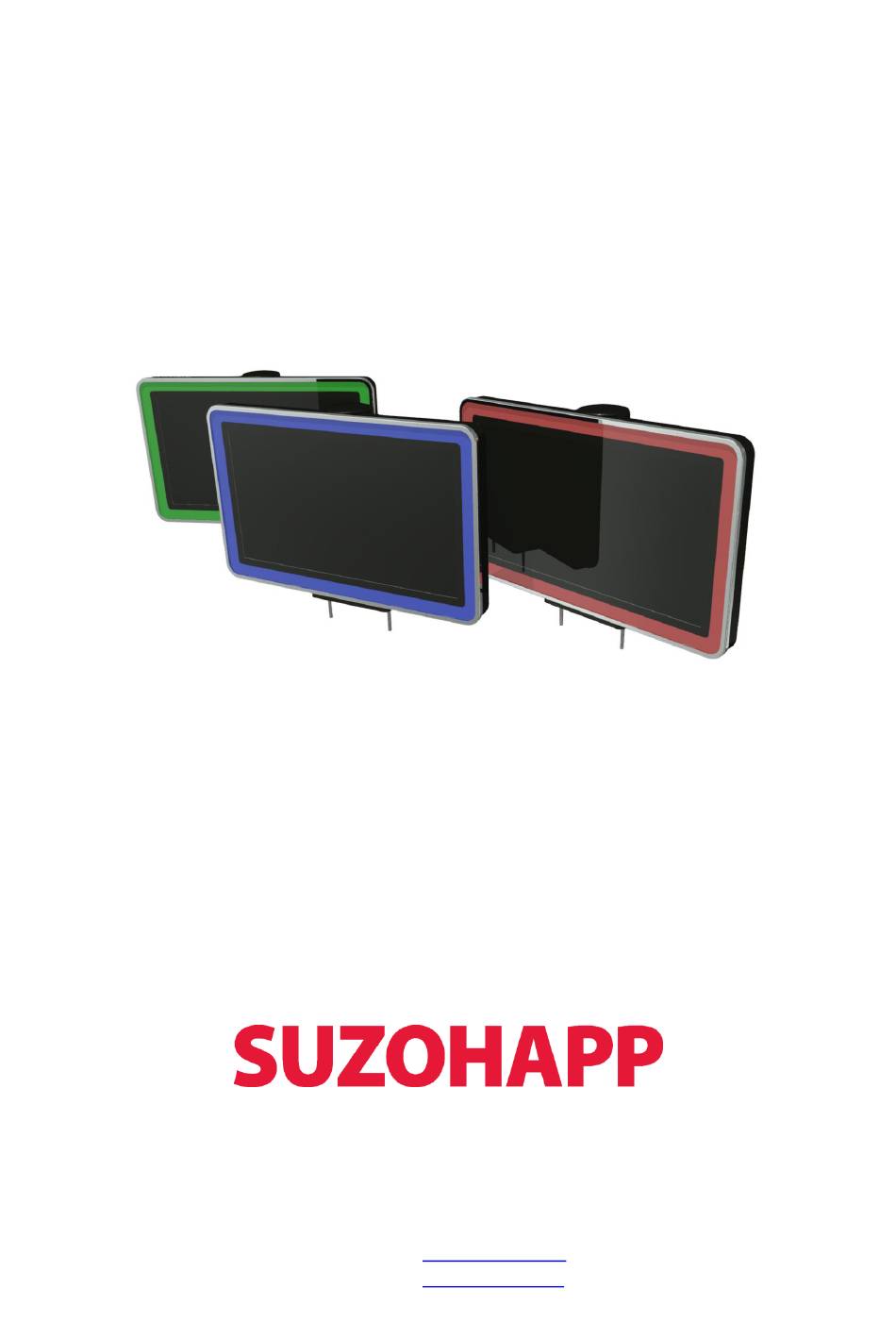

- Page 1 19.5" Video Topper Model: 103-02XXXXXXXX Manual Version 2.0 / May 2016 Antonie van Leeuwenhoekstraat 9 3261 LT Oud Beijerland The Netherlands Phone : +31(0)186-643333 Fax : +31(0)186-643322 Email : info@suzohapp.nl Web : eu.suzohapp.com...
-
Page 2: Table Of Contents
SuzoHapp Video Topper 103-02XXXXXXXX Manual Index 1. Introduction ............................. 3 2. Safety ..............................3 3. Model configurations ........................4 4. Connection ............................5 5. RGB LED Operation .......................... 6 6. Monitor specifications ........................7 7. Monitor Operation ........................... 8 8. OSD Menu ............................9 9. -
Page 3: Introduction
Manual 1. Introduction Congratulations with the purchase of your SuzoHapp Video Topper. Based on your configuration, the Video Topper is included with a LCD monitor or a light box. Further configurations specifies the colour of the bezel and whether a tower light is included or not. See ‘Chapter 3 – Model configurations’ for all available options. -
Page 4: Model Configurations
SuzoHapp Video Topper 103-02XXXXXXXX Manual 3. Model configurations 103-XXXXXXXXXX Standard 103 Product group LCD toppers Model video topper Topper with LCD Topper without LCD ( light box ) Tower light No Tower light Classic tower light chrome 2 lamp Classic tower light chrome 3 lamp... -
Page 5: Connection
SuzoHapp Video Topper 103-02XXXXXXXX Manual 4. Connections The Video Topper is complete with several cables to connect into your installation. The configuration of your Video Topper may affect the cables used. Average length of wires outside the Video Topper: 1500 mm... -
Page 6: Rgb Led Operation
SuzoHapp Video Topper 103-02XXXXXXXX Manual Video When an LCD monitor is included in your Video Topper, connect it with the video signal cable (VGA, DVI, HDMI or DisplayPort). HDMI or DisplayPort is converted to DVI inside the Video Topper. RGB LED strip If you have chosen to supply your own RGB LED controller, connect the LED strip using a receptacle which fits the Molex 39-01-2041 Mini-Fit Jr plug. -
Page 7: Monitor Specifications
SuzoHapp Video Topper 103-02XXXXXXXX Manual 6. Monitor specifications Panel Manufacturer Part No. LM195WD2-SLA1 Absolute Maximum Ratings Item Unit Typical Remarks Operating Temperature °c Storage Temperature °c Operation Humidity Storage Humidity Input characteristics Description Signal Unit Typical Remarks Input 11.4 12,6... -
Page 8: Monitor Operation
SuzoHapp Video Topper 103-02XXXXXXXX Manual 7. Monitor Operation Color LED: This LED shows the state of the controller. Green is the “normal state”. Red is the “Off mode”. (Can’t find Sync. signals) Amber is the “DPMS mode” (Display Power Management Signaling). -
Page 9: Osd Menu
SuzoHapp Video Topper 103-02XXXXXXXX Manual 8. OSD Menu [PICTURE] [COLOR] [SCREEN] [OSD] [SETUP] Page 9 of 13... - Page 10 SuzoHapp Video Topper 103-02XXXXXXXX Manual OSD GUI Control Table MAIN SUB MENU CONTROL MENU Brightness 50(0~100) Contrast 50(0~100) Picture Sharpness 2( 0 ~ 4) Color Status Management User(User, Warm, Normal, Cool) Picture 50(0~100) Color Green 50(0~100) PC ONLY Blue 50(0~100)
-
Page 11: Mounting Instructions
SuzoHapp Video Topper 103-02XXXXXXXX Manual 9. Mounting instructions The Video Topper can be mounted with the mounting feet at the bottom. The feet includes two M6 mounting bolts, with a space of 90mm or 125mm between the bolts. Changing between these two dimensions requires re-assembly of the feet (four M4 screws at the bottom). -
Page 12: Dimensions
SuzoHapp Video Topper 103-02XXXXXXXX Manual 10. Dimensions Page 12 of 13... -
Page 13: Accessories And Replacement Parts
SuzoHapp Video Topper 103-02XXXXXXXX Manual 11. Accessories and replacement parts Part number Description Power supply input 100/240V output 150-0072 12V 5A 22-0012-4 Power cable Euro lead 1.80M QL0025 Adh. 30 LED strip 12V RGB 5mtr Controller for RGB LED strip QL0064-1 (not for indiv.
