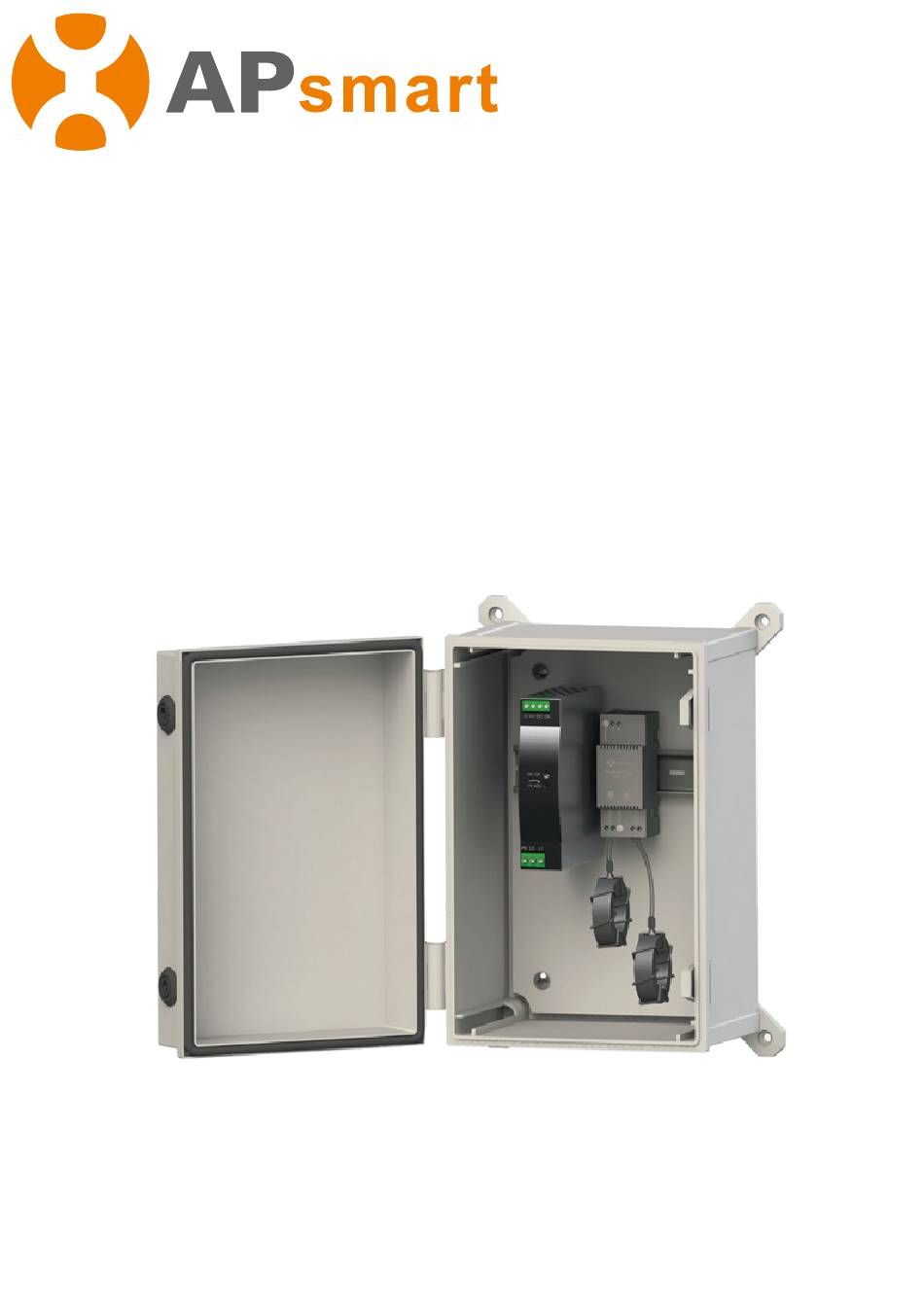

Transmitter-PLC Outdoor Kit
Quick Installation Guide
Rev1.9 2021/10/13
This installation guide is for customers who have purchased
Transmitter-PLC-Outdoor Kit. If you have not purchased our outdoor kit,
the following content is used as a reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transmitter-PLC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APsmart Transmitter-PLC

Summary of Contents for APsmart Transmitter-PLC

  • Page 1 Transmitter-PLC Outdoor Kit Quick Installation Guide Rev1.9 2021/10/13 This installation guide is for customers who have purchased Transmitter-PLC-Outdoor Kit. If you have not purchased our outdoor kit, the following content is used as a reference.
  • Page 2 • Mount Transmitter-PLC and power supply on DIN rail • Connect DC leads from power supply to transmitter-PLC • Connect dual core(Core 1 and Core 2) to transmitter-PLC Place rapid shutdown system label no more than 1m (3ft) from Transmitter or AC disconnect if not at same location.
  • Page 3 Transmitter-PLC Wiring Note: The waterproof jacket and related accessories are not configured before delivery and customers need to AC Wires for buy by themselves. Power Supply Homerun Only (+) or (-) through Core Grounding Note: 180/550Vac power supply isolation class I requires grounding.
  • Page 4 • DC cables through Core must be the same polarity(all positive or all negative) • Power LED should be lit and Signal LED should be blinking during operation • Verify that Core wiring is correct • Power cycle Transmitter-PLC if Signal LED is unlit Version:1.9...
  • Page 5 Outdoor Kit Drilling Guide Drilling Guide for .75" Conduit Single Core Dual Core 2x∅28 3x∅28 2x∅28 ∅28 Drilling Guide for 1" Conduit Single Core Dual Core Note: The Outdoor Kit was not punched before delivery and customer need to make it themselves according to the actual situation.
  • Page 6 600 Ericksen Ave NE, Suite 200 Seattle, WA 98110 TEL: +1-737-218-8486/+1-866-374-8538 EMAIL: support@APsmartGlobal.com APsmartGlobal.com Product information is subject to change without notice.
