Operating and
Service Manual
15S1G6
Model
10032117
Part Number
Serial Number
160 School House Road, Souderton, PA 18964 • 215-723-8181 • Fax 866-859-0582 • www.arworld.us

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15S1G6 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AR 15S1G6 Series

Summary of Contents for AR 15S1G6 Series

  • Page 1 Operating and Service Manual 15S1G6 Model 10032117 Part Number Serial Number 160 School House Road, Souderton, PA 18964 • 215-723-8181 • Fax 866-859-0582 • www.arworld.us...
  • Page 3 REGULATION (EC) 1907/2006 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 18 December 2006 concerning the Registration, Evaluation, Authorization and Restriction of Substances of Very High Concern Chemicals (SVHC) Supporting documentation is held by AR RF/Microwave Instrumentation’s Quality department in Pennsylvania, United States. Place of issue:...
  • Page 5 Instructions for European EMC Conformity WARNING It is the responsibility of the user of this equipment to provide electromagnetic shielding, filtering and isolation which is necessary for EMC compliance to Directive 2014/30/EU. The equipment must therefore be operated in a shielded area which provides a sufficient level of attenuation to meet the radiated emissions and immunity specifications.
  • Page 7 The caution symbol denotes a potential hazard. Attention must be given to the statement to prevent Your AR equipment may have more than one power supply cable. Use damage, destruction, or harm. only approved power cable(s). If you have not been provided with a Dangerous voltages are present.
  • Page 8 EQUIPMENT CONTAINING LASERS risk of serious injury due to unsafe AR Field Probes (FL/PL Series) and Field Analyzers (FA product handling should be a fundamental Series) are Class 1 laser products containing embedded consideration every user.
  • Page 9 Zur Vermeidung von Personen- oder Sachschäden gilt BEVOR SIE DAS GERÄT ANSCHLIESSEN es, die Hinweise zu beachten. Ihre AR-Ausrüstung hat möglicherweise mehr als ein Stromversorgungskabel. Gefährliche elektrische Spannungen sind vorhanden. Verwenden Sie nur zugelassene Stromkabel. Falls Sie kein Stromkabel oder Höchste Vorsicht ist geboten.
  • Page 10 Die meisten Geräte müssen während des Versands, der Montage und des Gebrauchs LASER-INFORMATION transportiert werden. Jeder Nutzer sollte sich AR - Feldsonden (FL/PL-Serie) und Feldanalysatoren (FA-Serie) über das Risiko von schweren Verletzungen sind Laserprodukte der Klasse 1 mit eingebetteten Klasse-4- durch unsachgemäße...
  • Page 11 électrode de mise à la Votre équipement AR peut disposer de plus d’un câble d’alimentation terre de protection. électrique. Utilisez uniquement un ou des câbles d’alimentation approuves.
  • Page 12 éliminer le risque injustifié de blessures causées par le levage est fournie par les méthodes de travail de NIOSH (publication Les sondes de champ AR (série FL/PL) et les analyseurs de n° 94-110) disponibles sur : champ (série FA) sont des produits laser de classe 1 contenant des lasers intégrés de classe 4.
  • Page 13 Er zijn gevaarlijke elektrische spanningen aanwezig. Wees uiterst voorzichtig. VOOR HET OPZETTEN VAN DE STROOM Uw AR-apparatuur kan meer dan een netvoedingskabel bezitten. Gebruik alleen goedgekeurde netvoedingskabel(s). Koopt een Wijst op een terminal aan die bedoeld is voor aansluiting netvoedingskabel die is goedgekeurd voor gebruik in uw land als u...
  • Page 14 APPARAAT DAT LASERS BEVAT distributie, de assemblage en het gebruik moeten worden behandeld, moet het risico AR-terreinsondes (FL/PL-serie) en terreinanalysatoren (FA- op ernstig letsel als gevolg van een serie) zijn laserproducten van klasse 1 met ingesloten onveilige behandeling van het product een klasse 4-lasers.

  • Page 15: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS ....................iii GENERAL INFORMATION ................1 General Description ....................1 Power Supplies ....................... 1 Specifications ......................1 OPERATING INSTRUCTIONS ................ 5 General ........................5 Amplifier Front and Rear Panels ................6 Local Operation ...................... 6 2.3.1 Power-up Sequence ....................
  • Page 16 Model 15S1G6 FIGURES Model 15S1G6 Front Panel ..................6 Model 15S1G6 Rear Panel ..................6 Typical Response @ 0dBm Input and -20 dBm Input ......... 24 Typical Response from the A3 Quad Amplifier Input to the Main RF Output ..25 Typical A2 Driver Quad Amplifier Response ............

  • Page 17: General Information

    (A11) Regulator board. Primary AC circuit protection is provided by the AC fuses in the Power Entry Module. SPECIFICATIONS Refer to the AR Data Sheet at the end of this section for detailed specifications. All voltage measurements referenced in this manual are Direct Current (DC) unless stated otherwise. Rev B...
  • Page 18 Model 15S1G6 Rev B...
  • Page 19 U.S. Export Administration Regu- are protected from over-temperature by re- lations. Diversion contrary to U.S. law is pro- moving the DC voltage to them if an over tem- hibited. AR RF/Microwave Instrumentation 160 School House Rd Souderton, PA 18964 215-723-8181 For an applications engi- neer call:800.933.8181...
  • Page 20 48.3 x 12.7 x 37.6 cm moved for rack mounting (22.5 lbs) 19.0 x 5.0 x 14.8 in To order AR Products, call 215.723.8181. For an applications engineer call:800.933.8181. Direct to Service call: 215.723.0275 or email: service@arworld.us For Faxing Orders:866.859.0582 (Orders Only Please) info@arworld.us...

  • Page 21: Operating Instructions

    2. OPERATING INSTRUCTIONS GENERAL Operation of the Model 15S1G6 broadband amplifier is simple. The input signal, whether swept or fixed in frequency, is fed into the jack marked INPUT and the amplifier output signal is taken from the jack labeled OUTPUT.

  • Page 22: Amplifier Front And Rear Panels

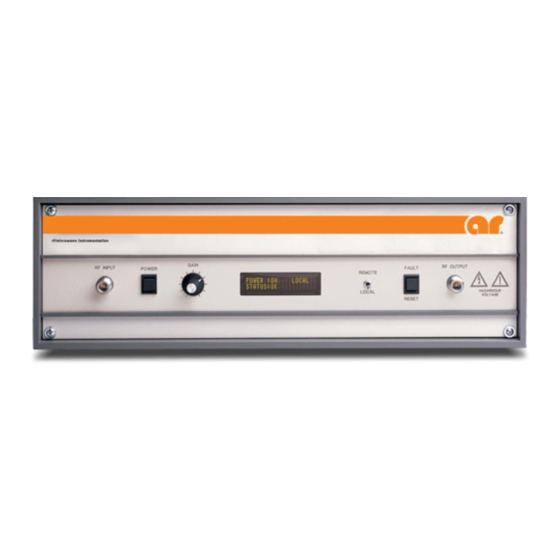

    Model 15S1G6 AMPLIFIER FRONT AND REAR PANELS Figure 2-1 shows the front panel of the Model 15S1G6 Broadband Microwave Amplifier. Figure 2-2 shows the rear panel of the Model 15S1G6 Broadband Microwave Amplifier. Figure 2-1. Model 15S1G6 Front Panel Figure 2-2. Model 15S1G6 Rear Panel LOCAL OPERATION 2.3.1 Power-up Sequence...

  • Page 23: Remote Communications

    Model 15S1G6 REMOTE COMMUNICATIONS This section describes remote operation of this product using the installed communications ports connected to a remote device such as a personal computer. All ports are active at all times, however only one port may be used at a time.

  • Page 24: Rs-232 Communications

    Model 15S1G6 2.4.2 RS-232 Communications The RS-232 port is a serial communications bus. All commands and queries through this port must be terminated with a <LF>. When a valid query is received, it is processed and the result is immediately transmitted back over the RS-232 interface.

  • Page 25: Usb Communications

    The connector type for this port is ST. This port can be used with either an AR IF7000 RS-232 to Fiber-Optic Interface or an AR IF7001 USB to Fiber-Optic Interface. Note that these devices use SMA connectors so a fiber-optic cable is needed with ST connectors on one end and SMA connectors on the other.

  • Page 26: Remote Commands

    Lantronix Ethernet devices. This list of found devices will include any connected AR Ethernet devices. By selecting one of the connected devices from the list, its IP address and subnet mask can be changed along with a number of other settings.
  • Page 27 Model 15S1G6 2.4.5.1 Power On/Off This command controls the power on/off state of the amplifier. Syntax: Parameters: State(x): 0 = power off 1 = power on Response Format: None (No query for this command) Example: To turn the power on, send the following command: P1<LF> To turn the power off, send the following command: P0<LF>...
  • Page 28 = model designation n = firmware revision Example: To get the identity of the amplifier, send the following command: *IDN?<LF> Response: AR-RF/MICROWAVE-INST,15S1G6,1.0<LF> 2.4.5.5 IO Board Firmware Revision Query to get the firmware revision of the IO Board. Syntax: *IOB?
  • Page 29 Model 15S1G6 2.4.5.6 State Query to find the state of the amplifier. Syntax: STATE? Parameters: None STATE=<space>xyza Response Format: Where: x, y, z, and a are each an ASCII character representing a hexadecimal character. They can be 0 to 9 or A to F. Each hexadecimal character represents a 4-bit binary number.
  • Page 30 Model 15S1G6 2.4.5.7 Faults Query to find the faults that have occurred with the amplifier. Syntax: FSTA? Parameters: None FSTA=<space>00xx Response Format: Where: xx = 00 to 06 (Hexadecimal) Description No Fault Interlock Therm Driver Therm Final Amp A2 Amp A3 Example: To find out what faults have occurred, send the following query.

  • Page 31: Theory Of Operation

    3. THEORY OF OPERATION INTRODUCTION The Model 15S1G6 RF amplifier consists of a 1.0–6 GHz RF amplifier assembly. The RF amplifier assembly consists of a Pre-Amplifier (Pre-Amp), a Driver Amplifier (Driver Amp), a Quadrature-Coupled Amplifier (Quad Amp) used as a driver and a Quad Amp used as a final amplifier stage. The power supply section consists of an AC input filter with fuses and a switch, a switching power supply, and a regulator circuit.

  • Page 32: A2 Driver Amp

    Model 15S1G6 3.2.2 A2 Driver Amp The Driver Amp is assembled on thin film substrates. It has two (2) GaN amplifier sections. Each section is input and output DC isolated by coupling capacitors. A 90˚ quad coupler combines the RF outputs. 50Ω termination resistors absorb any difference signals and help to improve the input and output VSWR of the module.

  • Page 33: Control System

    Model 15S1G6 CONTROL SYSTEM 3.4.1 A5 Control/Fault Board (Schematic #10025460) The A5 Control/Fault board consists of two 16-bit microcontrollers and about nine other ICs that monitor and indicate the status of the amplifier. Power is supplied using only a single 5-volt power supply. The board offers the following: Feature Quantity...
  • Page 34 Model 15S1G6 Rev B...

  • Page 35: Maintenance

    Shipping instructions are as follows. To return an item, contact AR Customer Service for an RMA number and shipping instructions. Returns from outside the United States are not permitted without prior authorization. If shipping from outside of the United States, closely follow all directions on the RMA form for return shipping and marking.

  • Page 36: Troubleshooting

    Model 15S1G6 TROUBLESHOOTING CAUTION: The microwave transistors used in the Model 15S1G6 amplifier are GaAs FETs. These devices are very reliable when installed in a suitable circuit, but they can be easily damaged by improper troubleshooting or handling techniques. The gate junctions of the GaAs FETs have a high input impedance and are susceptible to static damage or damage due to the use of an ungrounded soldering iron.

  • Page 37: Power On Indication Doesn't Display On Front Panel Vacuum Fluorescent Display (Vfd) When Power Switch Is Depressed (Schematic Diagram No. 10032039)

    <0.1V when S1 is depressed. S1 is normally open; it is closed only when it is depressed. The amplifier should change state every time the POWER switch is depressed. 8. If all voltages are correct and the unit still does not operate, contact AR to arrange for repair or replacement of the A5 Control/Fault Board.

  • Page 38: The Unit Cannot Be Operated Remotely

    Model 15S1G6 4.3.2 The Unit Cannot Be Operated Remotely 1. Verify that the front panel LOCAL/REMOTE switch is set to the REMOTE position. 2. Verify that the unit operates locally by resetting the LOCAL/REMOTE switch to the LOCAL position; if the unit does not operate locally, see 4.3.1 of this manual.

  • Page 39: Ps1 Fault (Schematic Diagram No. 10032039)

    Model 15S1G6 4.3.5 PS1 Fault (Schematic Diagram No. 10032039) The PS1 power supply has DC OK output which is normally low (< 0.1V) to the A5 J13, pin 29. If any of the PS1 outputs fail, this output will go high (> 4.0V) and inhibit the A1 Pre-Amplifier. 4.3.6 Amplifier Faults (Schematic Diagram No.
  • Page 40 Model 15S1G6 4.3.8 Low or No Power Output (RF Test) (Schematic Diagram No. 10032039) NOTE: The DC Tests specified in Section 4.3.7 should be completed before conducting the RF tests specified in the following sections. 1. The Model 15S1G6’s typical gain response at 0 dBm input and -20 dBm input is shown in Figure 4-1. The actual gain may vary considerably from that shown in Figure 4-1 but should be ≥...

  • Page 41: Typical A2 Driver Quad Amplifier Response

    Model 15S1G6 2. With the W3 cable disconnected from the input of A3, check the response from the input of A3 to the Main RF output of the amplifier. Typical A3 Quad Amp Response is shown in Figure 4-2. Figure 4-2. Typical Gain Response from the A3 Quad Amplifier Input to the Main RF Output 3.

  • Page 42: Typical A1 Pre-Amp Response

    Model 15S1G6 4. If the A2 and A3 RF stages are normal, check the response of the A1 Pre-Amplifier. The gain response should be approximately 28–32 dB. See Figure 4-4 for typical A1 Pre-Amp response. Figure 4-4. Typical A1 Pre-Amp Response NOTE: Flatness may vary due to final alignment.
  • Page 43 These modules are not field-repairable and should never be opened outside of AR’s Microelectronics Lab. The modules in these product lines have a security label on two sides of the modules between the housing and lid/cover. If the security label is removed and or cut, the warranty of the module will be voided.
